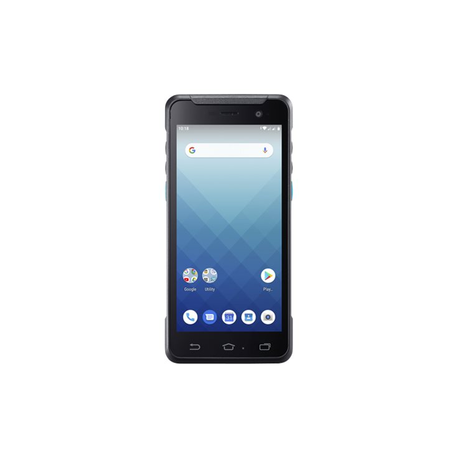

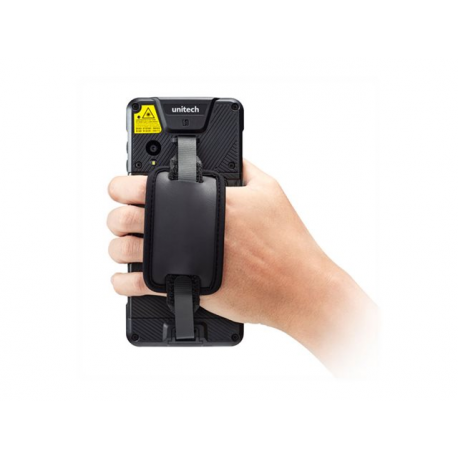

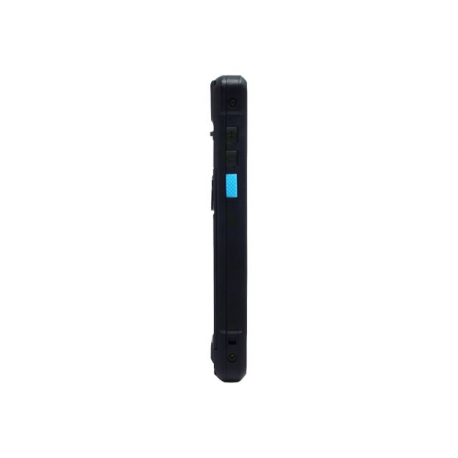

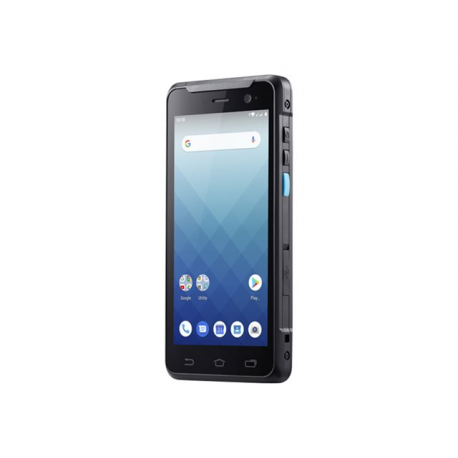

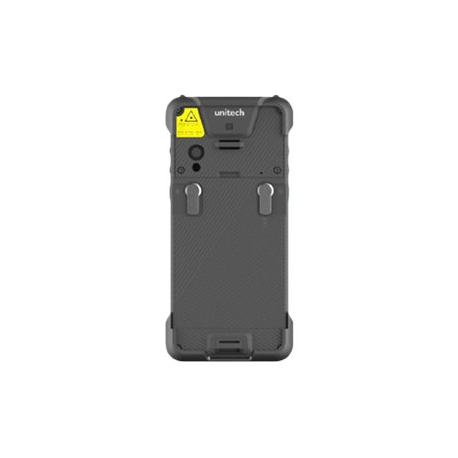

Unitech PA760 - Data collection terminal - rugged - Android 9.0 (Pie) - 64 GB - 5.45" colour TFT (1440 x 720) - rear camera + front camera - barcode reader - (2D imager) - USB host - microSD slot - Wi-Fi 5, NFC, Bluetooth - 4G
images are for illustrative purposes only
New
Article: 1671967 Intrastat: 84713000 SKU: PA760-WALFRMBG
Pricing and stock details are available to registered users only.
| Product Type | Data collection terminal - rugged |
| Operating System | Android 9.0 (Pie) |
| Type | 5.45" colour TFT |
| Resolution | 1440 x 720 |
| Touchscreen | Multi-Touch |
| Image Brightness | 450 cd/m² |
| Features | 5-point multi-touch, Corning Gorilla glass 3, capacitive touch screen |
| Processor | Qualcomm Snapdragon 660 |
| Processor Clock Speed | 2.2 GHz |
| Number of Cores | 8-core |
| Storage | 64 GB |
| RAM | 4 GB |
| Max Supported Capacity | 128 GB |
| Cellular Technology | 4G |
| Cellular Protocols | FDD LTE, TDD LTE |
| Wireless Connectivity | 802.11a/b/g/n/ac, NFC, Bluetooth 5.0 |
| Security Protocols & Features | WEP, WPA, WPA2, WPA2-PSK |
| Sensor Resolution | 16 Megapixel |
| Features | Phase Detect Auto-Focus (PDAF) |
| Sensor Resolution | 5 Megapixel |
| Receiver | GPS/GLONASS/Galileo/BeiDou |
| Audio | Two microphones, speaker |
| Type | Touch-screen, keypad |
| Security Devices | Fingerprint reader |
| Barcode Reader | Yes |
| Scan Element Type | 2D imager |
| Barcodes | QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, TLC39, Australian Post, Japanese Post, Kix (Netherlands) Post, Dutch Post, UK Post, Micro QR code, US Planet, US Postnet, RSS, Composite |
| Frequency | 13.56 MHz |
| RFID Specification | ISO 15693, ISO 14443A, ISO 14443B |
| Preloaded Software | Mobolink |
| Expansion Slots | 1 x microSD ¦ 2 x Nano-SIM card |
| Interfaces | 1 x USB-C ¦ 1 x headphones mini jack (3.5mm) ¦ 1 x POGO pin |
| USB Host | Yes |
| Capacity | 4000 mAh |
| Sensors | Ambient light sensor, proximity sensor, gyro sensor, G-sensor |
| Features | Drop-resistant, 1.5 m drop to concrete resistant |
| Vibrating Alert | Yes |
| Included Accessories | Power adapter, protective bumper |
| Cables Included | USB cable |
| Compliant Standards | VCCI, BSMI, CCC, DOC, FCC, RoHS, TELEC, BQB, N-mark, IP67, IP65, SRRC, NCC, GMS, NBTC, MIL-STD-810G 511.4 Procedure II |
| Localisation | Worldwide (excluding China, Europe, Russia) |
| Width | 7.5 cm |
| Depth | 1.74 cm |
| Height | 16.3 cm |
| Weight | 300 g |
| Service & Support | Limited warranty - 1 year |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -30 °C |
| Max Storage Temperature | 60 °C |
