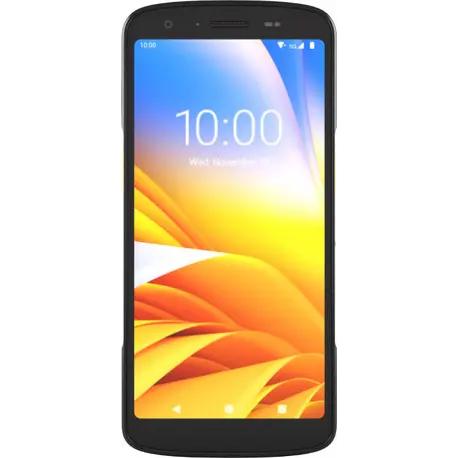

Zebra TC22 - Data collection terminal - rugged - Android - 64 GB - 6.5" colour (1080 x 2160) - rear camera - barcode reader - (2D imager) - USB host - microSD slot - NFC, Bluetooth, Wi-Fi 6 - 5G
Manufacturer
•ZEBRA
Reference
•WLMT0-T22B6ABC2-NA
Article
•4189951
Intrastat
•84713000
Shipping weight
•0.236 kg
6.5"6 GBAndroid2D
Product Type
Data collection terminal - rugged
Operating System
Android
Type
6.5" colour - LED backlight
Resolution
1080 x 2160
Touchscreen
Multi-Touch
Features
Corning Gorilla glass, 450 NIT indoor display
Processor
Qualcomm 5430
Processor Clock Speed
2.1 GHz
Number of Cores
6-core
Storage
64 GB
RAM
6 GB
Supported Flash Memory Cards
microSD
Max Supported Capacity
2 TB
Cellular Technology
5G
Cellular Protocols
UMTS, 4G LTE, 5G
Wireless Connectivity
NFC, Bluetooth 5.2, 802.11a/b/g/n/ac/d/h/i/k/r/v/ac/ax
Security Protocols & Features
LEAP, WEP, TKIP, AES, EAP-TTLS, EAP-TLS, WPA2-Enterprise, PAP, MS-CHAP, MS-CHAPv2, PEAPv0, PEAPv1, EAP-AKA, EAP-GTC, IPv6 support, EAP-PWD, WPA-Enterprise, GCMP, WPA3-Enterprise, WPA3-SAE, WPA3-OWE, IPv4 support, WPA2-Personal
Sensor Resolution
16 Megapixel
Sensor Resolution
5 Megapixel
Receiver
GPS/GLONASS/Galileo/BeiDou/QZSS
Audio
Microphone, two speakers
Type
Touch-screen
Barcode Reader
Yes
Scan Element Type
2D imager
RFID Specification
ISO 15693, Felica, ISO 14443A, ISO 14443B
Preloaded Software
Google Mobile Services
Expansion Slots
1 x microSD
Interfaces
1 x USB-C 3.1
1 x 2 pin connector
USB Host
Yes
Technology
Lithium Ion
Capacity
3800 mAh
Sensors
Ambient light sensor, proximity sensor, magnetometer, 3-axis accelerometer
Features
Interactive Sensor Technology (IST), capacitive touch screen, Over-the-Air (OTA), push-to-talk speaker, SE4710 imager, 2x2 MiMo function, ESD protection up to 8 kV (direct), ESD protection up to 15 kV (air), ESD protection up to 8 kV (indirect)
Vibrating Alert
Yes
Compliant Standards
Bluetooth Class 2, RoHS, IP68, IP65, MIL-STD-810H, ROHS Directive 2011/65/EU, 2015/863, REACH SVHC 1097/2006
Localisation
North America
Width
7.63 cm
Depth
1.25 cm
Height
16.5 cm
Weight
236 g
Service & Support
Limited warranty - 1 year
Min Operating Temperature
-10 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
