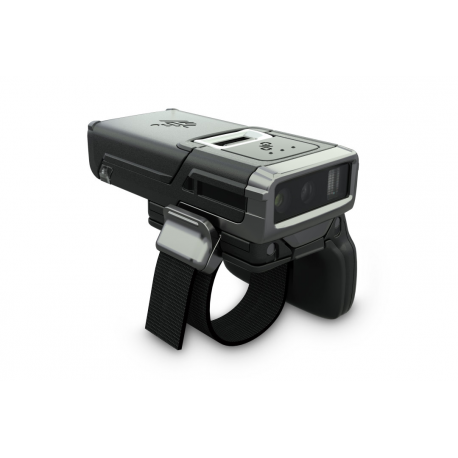

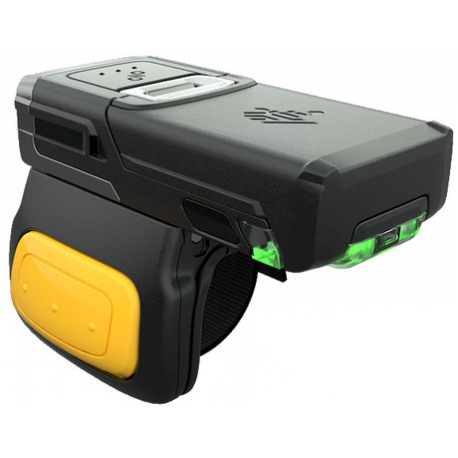

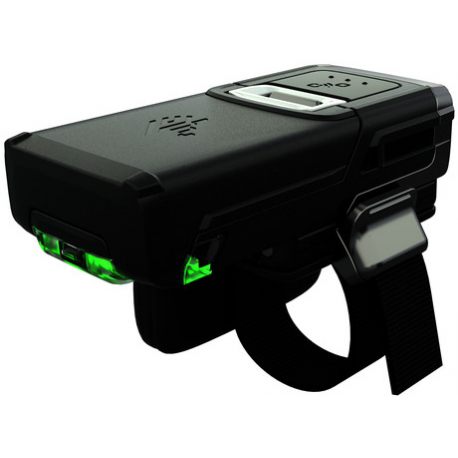

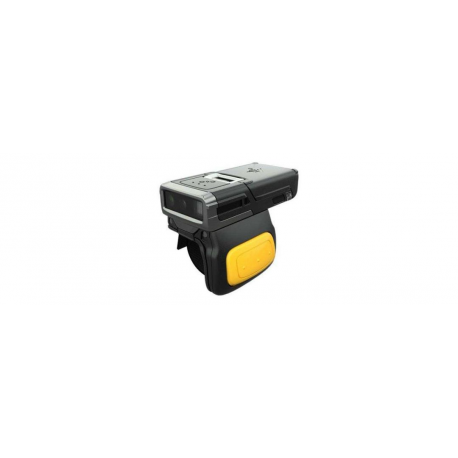

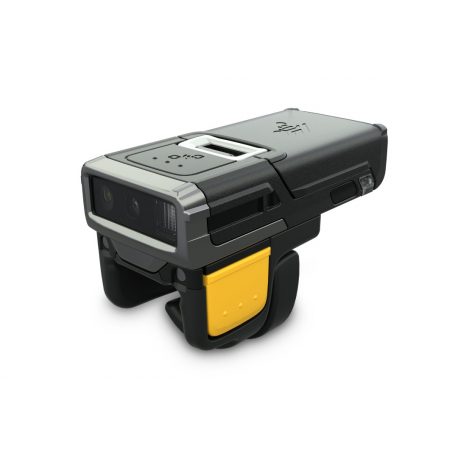

Zebra RS5100 - Barcode scanner - wearable - SR - 2D imager - decoded - Bluetooth 5.2
images are for illustrative purposes only
New
Article: 3043734 Intrastat: 84713000 SKU: RS51C0-TBBHWR
Pricing and stock details are available to registered users only.
| Type | Barcode scanner - wearable |
| Localisation | Worldwide |
| Interface Type | Bluetooth 5.2 |
| Minimum Bar Width | 3 mil |
| Scan Engine Focus Range | Standard Range (SR) |
| Scan Element Type | 2D imager - laser |
| Sensor Resolution | 1280 x 960 |
| Light Source Wave Length | 655 nm |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Decode Capability | Code 39, Code 128, Code 93, NW-7, Code 11, MSI, UPC, EAN/JAN, Korean 3 of 5, GS1 DataBar, Base 32, PDF417, MicroPDF417, Composite Codes, TLC39, Aztec, Data Matrix, MaxiCode, QR code, Micro QR code, Chinese Sensible Code, Postal Code, OCR-A, OCR-B |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | LED indicator, beeper, vibration |
| Features | SE4770 imaging engine, single finger wearing, Serial Port Profile (SPP), Human Interface Device Profile (HID), 15 kV ESD protection (air discharge), 8 kV ESD protection (contact discharge), NFC pairing, rugged |
| Wireless Connectivity | Bluetooth 5.2 LE, NFC |
| Included Accessories | Back of hand mount |
| Compliant Standards | IEC 60529 IP65, RoHS 2011/65/EU Amendment 2015/863, REACH 2006/1907 |
| Battery | 1 x Lithium Ion |
| Width | 2.8 cm |
| Depth | 2.1 cm |
| Height | 6.1 cm |
| Weight | 70 g |
| Service & Support | Limited warranty - 1 year |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.8 m to concrete |
