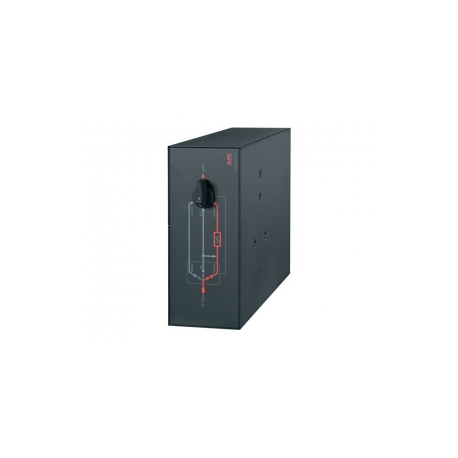

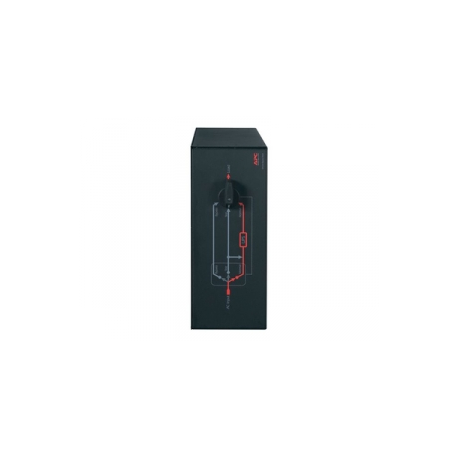

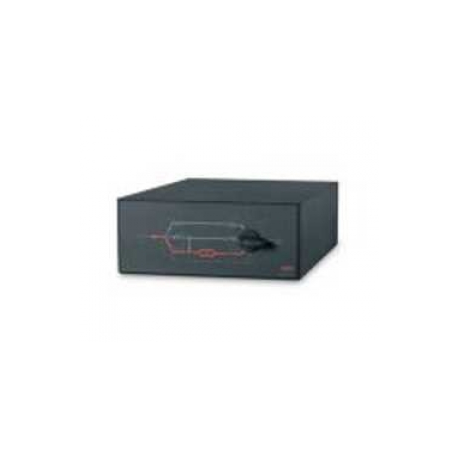

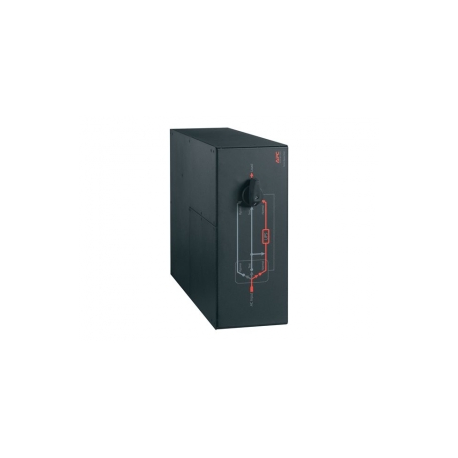

APC Service Bypass Panel - Bypass switch (rack-mountable) - AC 230 V - output connectors: 10 - black - for Smart-UPS RT 10000VA

images are for illustrative purposes only

Condition: New

Article: 475804 Intrastat: 85437090 SKU: SBP10KRMI4U

Pricing and stock details are available to registered users only.

19 inch rack-mountable
Meets UL requirements
Quick transfer rate
Wrap around system bypass

APC sets the standard in its industry for quality, innovation and support. Its comprehensive solutions, which are designed for both home and corporate environments, improve the manageability, availability and performance of sensitive electronic, network, communications and industrial equipment of all sizes. The mission of APC is to improve the manageability, availability, and performance of information and communication systems through rapid development and delivery of innovative solutions to real customer problems.

This product is designed for 230V Smart-UPS RT 7.5-10kVA.

Device Type	Bypass switch - rack-mountable
Colour	Black
Input Voltage	AC 230 V
Frequency Required	50/60 Hz
Input Connectors	Hardwire

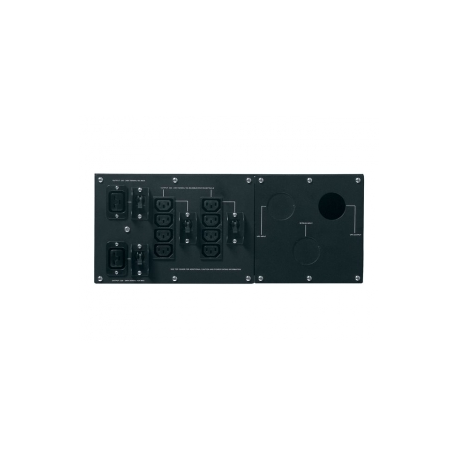

Power Output Connectors Details	8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Output Voltage	AC 230 V
Rack Mounting Kit	Included
Compliant Standards	CSA, GOST, EN 60950, UL 1778, IEC 60950
Service & Support	Limited warranty - parts - 2 years
Min Operating Temperature	-20 °C
Max Operating Temperature	50 °C
Min Storage Temperature	-40 °C
Max Storage Temperature	65 °C
Humidity Range Operating	0 - 95%
Humidity Range Storage	0 - 95%
Width	43.2 cm
Depth	67.3 cm
Height	17.8 cm
Weight	20.9 kg
Designed For	APC Smart-UPS RT 10000VA

APC Service Bypass Panel - Bypass switch (rack-mountable) - AC 230 V - output connectors: 10 - black - for Smart-UPS RT 10000VA
