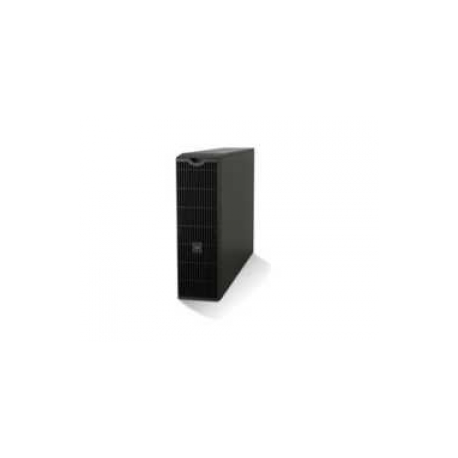

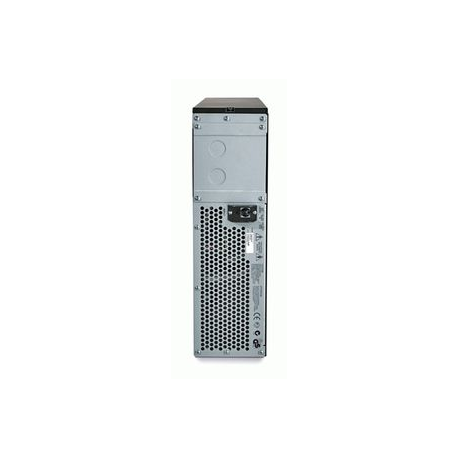

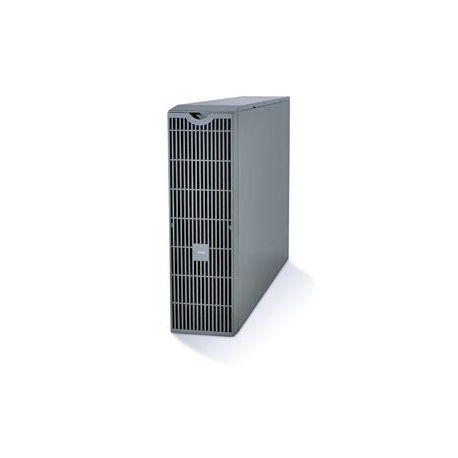

APC Smart-UPS RT 5000 - Transformer - AC 230 V - 5000 VA - output connectors: 3 - 3U - 19" - black - for P / N: SMT30002U-BR, SMX3000HV-BR, SMX3000LV2U-BR, SMX750INC, SRC10KUXICH, SURT3000XLIX438
APC Smart-UPS RT 5000 - Transformer - AC 230 V - 5000 VA - output connectors: 3 - 3U - 19" - black - for P / N: SMT30002U-BR, SMX3000HV-BR, SMX3000LV2U-BR, SMX750INC, SRC10KUXICH, SURT3000XLIX438
Manufacturer
•APC
Reference
•SURT002
Article
•475805
Intrastat
•85437090
Shipping weight
•56.8 kg
Smart-UPS RT is a family of high performance UPSs for servers, networking equipment, telecommunication systems, industrial and medical equipment, and other mission-critical applications. Smart-UPS RT UPSs are based on the field-proven, industry-leading Smart-UPS functionality, but feature double conversion on-line topology, which delivers tight voltage and frequency regulation, zero transfer time to and from battery, and input power factor correction. While offering advanced performance and high availability features, the Smart-UPS RT can be managed using PowerChute software, as well as an array of SmartSlot accessories. Smart-UPS RT provides battery back up to the load through the use of internal batteries. However, an unlimited number of external battery packs can be added to meet desired levels of runtime. All Smart-UPS RTs and battery packs ship in tower configuration, while easily converting to the 19" rack-mount mode with the addition of an APC Rail Kit.<br /><br /><p> </p>
Device Type
Transformer - external
Height (Rack Units)
3U
Rack Size
19"
Colour
Black
Input Voltage
AC 230 V
Input Voltage Range
AC 220 - 240 V
Frequency Required
50/60 Hz
Input Connectors
3 x hardwire
Power Output Connectors Details
3 x hardwire
Output Voltage
AC 230 V
Power Capacity
5000 VA
Circuit Protection
Circuit breaker
Rack Mounting Kit
Optional
Compliant Standards
FCC Class A certified, UL, VCCI, C-Tick, BSMI, cUL, EN 60950, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5
Service & Support
Limited warranty - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Min Storage Temperature
-25 °C
Max Storage Temperature
65 °C
Humidity Range Operating
5 - 95%
Humidity Range Storage
5 - 95%
Width
43.2 cm
Depth
66 cm
Height
13 cm
Weight
56.8 kg
Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACF003, ACF201BLK, ACF400, AP7950, AR203A, AR204A, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2500, AR2507, AR2580, AR2587, AR3100, AR3100G, AR3100SP, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140W, AR3150, AR3150SP, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617,
