RAM GDS - Power converter / charger - 24-60V DC input (9V DC output) - 3.5 A (DC jack 5.5 x 2.5 mm)
Manufacturer
•RAM MOUNT
Reference
•RAM-GDS-CHARGE-V18U
Article
•3536613
Shipping weight
•0.136 kg
Total quantity in stocks
•1
Nearest delivery
•29.09.2026
Manufacturer price
•60.46 €

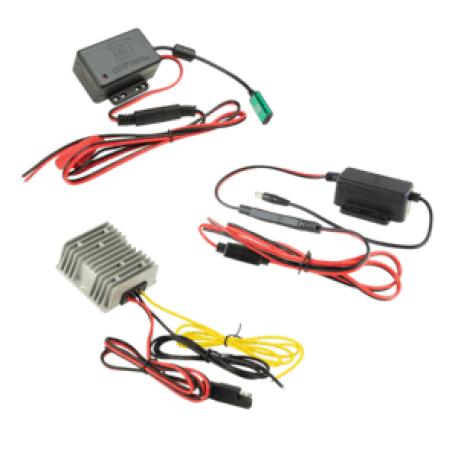

The GDS® Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM® or GDS® DC powered docking station.
When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components.
This hardwire charger has an input of 24-60VDC input, 9VDC output making it ideal for forklift mounts and material handling applications.
Product features - RAM-GDS-CHARGE-V18U:
Input voltage: 24-60V DC
Output voltage: 9V DC
Output current: 3,5A max.
Input connector: Male 5.5mm OD x 2.5mm ID Barrel Connector
Input cable length: ca. 120 cm
Output cable length: ca. 20 cm
Operating temperature: -10°C - +70°C
Storage temperature: -40°C - +70°C
Integrated protection against overvoltage, short circuit & reverse polarity
Certifications - FCC, IC, UKCA, CE, RCM, WEEE, E-Mark, RoHS, 18AWG, IP66 and SAE J-1113-5a
Product Type
Power converter / charger
Weight
136 g
Voltage Required
DC 24 - 60 V
Input Connectors
2-pole flat marine connector
Input Connectors Qty
1
Voltage Provided
DC 9 V
Output connectors
Power DC jack 5.5 mm (ID: 2.5 mm)
Max Electric Current
3.5 A
Features
Short circuit protection, over voltage protection, moisture resistant, reversed polarity protection circuit
Packaging Type
Poly bag
Cables Included
Power DC jack cable - 20 cm ¦ Power cable - 1.2 m
Compliant Standards
RoHS, WEEE, SAE J1113-5, FCC, UKCA, IC, RCM
Service & Support
Limited warranty - 3 years
