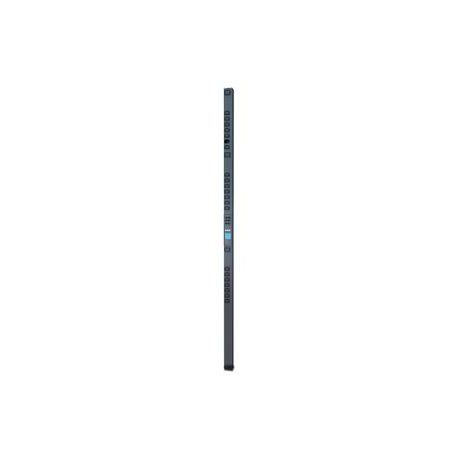

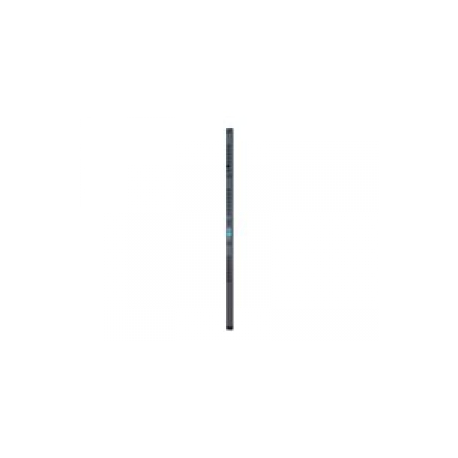

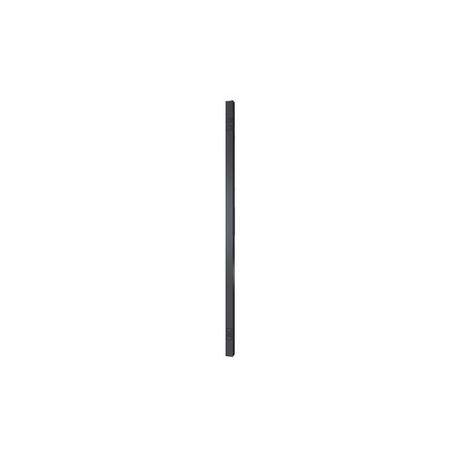

APC Metered-by-Outlet Rack PDU 2G - Power distribution unit (rack-mountable) - AC 200 / 208 / 230 V - Ethernet - input: IEC 60309 - output connectors: 24 - 0U - black - for P / N: SMX1500RMNCUS, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10RMXLIX806, SRT5KRMXLW-TW

APC Metered-by-Outlet Rack PDU 2G - Power distribution unit (rack-mountable) - AC 200 / 208 / 230 V - Ethernet - input: IEC 60309 - output connectors: 24 - 0U - black - for P / N: SMX1500RMNCUS, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10RMXLIX806, SRT5KRMXLW-TW

Manufacturer
SCHNEIDER
Reference
AP8459EU3
Article
1270801
Intrastat
85044090
Shipping weight
9.03 kg
<ul><li>Metering-by-outlet capability</li><li>Network management capabilities</li><li>Alarm thresholds</li><li>Local current monitoring display</li><li>Load indicator LED</li><li>Flash upgradeable</li><li>Integrates with StruxureWare Data Center Expert</li></ul> APC Metered by Outlet Rack Power Distribution Units (PDUs) provide individual outlet power metering to enable energy optimization and circuit protection. Current metering provides real-time remote monitoring of connected loads. Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.<br /><br /><p> </p>

All offers are visible after login.

Manufacturer
SCHNEIDER
Reference
AP8459EU3
Article
1270801
Intrastat
85044090
Shipping weight
9.03 kg
<ul><li>Metering-by-outlet capability</li><li>Network management capabilities</li><li>Alarm thresholds</li><li>Local current monitoring display</li><li>Load indicator LED</li><li>Flash upgradeable</li><li>Integrates with StruxureWare Data Center Expert</li></ul> APC Metered by Outlet Rack Power Distribution Units (PDUs) provide individual outlet power metering to enable energy optimization and circuit protection. Current metering provides real-time remote monitoring of connected loads. Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.<br /><br /><p> </p>

Device Type
Power distribution unit - rack-mountable
Height (Rack Units)
0U
Colour
Black
Input Voltage
AC 200/208/230 V
Input Voltage Range
AC 100 - 240 V
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60309
Power Output Connectors Details
21 x power IEC 60320 C13 ¦ 3 x power IEC 60320 C19
Output Voltage
AC 230 V
Max Electric Current
16 A
Remote Management Interface
Ethernet
Remote Management Protocol
SNMP, Telnet
Interfaces
1 x management (Ethernet) - RJ-45
Cables Included
Power cable
Rack Mounting Kit
Included
Features
LCD display, LED indicators, firmware upgradable
Compliant Standards
UL, EN 61000-3-2, VDE, EN 61000-3-3, EN55024, EN55022 Class A, RoHS, FCC Part 15 A, REACH, VCCI Class A
Service & Support
Limited warranty - 2 years
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 95%
Width
5.6 cm
Depth
5.1 cm
Height
182.9 cm
Weight
6.76 kg
Shipping Width
16.3 cm
Shipping Depth
11.7 cm
Shipping Height
203.7 cm
Shipping Weight
9.03 kg
Designed For
P/N: AP5607, AP7950B, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3105, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3150SP, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3180G, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, NBES0302, NBPD0160A, NBPD0171, NBPD0172, NBPD0180, NBWL0355A, NBWL0356A, SMC1000, SMC1000-2U, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC1500, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC2000I-2U, SMC3000RMI2U, SMT1500RM1U
