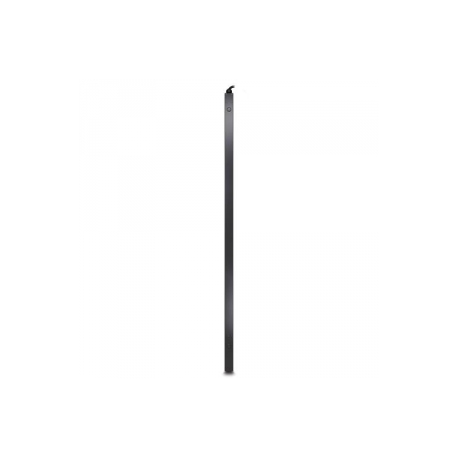

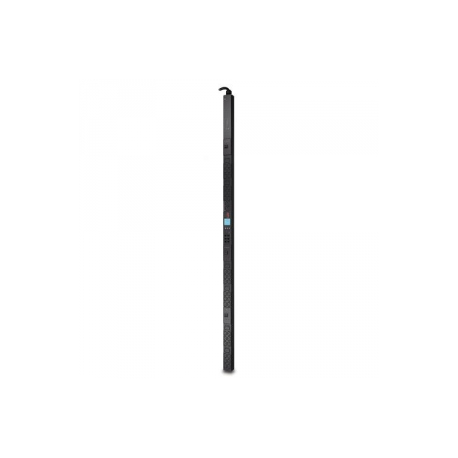

APC Metered Rack PDU - Power distribution strip (rack-mountable) - AC 208 V - 8.6 kW - input: NEMA L21-30 - output connectors: 44 (IEC 60320 C13, IEC 60320 C19, NEMA 5-20) - 0U - black - for P / N: SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT5KRMXLW-TW

APC Metered Rack PDU - Power distribution strip (rack-mountable) - AC 208 V - 8.6 kW - input: NEMA L21-30 - output connectors: 44 (IEC 60320 C13, IEC 60320 C19, NEMA 5-20) - 0U - black - for P / N: SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT5KRMXLW-TW

Manufacturer
SCHNEIDER
Reference
AP8865
Article
1215843
Intrastat
85044090
Shipping weight
9.2 kg
<ul><li>Remote management capabilities</li><li>Local current monitoring display</li><li>Alarm thresholds</li><li>Load indicator LED</li><li>Integrates with StruxureWare data center expert</li><li>Flash upgradeable</li><li>Single input power source</li></ul> APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow data center managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure web, SNMP, or telnet interfaces which are complimented by APC centralized management platforms using InfraStruxure central, operations, capacity, and energy efficiency.<br /><br /><p> </p>

All offers are visible after login.

Manufacturer
SCHNEIDER
Reference
AP8865
Article
1215843
Intrastat
85044090
Shipping weight
9.2 kg
<ul><li>Remote management capabilities</li><li>Local current monitoring display</li><li>Alarm thresholds</li><li>Load indicator LED</li><li>Integrates with StruxureWare data center expert</li><li>Flash upgradeable</li><li>Single input power source</li></ul> APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow data center managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure web, SNMP, or telnet interfaces which are complimented by APC centralized management platforms using InfraStruxure central, operations, capacity, and energy efficiency.<br /><br /><p> </p>

Device Type
Power distribution strip - rack-mountable
Height (Rack Units)
0U
Colour
Black
Input Voltage
AC 208 V
Frequency Required
50/60 Hz
Input Connectors
Power NEMA L21-30
Power Output Connectors Details
36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 ¦ 2 x power NEMA 5-20
Output Voltage
AC 208 V
Max Electric Current
30 A
Power Capacity
8.6 kW
Circuit Protection
Circuit breaker
Remote Management Protocol
SNMP, Telnet, HTTP
Interfaces
1 x management
Cables Included
Power cable 1.8 m ¦ Serial cable - external
Rack Mounting Kit
Included
Features
LCD display, current meter, LED indicators, overload protection
Compliant Standards
CSA C22.2, RoHS, UL 60950-1
Service & Support
Limited warranty - 2 years
Min Operating Temperature
5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 95%
Width
5.6 cm
Depth
4.6 cm
Height
179 cm
Weight
7.6 kg
Shipping Width
16.2 cm
Shipping Depth
10.7 cm
Shipping Height
200 cm
Shipping Weight
9.2 kg
Designed For
P/N: AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3105, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3140G, AR3140W, AR3150SP, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3180G, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340G, AR3340W, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBES0302, NBPD0160A, NBPD0180, NBWL0355A, NBWL0356A, SMC1000, SMC1000-2U, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC1500, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC
