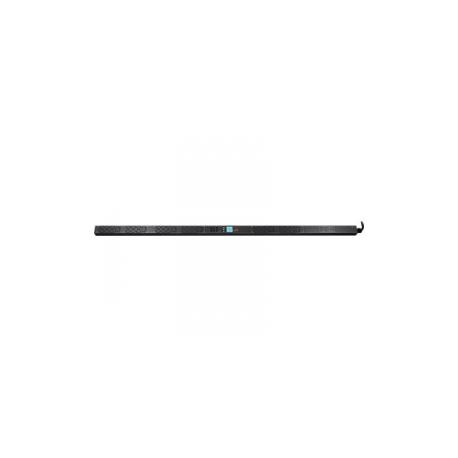

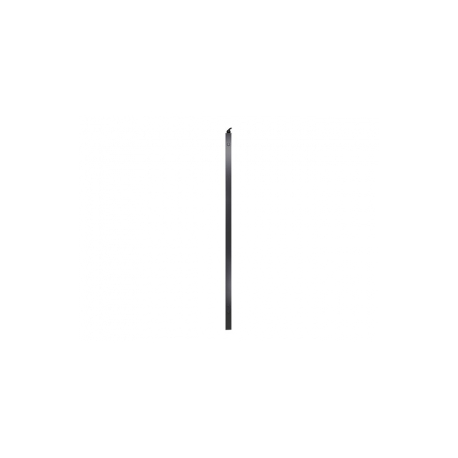

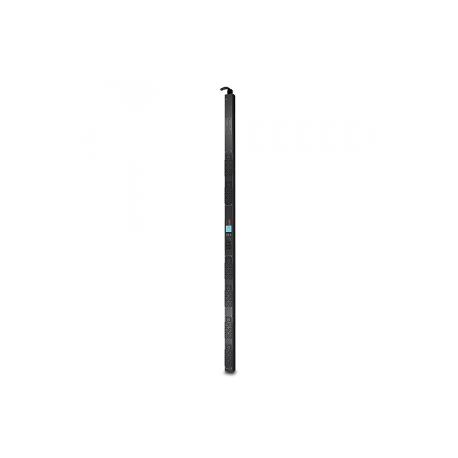

APC Metered Rack PDU - Power distribution strip (rack-mountable) - AC 400 V - 11 kW - Ethernet 10 / 100, RS-232 - output connectors: 42 (IEC 60320 C13, IEC 60320 C19) - 0U - black - for P / N: SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT5KRMXLW-TW

APC Metered Rack PDU - Power distribution strip (rack-mountable) - AC 400 V - 11 kW - Ethernet 10 / 100, RS-232 - output connectors: 42 (IEC 60320 C13, IEC 60320 C19) - 0U - black - for P / N: SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT5KRMXLW-TW

Manufacturer
APC
Reference
AP8881
Article
485776
Intrastat
85044090
Shipping weight
8.88 kg
Total quantity in stocks
10
Nearest delivery
19.03.2026
<ul><li>Remote management capabilities</li><li>Local current monitoring display</li><li>Alarm thresholds</li><li>Load indicator LED</li><li>Integrates with StruxureWare data center expert</li><li>Flash upgradeable</li><li>Single input power source</li></ul> APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow data center managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure web, SNMP, or telnet interfaces which are complimented by APC centralized management platforms using InfraStruxure central, operations, capacity, and energy efficiency.<br /><br /><p> </p>

All offers are visible after login.

Manufacturer
APC
Reference
AP8881
Article
485776
Intrastat
85044090
Shipping weight
8.88 kg
Total quantity in stocks
10
Nearest delivery
19.03.2026
<ul><li>Remote management capabilities</li><li>Local current monitoring display</li><li>Alarm thresholds</li><li>Load indicator LED</li><li>Integrates with StruxureWare data center expert</li><li>Flash upgradeable</li><li>Single input power source</li></ul> APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow data center managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure web, SNMP, or telnet interfaces which are complimented by APC centralized management platforms using InfraStruxure central, operations, capacity, and energy efficiency.<br /><br /><p> </p>

Device Type
Power distribution strip - rack-mountable
Height (Rack Units)
0U
Colour
Black
Input Voltage
AC 400 V
Frequency Required
50/60 Hz
Input Connectors
Power IEC 60309 16A, power IEC 60309 20A
Power Output Connectors Details
36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19
Output Voltage
AC 230 V
Power Capacity
11 kW
Circuit Protection
Circuit breaker
Remote Management Interface
Ethernet 10/100, RS-232
Remote Management Protocol
SNMP, Telnet, HTTP
Interfaces
1 x management (Ethernet) - RJ-45 ¦ 1 x management (RS-232)
Cables Included
Power cable 1.8 m ¦ Serial cable - external
Rack Mounting Kit
Included
Features
LCD display
Compliant Standards
VDE, IEC 60950, CSA 22.2 No. 60950, RoHS, UL 60950-1, REACH
Service & Support
Limited warranty - 2 years
Min Operating Temperature
5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 95%
Width
5.6 cm
Depth
4.4 cm
Height
179 cm
Weight
6.4 kg
Shipping Width
16.2 cm
Shipping Depth
10.7 cm
Shipping Height
200 cm
Shipping Weight
8 kg
Designed For
P/N: AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3105, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140G, AR3140W, AR3150SP, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3180G, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, NBES0302, NBPD0160A, NBPD0171, NBPD0172, NBPD0180, NBWL0355A, NBWL0356A, SMC1000, SMC1000-2U, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC1500, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC
