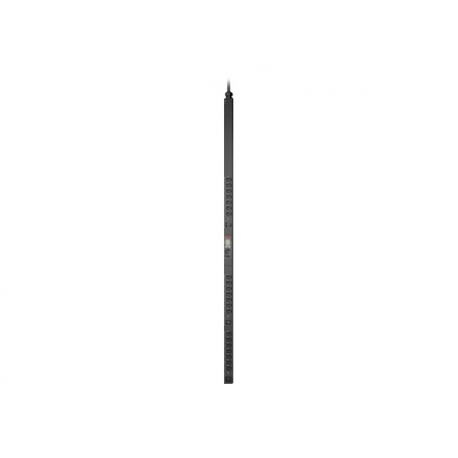

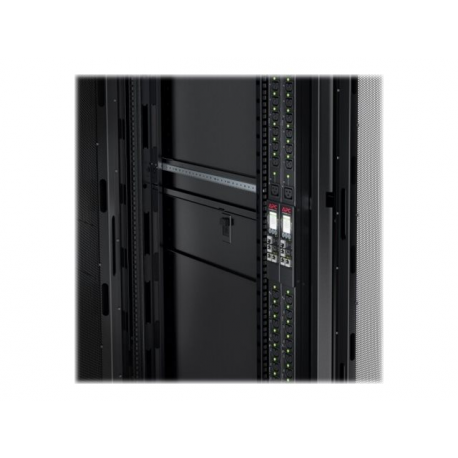

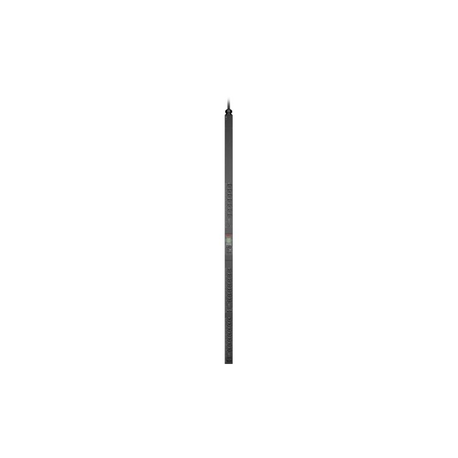

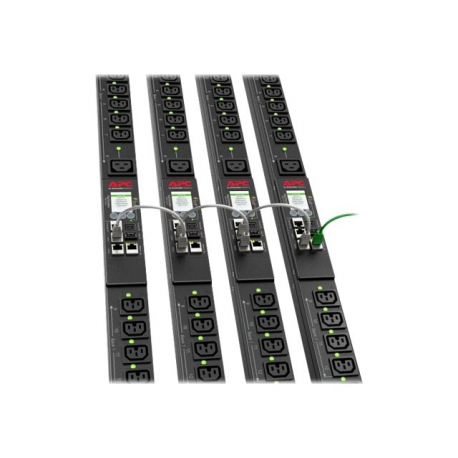

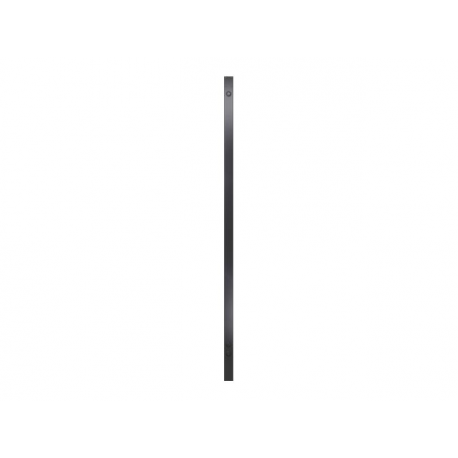

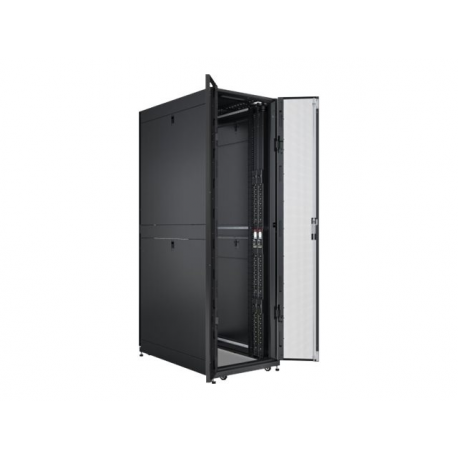

APC NetShelter 9000 Series Switched Rack PDU APDU9961 - Power distribution unit (rack-mountable) - AC 200 / 208 V - 5.7 kW - 5700 VA - 3-phase 5 Wire - USB, Ethernet 10 / 100 / 1000 - input: NEMA L21-20P - output connectors: 24 (21 x IEC 60320 C13 / C15, 3 x IEC 60320 C19 / C21) - 0U - 1.83 m - black - for P / N: SMX1000C, SMX2200HV, SMX2200RMLVUS, SMX3000HVNC, SMX3000LVUS, SRT5KRMXLTUS
APC NetShelter 9000 Series Switched Rack PDU APDU9961 - Power distribution unit (rack-mountable) - AC 200 / 208 V - 5.7 kW - 5700 VA - 3-phase 5 Wire - USB, Ethernet 10 / 100 / 1000 - input: NEMA L21-20P - output connectors: 24 (21 x IEC 60320 C13 / C15, 3 x IEC 60320 C19 / C21) - 0U - 1.83 m - black - for P / N: SMX1000C, SMX2200HV, SMX2200RMLVUS, SMX3000HVNC, SMX3000LVUS, SRT5KRMXLTUS
Manufacturer
•APC
Reference
•APDU9961
Article
•1842101
Intrastat
•85044090
Shipping weight
•8.82 kg
Device Type
Power distribution unit - rack-mountable
Height (Rack Units)
0U
Cord Length
1.83 m
Colour
Black
Input Voltage
AC 200/208 V
Input Voltage Range
AC 85 - 265 V
Input Wiring
3-phase 5 Wire
Frequency Required
50/60 Hz
Input Connectors

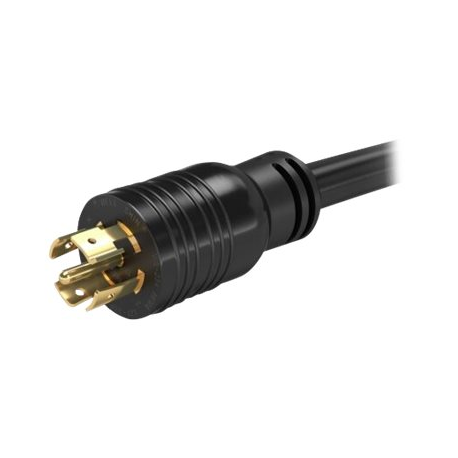

1 x power NEMA L21-20P
Power Output Connectors Details
21 x power IEC 60320 C13/C15 15 A ¦ 3 x power IEC 60320 C19/C21 20 A
Output Voltage
AC 208 V
Max Electric Current
20 A
Power Capacity
5.7 kW / 5700 VA
Circuit Protection
Circuit breaker
Remote Management Interface
USB, Ethernet 10/100/1000
Remote Management Protocol
SNMP, HTTP, SSH, CLI
Interfaces
1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ 1 x sensor - RJ-45 ¦ 1 x RS-485 input - RJ-45 ¦ 1 x RS-485 output - RJ-45 ¦ 1 x management (USB) - Micro-USB Type B
Cables Included
Power cable 1.83 m
Rack Mounting Kit
Included
Features
Vertical orientation, audible alarm, LCD display, current meter, vertical orientation, firmware upgradable, active power metre, real power metre, energy metre, remote outlet switching, rotating display, switched, switched per outlet, voltage metre, environmental sensor ready, outlet grouping
Compliant Standards
cUL, ICES-003, FCC Part 15 A, RoHS 2011/65/EU, IEC 62368-1, IEC 62053-21
Service & Support
Limited warranty - 2 years
Min Operating Temperature
-5 °C
Max Operating Temperature
60 °C
Humidity Range Operating
5 - 95%
Width
5.5 cm
Depth
4.6 cm
Height
179.2 cm
Weight
6.91 kg
Shipping Width
16.5 cm
Shipping Depth
11.4 cm
Shipping Height
200.2 cm
Shipping Weight
8.82 kg
Designed For
P/N: SMT3000RM2U, SMT750RM2U, SMX1000C, SMX2200HV, SMX2200RMLVUS, SMX3000HVNC, SMX3000LVUS, SMX3000RMHV2U, SMX3000RMHV2UNC, SMX3000RMLV2U, SMX750, SRT5KRMXLTUS, SU2200R3X167, SUA1000RM1U, SYH6K6RMT-P1
