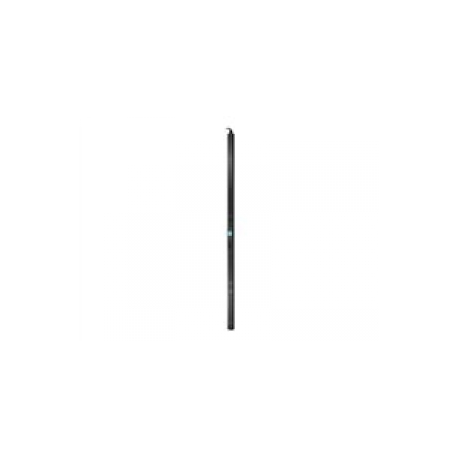

APC Switched Rack PDU 2G Zero U - Power distribution strip (rack-mountable) - AC 208 V - RS-232 - input: NEMA L21-20 - output connectors: 24 - Canada, United States - black - for P / N: SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT5KRMXLW-TW
APC Switched Rack PDU 2G Zero U - Power distribution strip (rack-mountable) - AC 208 V - RS-232 - input: NEMA L21-20 - output connectors: 24 - Canada, United States - black - for P / N: SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT5KRMXLW-TW
Manufacturer
•SCHNEIDER
Reference
•AP8961
Article
•1270811
Intrastat
•85044090
Shipping weight
•8.8 kg
<ul><li>Network management</li><li>Remote individual outlet control</li><li>Power delays</li><li>Load indicator LED</li><li>Integrates with InfraStruXure Central</li><li>Single input power source</li></ul>
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces.<br /><br /><p> </p>
Device Type
Power distribution strip - rack-mountable
Colour
Black
Localisation
Canada, United States
Input Voltage
AC 208 V
Frequency Required
50/60 Hz
Input Connectors
1 x power NEMA L21-20
Power Output Connectors Details
3 x power IEC 60320 C19 ¦ 21 x power IEC 60320 C13
Output Voltage
AC 208 V
Max Electric Current
16 A
Remote Management Interface
RS-232
Remote Management Protocol
SNMP, Telnet, HTTP
Interfaces
1 x management
Cables Included
Power cable - external - 1.8 m ¦ Serial cable - external
Rack Mounting Kit
Included
Features
LCD display
Compliant Standards
UL, cUL, ICES-003, VCCI Class A ITE, RoHS, FCC Part 15 A, REACH
Service & Support
Limited warranty - 2 years
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 95%
Width
5.6 cm
Depth
4.6 cm
Height
179 cm
Weight
6.9 kg
Shipping Width
16.5 cm
Shipping Depth
11.4 cm
Shipping Height
200 cm
Shipping Weight
8.8 kg
Designed For
P/N: AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3105, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3140G, AR3140W, AR3150SP, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3180G, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340G, AR3340W, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBES0302, NBPD0160A, NBPD0171, NBPD0172, NBPD0180, NBWL0355A, NBWL0356A, SMC1000, SMC1000-2U, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC1500, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500
