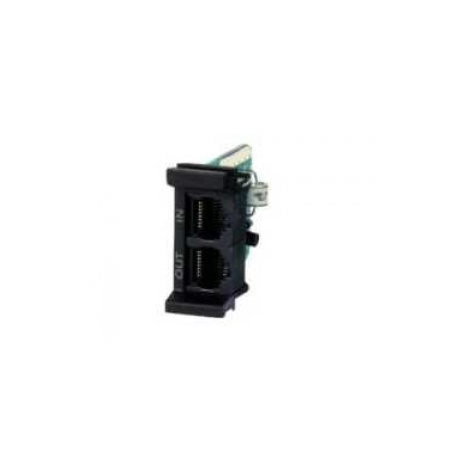

APC - Surge protector (rack-mountable) - 1U - black - for P / N: PRM24, PRM4

Manufacturer
APC
Reference
PDIGTR
Article
392804
Intrastat
85369095
Shipping weight
0.05 kg
Data line surges make up an overwhelming majority of all surge induced damages where the equipment was thought to be already protected but had a back door such as a modem line unprotected. Network interface cards, in particular, can be destroyed by relatively mild spikes.<br /><br />According to Ethernet standards (IEEE 802.3), non-AC network electrical hazards include: direct contact between components and power or lightning circuits, static charge buildup on cables and component, high-energy transients coupled onto the local cabling system (those induced by other cables which are installed in the general proximity of network cables or lightning within a mile radius) and potential differences (even from building to building, between safety grounds to which components are connected).<br /><br /><p> </p>

Manufacturer
APC
Reference
PDIGTR
Article
392804
Intrastat
85369095
Shipping weight
0.05 kg
Data line surges make up an overwhelming majority of all surge induced damages where the equipment was thought to be already protected but had a back door such as a modem line unprotected. Network interface cards, in particular, can be destroyed by relatively mild spikes.<br /><br />According to Ethernet standards (IEEE 802.3), non-AC network electrical hazards include: direct contact between components and power or lightning circuits, static charge buildup on cables and component, high-energy transients coupled onto the local cabling system (those induced by other cables which are installed in the general proximity of network cables or lightning within a mile radius) and potential differences (even from building to building, between safety grounds to which components are connected).<br /><br /><p> </p>

Device Type
Surge protector - rack-mountable
Height (Rack Units)
1U
Colour
Black
Dataline Surge Protection
ISDN - RJ-45
Surge Suppression
Yes
Surge Response Time
1 ns
Rack Mounting Kit
Included
Compliant Standards
cUL, UL 497A, VDE, RoHS, China RoHS
Service & Support
Limited warranty - lifetime
Min Operating Temperature
-15 °C
Max Operating Temperature
45 °C
Min Storage Temperature
-15 °C
Max Storage Temperature
45 °C
Humidity Range Operating
0 - 95%
Humidity Range Storage
0 - 95%
Width
1.9 cm
Depth
6.9 cm
Height
4.4 cm
Weight
20 g
Shipping Width
3.3 cm
Shipping Depth
9.5 cm
Shipping Height
9.9 cm
Shipping Weight
50 g
Designed For
P/N: PRM24, PRM4
