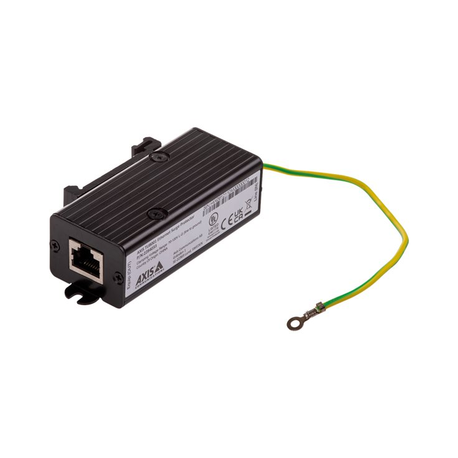

AXIS TU8001 - PoE surge protector (DIN rail mountable) - black - for AXIS M3077, M4308, P3818, Q1951, Q1952, Q3819, Q6075, Q6100, Q6315; P37 Series; Q60 Series

  • AXIS TU8001 ETHERNET SURGE PROT
images are for illustrative purposes only

New

Article: 1839941 Intrastat: 85369095 SKU: 02315-001
Pricing and stock details are available to registered users only.
 Add to compare
Device TypePoE surge protector - DIN rail mountable
ColourBlack
Dataline Surge ProtectionEthernet 10/100/1000Base-T
Surge SuppressionYes
Max Spike Voltage10000 V
FeaturesWall mountable, aluminium enclosure
Compliant StandardsIEEE 802.3bt, UL 497B, EN 60529, EN 61643-21, EN 61000-4, IEC 61000-4, NEMA TS-2 (2.2.7-2.2.9), IEC/EN 60529 IP30
Service & SupportLimited warranty - 3 years
Min Operating Temperature-40 °C
Max Operating Temperature85 °C
Humidity Range Operating0 - 95% (non-condensing)
Width2.7 cm
Depth9.4 cm
Height3.5 cm
Weight80 g
Designed ForAXIS M1134, M1135, M1135-E, M1137, M1137-E, M2025-LE, M2025-LE Black, M2026-LE Mk II, M3015 Network Camera, M3016 Network Camera, M3057-PLVE MkII, M3058-PLVE Network Camera, M3064-V, M3065-V, M3066-V, M3067-P, M3068-P, M3075-V, M3077-PLVE, M3115-LVE, M3116-LVE, M3205-LVE, M3205-LVE Network Camera, M3206-LVE, M4308-PLE, M5054, M5055, M5065, M5525-E PTZ Network Camera, M5525-E PTZ Network Camera 50Hz, P1245, p1254, P1264, P1265 Network Camera, P1275, P1280-E, P1290, P1375 Network Camera, P1375-E, P1377, P1377-LE, P1378 Network Camera, P1378-LE Network Camera, P1447-LE, P1448-LE, P1455-LE, P3245-LV Network Camera, P3245-LVE Network Camera, P3245-V Network Camera, P3245-VE Network Camera, P3247-LV, P3247-LVE, P3248-LV, P3248-LVE, P3255-LVE, P3375-LV Network Camera, P3375-LVE Network Camera, P3375-V Network Camera, P3375-VE Network Camera, P3715-PLVE, P3719-PLE, P3807-PVE Network Camera, P3818-PVE, P3925-LRE, P5654-E 50 Hz, P5654-E 60 Hz, P5655-E 50 Hz, P5655-E 60 Hz, P9106-V, Q1615 MkIII Network Camera, Q1615-LE
