APC Easy UPS BVX Series BVX1200LI-GR - UPS - AC 230 V - 650 Watt - 1200 VA - 9 Ah - output connectors: 4
images are for illustrative purposes only
New
Article: 1767272 Intrastat: 84734080 SKU: BVX1200LI-GR
Pricing and stock details are available to registered users only.
| Device Type | UPS - external |
| UPS Technology | Line interactive |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 140 - 300 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power CEE 7/7 |

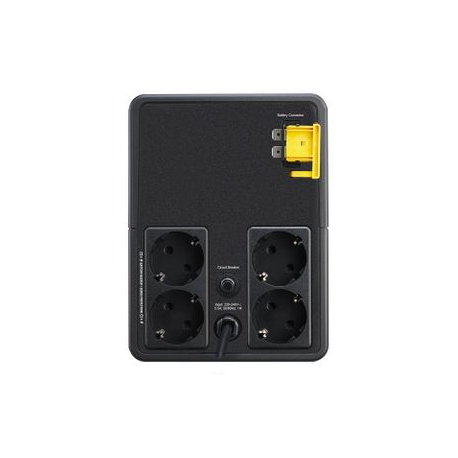

| Power Output Connectors Details | 4 x power Type F |
| Output Voltage | AC 230 V ± 10% - 50/60 Hz |
| Power Capacity | 650 Watt / 1200 VA |
| Output Waveform | Stepped approximation to a sinewave |
| Surge Energy Rating | 273 Joules |
| Circuit Protection | Circuit breaker |
| Quantity | 1 |
| Technology | Lead Acid |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 4.8 min at 50% load ¦ 3.2 min at 70% load |
| Recharge Time | 8 hours |
| Transfer Time | 6 ms |
| Features | Maintenance free |
| Cables Included | Power cable - external - 1.2 m |
| Features | Audible alarm, Automatic Voltage Regulation (AVR) |
| Compliant Standards | CB, EMC, IEC 62040-2, RoHS, EN 62040-2, IP20, IEC 62040-1, EN 62040-1 |
| Service & Support | Limited warranty - 2 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% |
| Width | 14 cm |
| Depth | 39 cm |
| Height | 19 cm |
| Weight | 7.5 kg |
| Shipping Width | 23.5 cm |
| Shipping Depth | 49.5 cm |
| Shipping Height | 29.7 cm |
| Shipping Weight | 8.5 kg |
