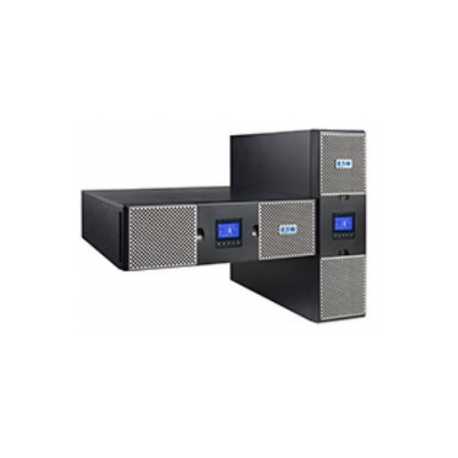

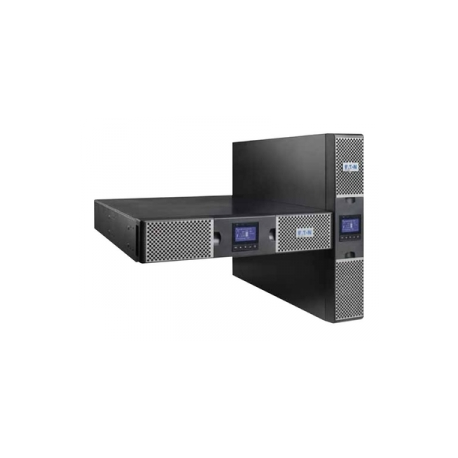

Eaton 9PX 2200i RT2U Netpack - UPS (rack-mountable / external) - AC 200 / 208 / 220 / 230 / 240 V - 2200 Watt - 2200 VA - 1-phase - RS-232, USB, Ethernet 10 / 100 / 1000 - output connectors: 10 - PFC - 2U
images are for illustrative purposes only
New
Article: 1324398 Intrastat: 84734080 SKU: 9PX2200IRTN
Pricing and stock details are available to registered users only.
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacenters, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
| Device Type | UPS - Power Factor Correction (PFC) - rack-mountable / external |
| Height (Rack Units) | 2U |
| UPS Technology | On-line |
| Input Voltage | AC 200/208/220/230/240 V |
| Input Voltage Range | AC 176 - 276 V |
| Input Wiring | 1-phase |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 |
| Power Output Connectors Details | 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 16A |
| Output Voltage | AC 200/208/220/230/240 V |
| Power Capacity | 2200 Watt / 2200 VA |
| Efficiency | 98% |
| Run Time (Up To) | 44 min at 300 Watts ¦ 23 min at 500 Watts ¦ 15 min at 800 Watts ¦ 9 min at 1200 Watts ¦ 5 min at 1800 Watts |
| Remote Management Interface | RS-232, USB, Ethernet 10/100/1000 |
| Interfaces | 1 x management (USB) ¦ 1 x management (RS-232) ¦ 1 x management (Gigabit Ethernet) - RJ-45 |
| Expansion Slots | 1 (total) / 0 (free) x Expansion Slot |
| Features | LCD display, internal bypass |
| Compliant Standards | FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cULus, CSA 22.2, KC, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1 |
| Software Included | Intelligent Power Software Suite |
| ENERGY STAR | Yes |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Sound Emission | 40 dB |
| Width | 44 cm |
| Depth | 60.5 cm |
| Height | 8.65 cm |
| Weight | 25 kg |
