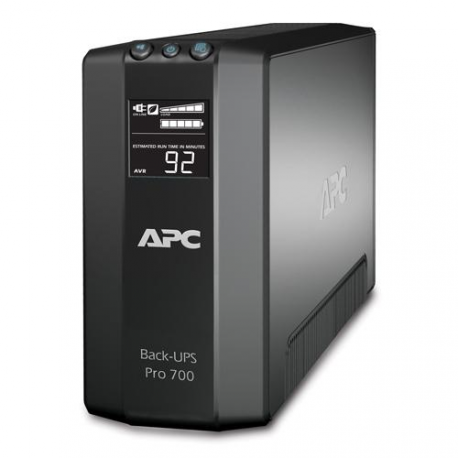

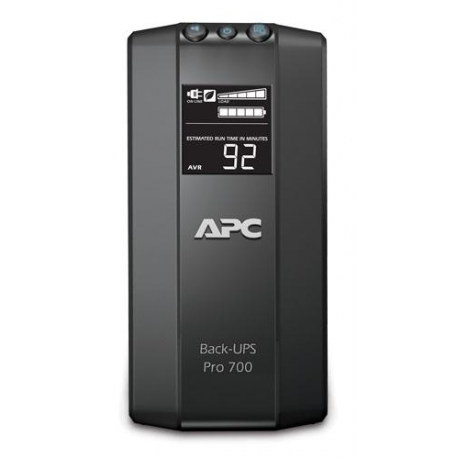

APC Back-UPS RS LCD 700 Master Control - UPS - AC 120 V - 420 Watt - 700 VA - USB - output connectors: 6 - black - for P / N: AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112SH4, AR112SH6, SCL500RM1UNC
APC Back-UPS RS LCD 700 Master Control - UPS - AC 120 V - 420 Watt - 700 VA - USB - output connectors: 6 - black - for P / N: AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112SH4, AR112SH6, SCL500RM1UNC
Manufacturer
•APC
Reference
•BR700G
Article
•1678693
Intrastat
•85068080
Shipping weight
•8 kg
Device Type
UPS - external
Battery Enclosure Type
Internal
Colour
Black
UPS Technology
Line interactive
Input Voltage
AC 120 V
Input Voltage Range
AC 88 - 143 V
Frequency Provided
50/60 Hz ± 3Hz
Frequency Required
50/60 Hz ± 3Hz
Input Connectors
1
Power Output Connectors Details
3 x power NEMA 5-15 (surge) ¦ 3 x power NEMA 5-15 (UPS and surge)
Output Voltage
AC 120 V 50/60 Hz
Power Capacity
420 Watt / 700 VA
Dataline Surge Protection
Network/phone line - RJ-45 ¦ Cable TV/satellite/antenna - F connector
Output Waveform
Stepped approximation to a sinewave
Surge Suppression
Yes
Surge Energy Rating
354 Joules
Circuit Protection
Circuit breaker
Quantity
1
Technology
Lead Acid
Run Time (Up To)
3.4 min at full load
Recharge Time
12 hours
Transfer Time
8 ms
Remote Management Interface
USB
Cables Included
Power cable - integrated - 1.83 m ¦ USB cable - external
Features
Audible alarm, LCD display, Automatic Voltage Regulation (AVR)
Compliant Standards
TUV, NOM, UL 1778, FCC Part 15 B, RoHS, REACH
ENERGY STAR
Yes
Service & Support
Limited warranty - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Sound Emission
45 dBA
Width
9.1 cm
Depth
31 cm
Height
19 cm
Weight
7.15 kg
Shipping Width
13.8 cm
Shipping Depth
44.2 cm
Shipping Height
25.2 cm
Shipping Weight
8 kg
Designed For
P/N: ACF600, AR106, AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR8213, NBWL0356A, SCL500RM1UC, SCL500RM1UNC, SMTL1000RM2UC, SMTL750RM2UC
