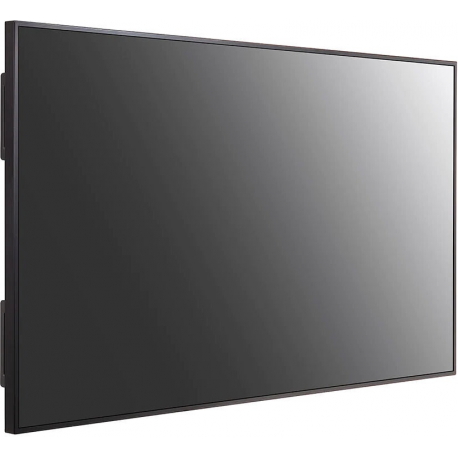

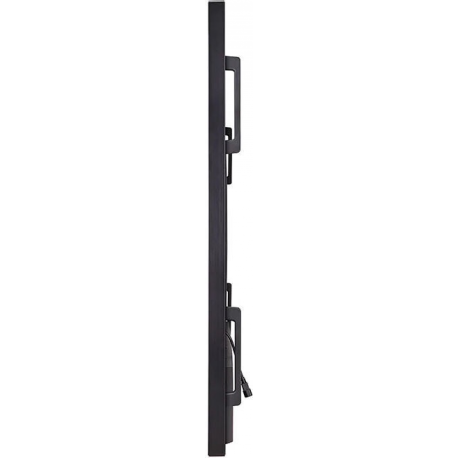

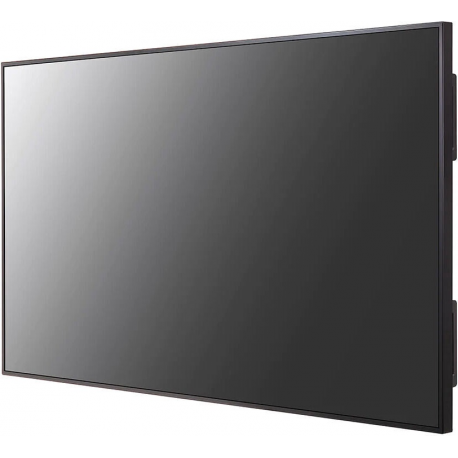

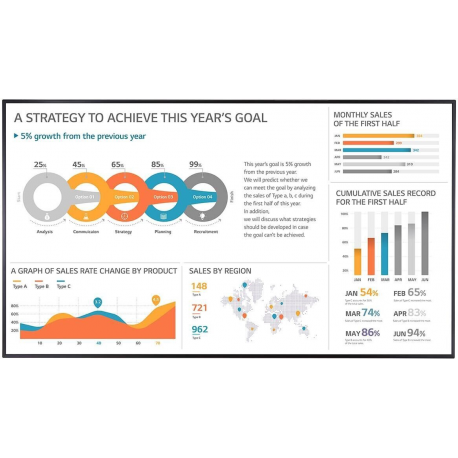

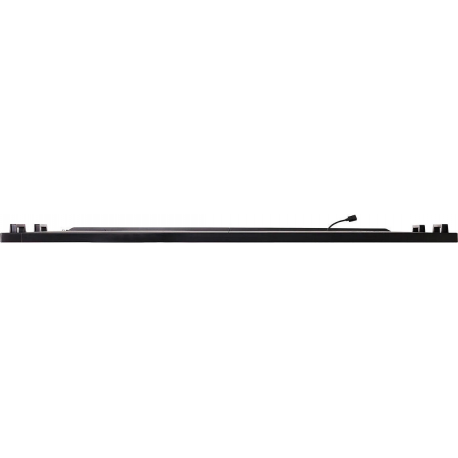

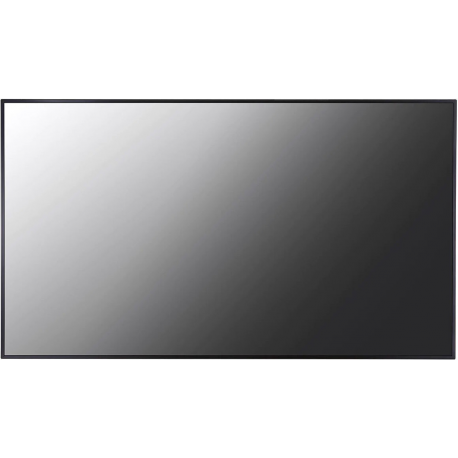

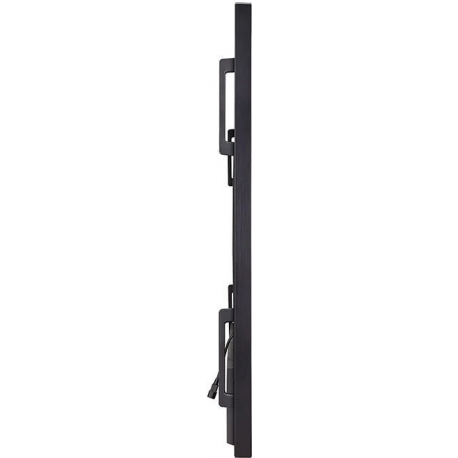

LG 86UH5F-H - 86" Diagonal Class UH5F-H Series LED display - digital signage - 4K UHD (2160p) 3840 x 2160 - black
LG 86UH5F-H - 86" Diagonal Class UH5F-H Series LED display - digital signage - 4K UHD (2160p) 3840 x 2160 - black
Manufacturer
•LG
Reference
•86UH5F-H.AEU
Article
•1802913
Intrastat
•85286980
Shipping weight
•49 kg
Product Type
LED-backlit LCD flat panel display
Energy Class
Class A+
Power Consumption Operational
280 Watt
Power Consumption (On mode)
185 W
Energy Consumption per Year
270 kWh
Diagonal Class
86"
Commercial Use
Yes - digital signage
Series
UH5F-H Series
TV Tuner
No tuner
TV Tuner Presence
No
Video Interface
HDMI
HDMI Ports Qty
3 ports
PC Interface
DVI, DisplayPort
Modes
Portrait mode, landscape mode
Dimensions
Panel
Width
192.62 cm
Depth
6.06 cm
Height
109.72 cm
Weight
49 kg
Enclosure Colour
Black
LCD Display Technology
IPS
Resolution
3840 x 2160
Display Format
4K UHD (2160p)
Image Aspect Ratio
16:9
LCD Backlight Technology
LED backlight
Coating
28% haze
Image Contrast Ratio
1100:1
Dynamic Contrast Ratio
1000000:1
Brightness
500 cd/m²
Viewing Angle
178 degrees
Viewing Angle (Vertical)
178 degrees
Response Time
8 ms
Commercial Features
SMART Signage Platform, detachable logo, Crestron Connected Certified, LG SuperSign Media Editor, Open Pluggable Standard (OPS) support, SuperSign CMS compatible, SuperSign Control+ compatible, SuperSign Control compatible, SuperSign WB compatible
Operation Hours / Days
24 / 7
Features
72% Color Gamut NTSC, 10-bit support, picture in picture (no tuner), picture by picture (no tuner), wireless access point
Flat Panel Mount Interface
600 x 400 mm
VESA Compatibility
Yes
USB Port
Yes
USB Ports Qty
2
Configuration
Quad-Core
Operating System
webOS
Type
Remote control
Features
Built-in speaker
Connectivity
LAN
Connector Type
Remote control
3 x HDMI input
DisplayPort input
DisplayPort output
DVI-D input
Infrared input
2 x USB 2.0
Audio line-in
Audio line-out
RS-232C input
RS-232C output
Cables Included
DisplayPort cable - 1.8 m
Serial adapter
Compliant Standards
FCC Class A certified, CB, KC, ERP, NRTL, HDCP 2.2, HDCP 1.3, HDCP 1.4
ENERGY STAR Certified
Yes
Power Device
Power supply
Nominal Voltage
AC 120/230 V (50/60 Hz)
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 80%
