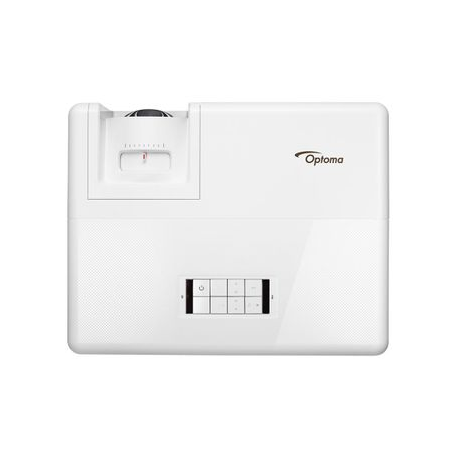

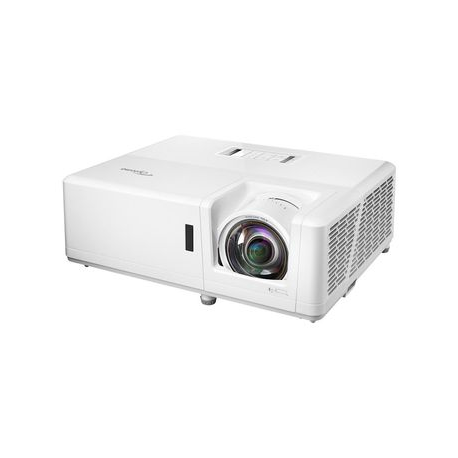

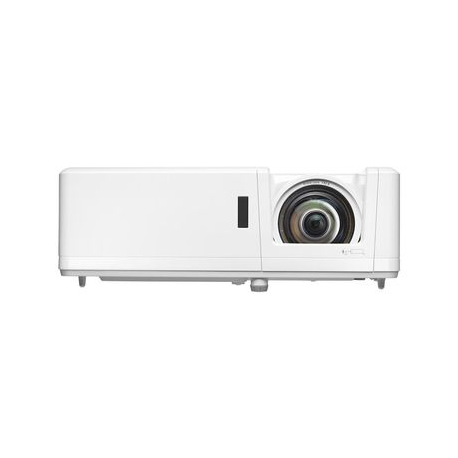

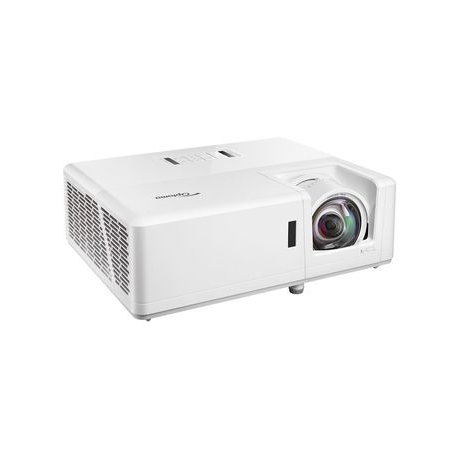

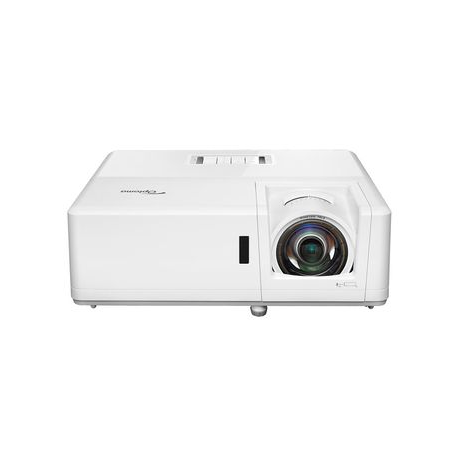

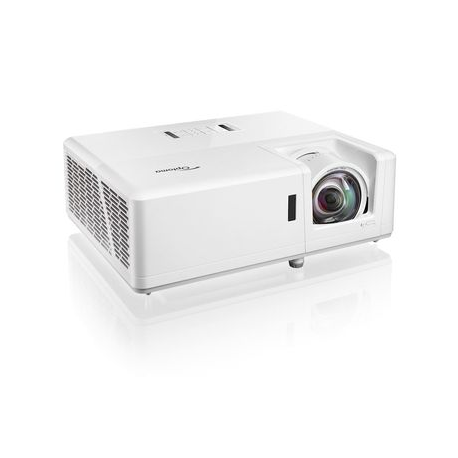

Optoma ZH406ST - DLP projector - laser - 3D - 4200 ANSI lumens - Full HD (1920 x 1080) - 16:9 - 1080p - short-throw fixed lens
images are for illustrative purposes only
New
Article: 1695125 Intrastat: 85286200 SKU: E1P1A3FWE1Z1
Pricing and stock details are available to registered users only.
| Projector brightness | 4200 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 300000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 925.3 - 7655.6 mm (36.4 - 301.4") |
| Projection distance | 0.4 - 3.31 m |
| Supported aspect ratios | 4:3,16:10,16:9 |
| Number of colours | 1.073 billion colours |
| Uniformity | 85% |
| Horizontal scan range | 15.375 - 91.146 kHz |
| Vertical scan range | 50 - 85 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Light source type | Laser |
| Service life of light source | 30000 h |
| Fixed focal length | 7.51 mm |
| Zoom type | Fixed |
| Throw ratio | 0.5:1 |
| Offset | 116% |
| Analog signal format system | NTSC,PAL,SECAM |
| Full HD | Y |
| 3D | Y |
| Supported 3D formats | Frame packing, Side by side |
| Supported graphics resolutions | 640 x 480 (VGA),800 x 600 (SVGA),1024 x 576 (WSVGA),1024 x 768 (XGA),1280 x 800 (WXGA),1360 x 768 (WXGA),1920 x 1080 (HD 1080) |
| Supported video modes | 480i,480p,576i,576p,720p,1080i,1080p |

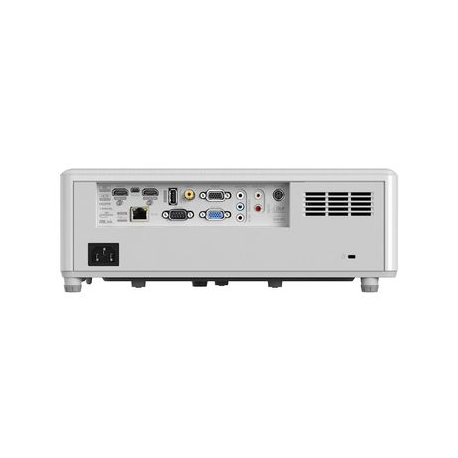

| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 1 |
| DVI port | N |
| Serial interface type | RJ-45,RS-232 |
| Mobile High-Definition Link (MHL) | N |
| HDMI connector type | Full-size |
| HDMI version | 2.0 |
| Headphone outputs | 2 |
| Microphone in | Y |
| DC-in jack | Y |
| Smart TV | N |
| Ethernet LAN | Y |
| Wi-Fi | N |
| Ethernet LAN (RJ-45) ports | 1 |
| Card reader integrated | N |
| Noise level | 30 dB |
| On Screen Display (OSD) | Y |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Farsi, Finnish, French, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish, Vietnamese |
| Number of OSD languages | 25 |
| Password protection | Y |
| Built-in speaker(s) | Y |
| RMS rated power | 20 W |
| Number of built-in speakers | 2 |
| Product type | Ceiling / Floor mounted projector |
| Market positioning | Short throw |
| Product colour | White |
| LED indicators | Y |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Built-in display | N |
| Power source | DC |
| Power consumption (typical) | 206 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 269 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Auto power off | Y |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Operating altitude | 0 - 3000 m |
| Weight | 5.5 kg |
| Width | 337 mm |
| Depth | 265 mm |
| Height | 122.5 mm |

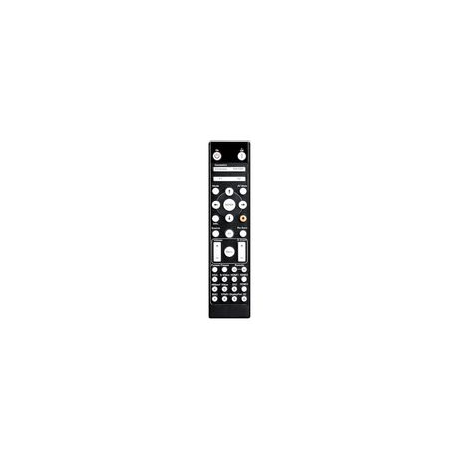

| Handheld remote control | Y |
| Remote control type | IR |
| Batteries included | Y |
