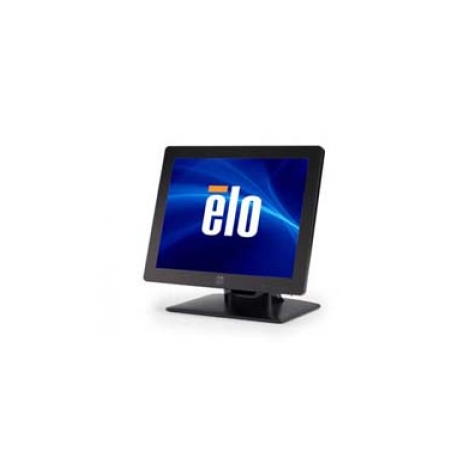

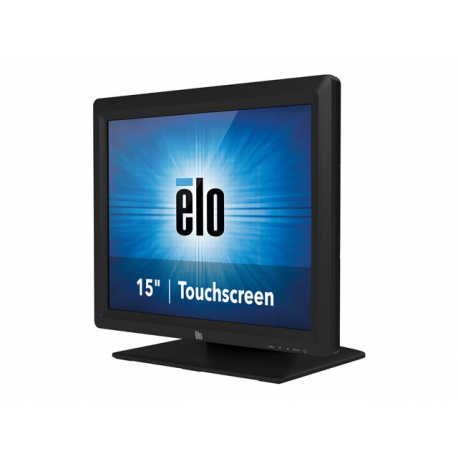

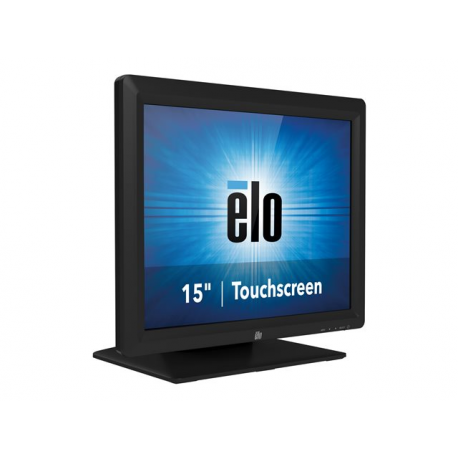

Elo 1517L iTouch Zero-Bezel - LED monitor - 15" - touchscreen - 1024 x 768 @ 75 Hz - 300 cd / m² - 800:1 - 23 ms - VGA - black

images are for illustrative purposes only

New

Article: 1048947 Intrastat: 85285291 SKU: E829550
Pricing and stock details are available to registered users only.
  • Sleek and thin design with ""built for touch"" reliability
  • Flexible and space-saving
  • 60% energy savings using LED technology
  • Zero-bezel touchscreen versions for a smooth, easy-to-clean surface
  • 15"" diagonal active matrix TFT LED-backlit LCD
  • 4:3 aspect ratio
  • 1024 x 768 native resolution
  • USB and RS232 serial connections
The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.

The 1517L is offered with iTouch or IntelliTouch zero-bezel surface acoustic wave or AccuTouch five-wire resistive technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. iTouch and IntelliTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.

The optional 3-track magnetic stripe reader (MSR) is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

The 1517L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.



Display TypeLED-backlit LCD monitor / TFT active matrix
Diagonal Size15"
Aspect Ratio4:3
Native Resolution1024 x 768 at 75 Hz
Brightness300 cd/m²
Brightness w/touchscreen270 cd/m²
Contrast Ratio800:1
Colour Support16.2 million colours
Response Time23 ms
Horizontal Viewing Angle+80 / -80
Vertical Viewing Angle+70 / -70
Backlight TechnologyLED backlight
Controls & AdjustmentsBrightness, contrast, H/V position, sharpness, colour balance, colour temperature, phase, clock, aspect control
OSD LanguagesChinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese
FeaturesiTouch Surface Wave
ColourBlack
Dimensions (WxDxH)35.8 cm x 19.7 cm x 31.9 cm - with stand
Weight4.3 kg
TypeTouch-screen - touchscreen
Movement Detection TechnologySurface acoustic wave
InterfacesSerial ¦ USB ¦ VGA
VESA Mounting Interface75 x 75 mm
FeaturesSecurity lock slot (cable lock sold separately), iTouch Surface Acoustic Wave Technology
MTBF50,000 hour(s)
Compliant StandardsUL, VCCI, C-Tick, BSMI, cUL, CB, CCC, IC, FCC, RoHS, KCC, WEEE, S Mark, China RoHS
LocalisationWorldwide
Voltage RequiredAC 120/230 V (50/60 Hz)
Power Consumption Operational10.5 Watt
Power Consumption (Typical)10.5 Watt
Power Consumption Stand by0.92 Watt
Power Consumption Sleep0.5 Watt
Service & SupportLimited warranty - 3 years
Min Operating Temperature0 °C
Max Operating Temperature40 °C
Humidity Range Operating20 - 80% (non-condensing)
