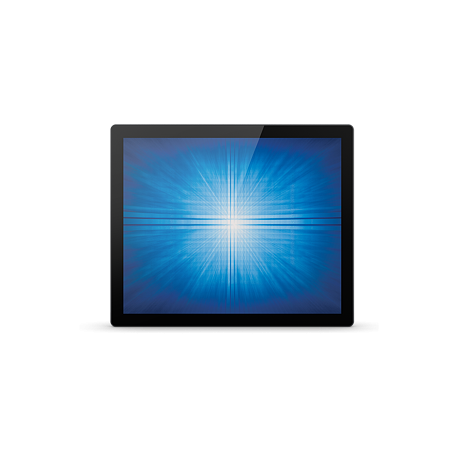

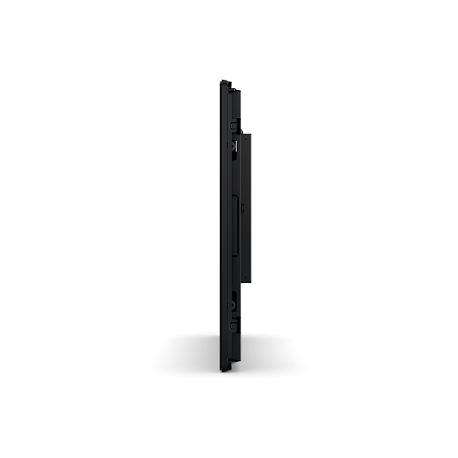

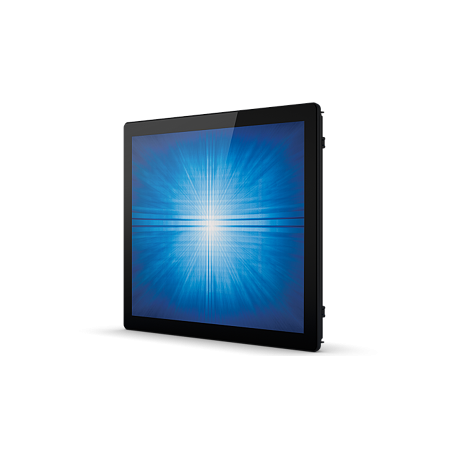

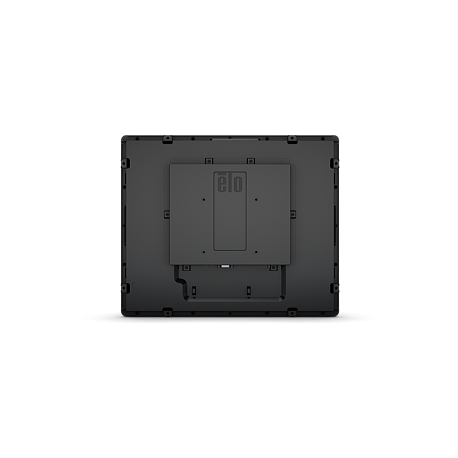

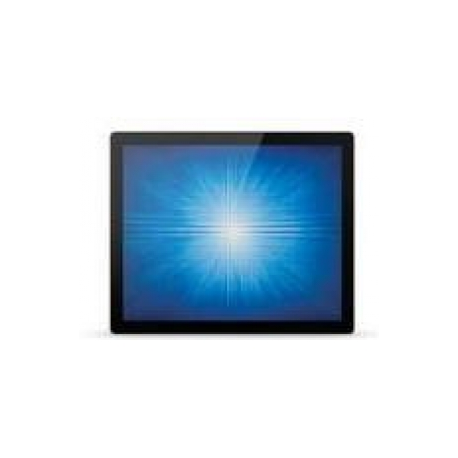

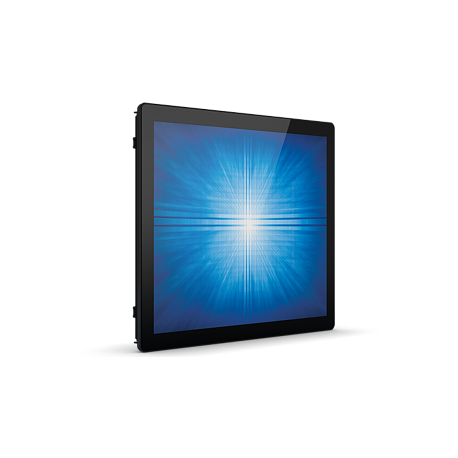

Elo Open-Frame Touchmonitors 1990L - LED monitor - 19" - open frame - touchscreen - 1280 x 1024 @ 60 Hz - 250 cd / m² - 1000:1 - 5 ms - HDMI, VGA, DisplayPort - black
images are for illustrative purposes only
New
Article: 1414769 Intrastat: 85285291 SKU: E330817
Pricing and stock details are available to registered users only.
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class B |
| Energy Consumption per Year | 34 kWh |
| Diagonal Size | 19" |
| Aspect Ratio | 5:4 |
| Native Resolution | 1280 x 1024 at 60 Hz |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 225 cd/m² |
| Contrast Ratio | 1000:1 |
| Colour Support | 16.7 million colours |
| Response Time | 5 ms |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 82 kHz |
| Horizontal Viewing Angle | +85 / -85 |
| Vertical Viewing Angle | +80 / -80 |
| Backlight Technology | LED backlight |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features | Remote OSD, Slim Design, Projected Capacitive Touch (P-CAP) technology |
| Colour | Black |
| Dimensions (WxDxH) | 42.01 cm x 4.07 cm x 34.81 cm |
| Weight | 4.6 kg |
| Type | Touchscreen |
| Interfaces | USB ¦ VGA ¦ DisplayPort ¦ HDMI |
| VESA Mounting Interface | 100 x 100 mm |
| Cables Included | 1 x USB cable ¦ 1 x VGA cable ¦ 1 x HDMI cable |
| Mounting Kit | Included |
| MTBF | 50,000 hours |
| Compliant Standards | UL, TUV, VCCI, BSMI, cUL, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, DisplayPort 1.1a, IMERC |
| Power Consumption (On mode) | 23 W |
| Power Consumption (Typical) | 22 Watt |
| Power Consumption Sleep | 1.5 Watt |
| Power Consumption (Off Mode) | 0.5 Watt |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
