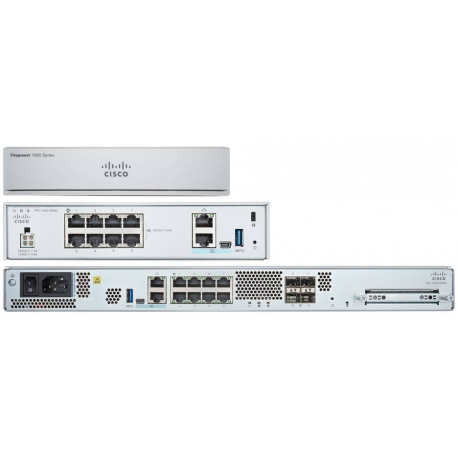

Cisco FirePOWER 1120 ASA - Firewall - 1U - rack-mountable
images are for illustrative purposes only
New
Article: 1762967 Intrastat: 85176990 SKU: FPR1120-ASA-K9
Pricing and stock details are available to registered users only.
| Device Type | Firewall |
| Height (Rack Units) | 1U |
| Width | 43.7 cm |
| Depth | 26.9 cm |
| Height | 4.37 cm |
| Weight | 3.63 kg |
| Hard Drive | 200 GB x 1 |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Performance | Firewall throughput (UDP): 4.5 Gbps ¦ Multiprotocol firewall throughput: 2.5 Gbps ¦ IPsec VPN throughput (450B UDP L2L test): 1 Gbps |
| Capacity | Concurrent connections: 200000 ¦ New connections per second: 75000 ¦ VPN peers: 150 ¦ Security contexts: 2 |
| Features | 1 fan |
| Interfaces | 8 x - RJ-45 ¦ 4 x - SFP (mini-GBIC) ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x serial - RJ-45 ¦ 1 x USB 3.0 - Type A |
| Included Accessories | Mounting brackets |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, Directive 2004/108/EC, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, TVCN 7317, Directive 2006/108/EC, TCVN 7189, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Service & Support | Limited warranty - advance hardware replacement - 90 days - response time: 10 days |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 90% (non-condensing) |
