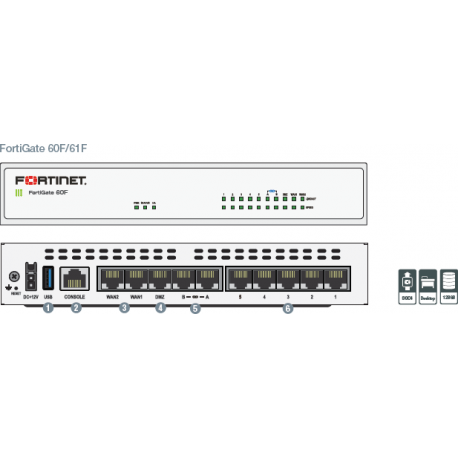

Fortinet FortiGate 60F - Security appliance - 10 GigE - desktop

  • FORTINET FortiGate-60F - 10 x GE RJ45 ports including 7 x Internal Ports 2 x WAN Ports 1 x DMZ Port
images are for illustrative purposes only

New

Article: 1795144 Intrastat: 85176990 SKU: FG-60F
Pricing and stock details are available to registered users only.
 Add to compare
Device TypeSecurity appliance
Width21.6 cm
Depth16 cm
Height3.8 cm
Weight900 g
Processors Installed1 x Fortinet FortiASIC SOC4
Form FactorDesktop
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Network / Transport ProtocolIPSec
PerformanceVPN throughput (512-bit IPSec): 6.5 Gbps ¦ NGFW throughput: 1 Gbps ¦ SSL inspection throughput: 900 Mbps ¦ IPS throughput: 1.4 Gbps ¦ Firewall throughput: 10 Gbps ¦ Threat protection throughput: 700 Mbps ¦ Firewall throughput (1518-byte UDP): 10 Gbps ¦ Firewall throughput (512-byte UDP): 10 Gbps ¦ Firewall throughput (64-byte UDP): 6 Gbps ¦ Firewall throughput: 9 Mpps ¦ Application control (AVC) throughput: 1.8 Gbps
CapacityLatency: 4 µs ¦ Concurrent sessions: 700000 ¦ New sessions: 35000 ¦ Firewall policies: 5000 ¦ IPSec VPN tunnels: 200 ¦ Virtual domains: 10 ¦ Number of FortiSwitches: 16 ¦ Number of FortiToken devices: 500
FeaturesFirewall protection, antivirus analysis, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), fanless, web threat protection
Encryption AlgorithmSSL, TLS 1.3
Interfaces5 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - RJ-45 (WAN / DMZ) ¦ 1 x console - RJ-45 ¦ 1 x USB 3.0 - Type A
Compliant StandardsUL, VCCI, C-Tick, cUL, CB, FCC Part 15 Class B
Power DeviceExternal power adapter
Installed Qty1
Voltage RequiredAC 120/230 V (50 - 60 Hz)
Power Consumption Operational18.5 Watt
OS ProvidedFortiOS
Min Operating Temperature0 °C
Max Operating Temperature40 °C
Humidity Range Operating10 - 90% (non-condensing)
