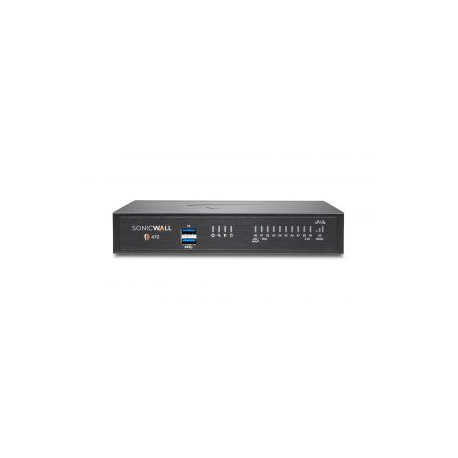

SonicWall TZ470 - Essential Edition - security appliance - GigE, 2.5 GigE - SonicWALL Secure Upgrade Plus Program (2 years option) - desktop
images are for illustrative purposes only
New
Article: 3169555 Intrastat: 85176990 SKU: 02-SSC-6796
Pricing and stock details are available to registered users only.
| Device Type | Security appliance |
| Width | 19 cm |
| Depth | 13.5 cm |
| Height | 3.5 cm |
| Weight | 830 g |
| Form Factor | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 2, SNMP 3, HTTP, HTTPS, SSH, CLI |
| Performance | Firewall throughput: 3.5 Gbps ¦ Threat prevention throughput: 1.5 Gbps ¦ Application throughput: 2 Gbps ¦ IPS throughput: 2 Gbps ¦ Anti-malware throughput: 1.5 Gbps ¦ TLS/SSL inspection and decryption throughput: 600 Mbps ¦ VPN throughput (IPSec): 1.5 Gbps ¦ Connection rate: 12000 connections per second |
| Capacity | Virtual interfaces (VLANs): 128 ¦ SSL VPN licences: 2 (maximum 150) ¦ VPN tunnels (site-to-site): 150 ¦ IPSec VPN clients: 5 (maximum 200) ¦ SPI connections: 1000000 ¦ DPI connections: 250000 ¦ DPI SSL connections: 35000 ¦ Single Sign-On (SSO) users: 2500 ¦ Manageable access points: 32 |
| Status Indicators | Power, test mode, link/activity, SSD activity, secure |
| Features | Firewall protection, NAT support, VPN support, PAT support, VLAN support, Stateful Packet Inspection (SPI), DoS attack prevention, content filtering, port mirroring, IPv6 support, antivirus analysis, deep inspection, DDos attack prevention, anti-spam protection, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), Jumbo Frames support, DHCP server, bandwidth control, IPv4 support, Common Access Card (CAC) reader support, DHCP relay, 3G/4G USB Dongle Support, NetFlow, Single Sign-On (SSO) support, VLAN trunking, SD-WAN support |
| Encryption Algorithm | DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES |
| Authentication Method | RADIUS, LDAP, XAUTH authentication |
| VoIP Protocols | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 |
| Interfaces | 6 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - RJ-45 (WAN) ¦ 2 x 2.5Gb Ethernet - SFP+ ¦ 2 x USB 3.0 - Type A ¦ 1 x console - RJ-45 |
| MTBF | 46 years |
| Compliant Standards | FCC Class B certified, UL, TUV GS, C-Tick, BSMI, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FIPS 140-2 Level 2, EMC, RoHS, ICES Class B, KCC, WEEE, REACH, LVD, VCCI Class B, MSIP, CoC, Common Criteria |
| Pricing Type | SonicWALL Secure Upgrade Plus Program (2 years option) |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 19.95 Watt |
| Power Provided | 36 Watt |
| OS Provided | SonicOS 7.0 |
| Software Included | SonicWall Essential Protection Service Suite (2 years) |
| Shipping Weight | 1.43 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
