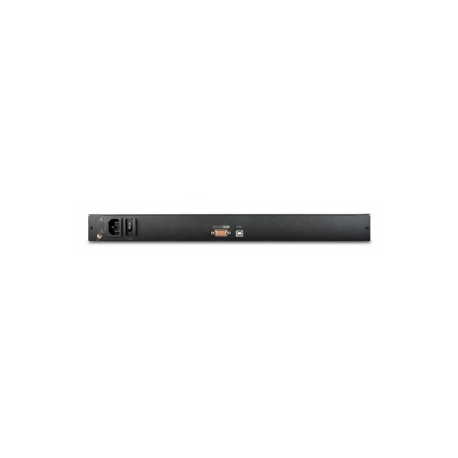

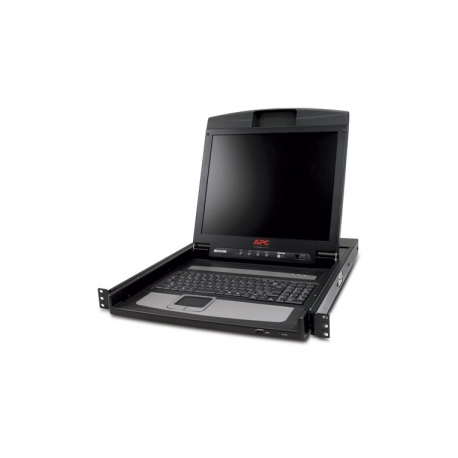

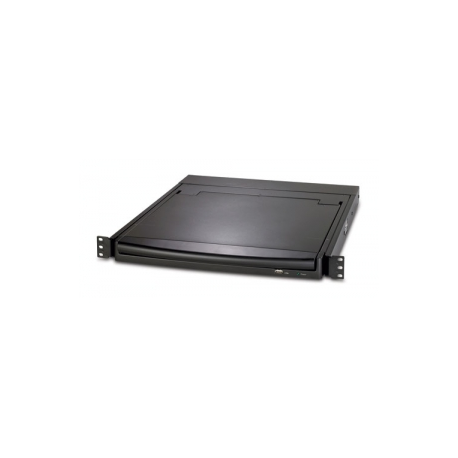

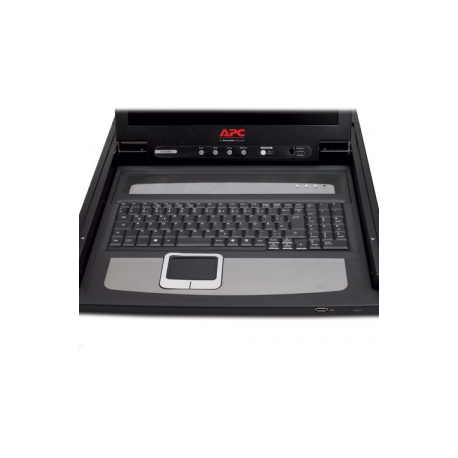

APC LCD Console - KVM console - 17" - rack-mountable - 1280 x 1024 @ 75 Hz - black - 1U - for P / N: AR3106SP, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT5KRMXLW-TW
APC LCD Console - KVM console - 17" - rack-mountable - 1280 x 1024 @ 75 Hz - black - 1U - for P / N: AR3106SP, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT5KRMXLW-TW
Manufacturer
•SCHNEIDER
Reference
•AP5717
Article
•38692
Intrastat
•85285900
Shipping weight
•17.89 kg
<ul><li>Status indicator LEDs</li><li>Allows for rear mounting of 1U device</li><li>Occupies 1U of rack space</li><li>Multi-platform support</li><li>Integrated touchpad pointing device</li><li>Power tilt sensor</li><li>Low cooling requirements</li><li>Low power consumption</li><li>Quick release tabs</li><li>On-Screen Display (OSD) adjustments</li><li>Cable management arm</li></ul>
The Rack LCD Console features a 17" LCD panel, a full keyboard, and a touch pad in a rackmountable sliding housing. The Rack LCD Console is intended for use with compatible target devices (a KVM switch or server). The device is easily installed and minimizes support and maintenance costs, ensuring lower cost of ownership. The ultra-thin LCD screen, touchpad technology, and easy-to-install slide rails combine to form a high-quality, streamlined solution built for server management. The Rack LCD can be used in a variety of IT environments, from computer rooms to large data centers.<br /><br /><p> </p>
Display Type
KVM console / TFT active matrix
Diagonal Size
17"
Native Resolution
1280 x 1024 at 75 Hz
Pixel Pitch
0.26 mm
Controls & Adjustments
Brightness
Features
Cable management cover
Colour
Black
Dimensions (WxDxH)
48.2 cm x 61.4 cm x 4.4 cm
Height (Rack Units)
1U
Weight
15.9 kg
Type
Keyboard, touchpad
Max Resolution
1280 x 1024 @ 75 Hz
Interfaces
KVM (SPHD-18) ¦ USB ¦ USB (Type B) ¦ Management (RJ-11)
Cables Included
1 x keyboard / mouse / video cable ¦ 1 x video / USB cable ¦ 1 x USB cable ¦ 1 x data cable
Rack Mounting Kit
Included
Compliant Standards
UL, C-Tick, GOST, EN 60950, NOM, VDE, IEC 60950, EN55024, EN55022 Class A, CCC, RoHS, FCC Part 15 A, REACH
Power Supply
Internal
Input Voltage
AC 120/230 V (50/60 Hz)
Service & Support
Limited warranty - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 80% (non-condensing)
Designed For
P/N: ACDC2513, AP7950B, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3103, AR3103SP, AR3105SP, AR3105W, AR3106SP, AR3107G, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3180G, AR3300G, AR3300SP, AR3300W, AR3300X610, AR3300X617, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3340G, AR3340W, AR3350SP, AR3350W, AR3350X617, AR3355SP, AR3355W, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X432, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBES0302, NBPD0160A, NBPD0180, NBWL0355A, NBWL0356A, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR, SMC15
