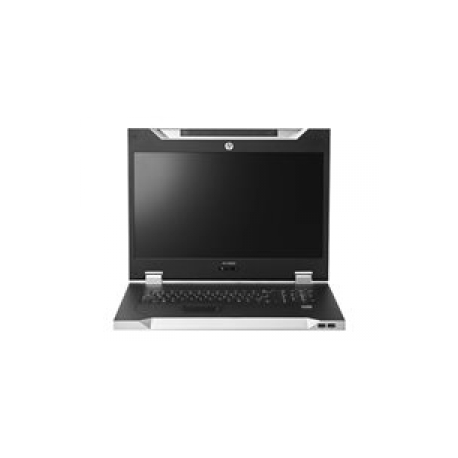

HPE LCD8500 - KVM console - USB - 18.51" - rack-mountable - 1600 x 1200 @ 60 Hz - 187 cd / m² - 700:1 - 16 ms - silver - 1U - for ProLiant DL20 Gen9, DL360p Gen8, DL380 Gen9, DL580 Gen9, MicroServer Gen8, ML110 Gen9
HPE LCD8500 - KVM console - USB - 18.51" - rack-mountable - 1600 x 1200 @ 60 Hz - 187 cd / m² - 700:1 - 16 ms - silver - 1U - for ProLiant DL20 Gen9, DL360p Gen8, DL380 Gen9, DL580 Gen9, MicroServer Gen8, ML110 Gen9
Manufacturer
•HPE
Reference
•AF632A
Article
•1208682
Intrastat
•85285900
Shipping weight
•11.2 kg
Need the latest in KVM technology to manage the servers in your rack? HP KVM Console Kits provide ultra-dense, high-performance KVM consoles that combine both the rack display panel and keyboard with touch pad in a 1U form factor. The 1U rackmount form factor allows for a KVM console switch to be mounted directly behind it. The HP LCD8500 1U Rackmount Console Kit with 18.5-inch WXGA TFT LCD brightview display supports most common video resolutions, up to 1600 x 1200 at 60 to 75 Hz refresh rates. The LCD8500 1U Rackmount Console Kit features a new silver enclosure making identification in the rack much easier. The rackmount keyboard includes a three-button touch pad with four (4) scroll keys and Windows shortcut keys. The LCD8500 1U Rackmount Console Kit also includes a new Lid Switch display management feature that shuts off the display backlight when the console is closed and repowers to its current state when opened again, helping to prolong the life of the display panel.
Display Type
KVM console / TFT active matrix
Diagonal Size
18.51"
Native Resolution
1600 x 1200 at 60 Hz
Brightness
187 cd/m²
Contrast Ratio
700:1
Response Time
16 ms
Controls & Adjustments
Brightness, contrast
OSD Languages
Chinese (simplified), English, German, French, Italian, Spanish, Japanese
Colour
Silver
Dimensions (WxDxH)
43.61 cm x 43.3 cm x 4.23 cm
Height (Rack Units)
1U
Weight
5.2 kg
Type
Keyboard, touchpad
Keyboard / Mouse Interface
USB
Features
German keyboard layout
Interfaces
2 x USB
Compliant Standards
WEEE
Input Voltage
AC 120/230 V (50/60 Hz)
Power Consumption (Typical)
36 Watt
Service & Support
Limited warranty - parts - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% (non-condensing)
Designed For
HPE ProLiant DL120 Gen9, DL120 Gen9 Entry, DL160 Gen8, DL160 Gen8 Base, DL160 Gen8 Entry, DL160 Gen8 Performance, DL160 Gen9, DL160 Gen9 Base, DL160 Gen9 Entry, DL160 Gen9 Performance, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9 Entry, DL20 Gen9 Performance, DL320e Gen8 v2 Base, DL320e Gen8 v2 Entry, DL320e Gen8 v2 Performance, DL360e Gen8, DL360e Gen8 Base, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL360p Gen8 Performance, DL380 Gen9, DL380 Gen9 Base, DL380 Gen9 Entry, DL380 Gen9 High Performance, DL380 Gen9 Performance, DL380e Gen8, DL380e Gen8 Base, DL380e Gen8 Entry, DL380e Gen8 High Performance, DL380e Gen8 Storage, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Performance, DL380p Gen8 Special, DL580 Gen9, DL580 Gen9 Base, DL580 Gen9 High Performance, DL580 Gen9 SAP HANA Scale-out Base Configuration, DL580 Gen9 SAP HAN
