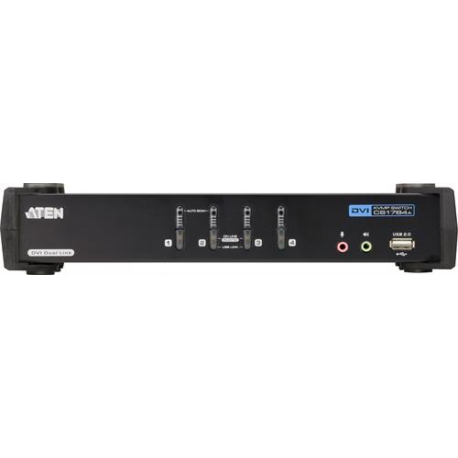

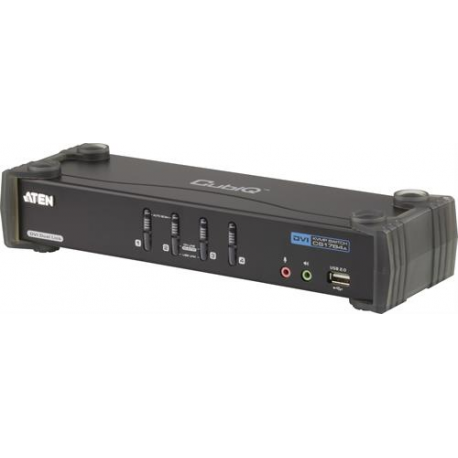

ATEN CubiQ CS1784A - KVM / audio / USB switch - 4 x KVM / audio - 1 local user - desktop
images are for illustrative purposes only
New
Article: 1669880 Intrastat: 85176990 SKU: CS1784A-AT-G
Pricing and stock details are available to registered users only.
| Device Type | KVM / audio / USB switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 4 x KVM / audio |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 2560 x 1600 |
| Features | Firmware upgradable, built-in 2-port USB 2.0 hub |
| Built-in Devices | USB Hub |

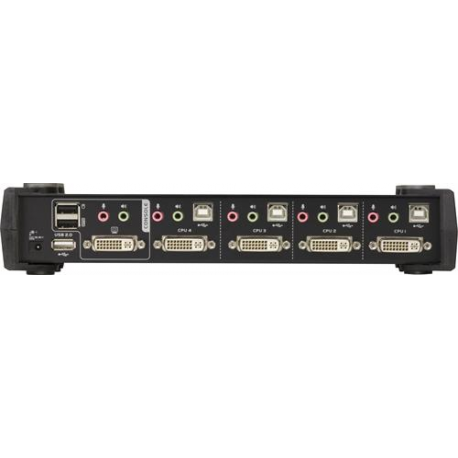

| Interfaces | 1 x keyboard (USB) Type A ¦ 1 x mouse (USB) Type A ¦ 1 x DVI-I (dual link) ¦ 2 x audio output mini-jack ¦ 2 x microphone input mini-jack ¦ 2 x USB 2.0 Type B ¦ 4 x DVI-I (dual link) ¦ 4 x audio output mini-jack ¦ 4 x microphone input mini-jack ¦ 2 x USB 2.0 Type A |
| Power Device | External power adapter |
| Power Consumption Operational | 10 Watt |
| Cables Included | 4 x keyboard / mouse / video cable - 1.8 m |
| Compliant Standards | RoHS |
| Width | 27 cm |
| Depth | 8.7 cm |
| Height | 5.5 cm |
| Weight | 0.93 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 60 °C |
