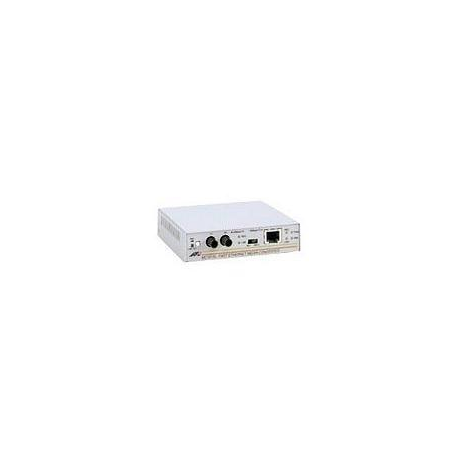

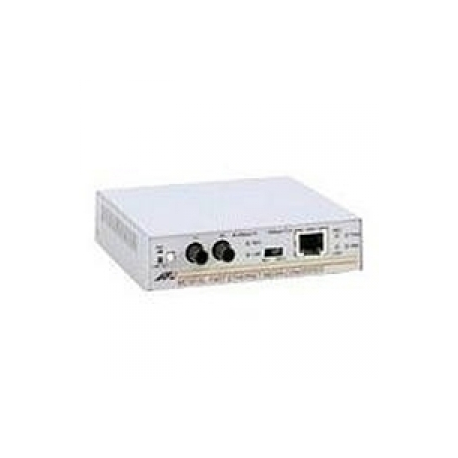

Allied Telesis AT MC101XL - Fibre media converter - 10Mb LAN - 100Base-FX, 100Base-TX - RJ-45 / ST multi-mode - up to 2 km - 1310 nm

  • Allied Telesis MC FE 100T TO 100FX ST (100BaseTX to 100BaseFX/ST (MM) (2km) Media Converter)
  • Allied Telesis MC FE 100T TO 100FX ST (100BaseTX to 100BaseFX/ST (MM) (2km) Media Converter)
  • Allied Telesis MC FE 100T TO 100FX ST (100BaseTX to 100BaseFX/ST (MM) (2km) Media Converter)
images are for illustrative purposes only

New

Article: 1390862 Intrastat: 85176990 SKU: AT-MC101XL-60
Pricing and stock details are available to registered users only.
 Add to compare
Device TypeFibre media converter
Form FactorExternal
Connectivity TechnologyWired
Cabling Type100Base-FX, 100Base-TX
Data Link Protocol10Mb LAN
Data Transfer Rate100 Mbps
Optical Wave Length1310 nm
Max Transfer Distance2 km
Status IndicatorsPort duplex mode, power, link OK, link/activity, MissingLink
FeaturesAuto-negotiation, MissingLink, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, fanless
Compliant StandardsIEEE 802.3u, IEEE 802.1Q
Interfaces1 x Ethernet 100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-FX - ST multi-mode female x 2
Rack Mounting KitOptional
Compliant StandardsFCC Class B certified, CSA, UL, TUV, cUL, RoHS
Power DeviceExternal power adapter
Voltage RequiredAC 120/230 V (50/60 Hz)
Power Consumption Operational6 Watt
Width10.5 cm
Depth9.5 cm
Height2.5 cm
Weight294 g
Min Operating Temperature0 °C
Max Operating Temperature40 °C
Humidity Range Operating5 - 95% (non-condensing)
