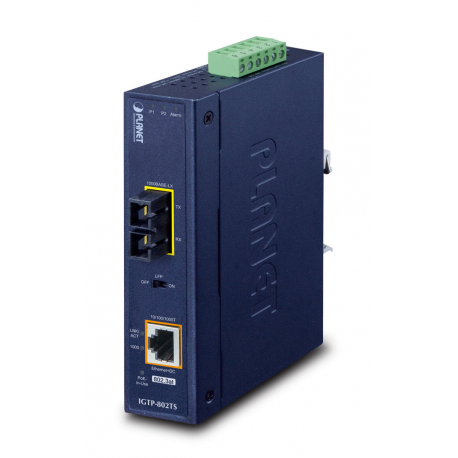

PLANET IGTP-802TS - Fibre media converter - GigE - 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T - SC single-mode / RJ-45 - up to 20 km - 1310 nm - TAA Compliant
images are for illustrative purposes only
New
Article: 3009816 Intrastat: 85176990 SKU: IGTP-802TS
Pricing and stock details are available to registered users only.
| Device Type | Fibre media converter |
| Form Factor | Wall / DIN rail mountable |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 20 km |
| Status Indicators | PoE, link/activity, fault, power 1, power 2 |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, built-in DIP switch, 6KV ESD Protector, Back Pressure Support, 9 KB Jumbo Frame |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Interfaces | 1 x Ethernet 1000Base-LX - SC single-mode x 2 ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45 - 30 W ¦ 1 x relay (output) |
| Compliant Standards | Plug and Play, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 A, IP30 |
| TAA Compliant | Yes |
| Power Over Ethernet (PoE) | PoE+ |
| Voltage Required | AC 24 / DC 12-48 V |
| Width | 13.5 cm |
| Depth | 8.7 cm |
| Height | 3.2 cm |
| Weight | 416 g |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
