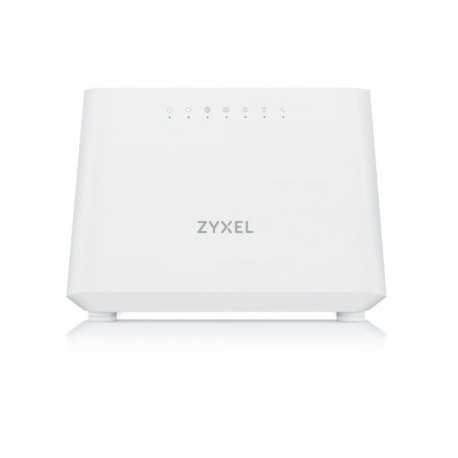

Zyxel DX3301-T0 - Wi-Fi system (router) - MPro Mesh Solutions - DSL modem - GigE - 802.11a / b / g / n / ac / ax - Dual Band - VoIP phone adapter
images are for illustrative purposes only
New
Article: 1911605 Intrastat: 85176200 SKU: DX3301-T0-EU01V1F
Pricing and stock details are available to registered users only.
| Device Type | Wi-Fi system - MPro Mesh Solutions - 4-port switch (integrated) |
| Wi-Fi System Components | Router |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Capacity | Maximum number of configured SSIDs: 4 |
| Network / Transport Protocol | TCP/IP, PPPoE, PPPoA, DHCP, DDNS, IPv4, IPv6 |
| Routing Protocol | IGMPv2, IGMP |
| Remote Management Protocol | SNMP, TR-069, TR-181 i2 |
| Wi-Fi Rating | AX1800 |
| Mesh Networking | MPro Mesh Solutions |
| Features | NAT support, Stateful Packet Inspection (SPI), MAC address filtering, Wi-Fi Multimedia (WMM) support, Auto Channel Select (ACS), Quality of Service (QoS), Wi-Fi Protected Setup (WPS), IPSec passthrough, DHCP server, port forwarding, reset button, DHCP relay, DHCP client, dual-stream (2x2), Denial of Service (DoS), IGMP proxy, Type of Service (ToS), MU-MIMO technology, beamforming technology, Wireless Scheduler, ICMP blocking, Orthogonal Frequency Division Multiple Access (OFDMA), WPS button, EasyMesh, Interactive Voice Response (IVR), Wi-Fi on/off button, wireless output power management, Intra-BSS traffic block, tag/tag based VLAN, VLAN to ETH port mapping, bridged/routed VLAN, IP policy routing, multi-to-multi NAT, remote firmware upgrade |
| Compliant Standards | IEEE 802.1Q, ANSI T1.413 |
| Status Indicators | Power, phone, WAN, LAN, WPS, Internet, 5 GHz, 2.4 GHz |
| Type | DSL modem |
| Digital Signaling Protocol | ADSL, VDSL, ADSL2, ADSL2+, VDSL2 |
| Protocols & Specifications | ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.992.5, ITU G.993.1, ITU G.993.2, ITU-T G.vectoring, ITU G.992.3 |
| VoIP Functionality | VoIP phone adapter |
| VoIP Protocols | SIP v2, RTCP, RTP, SDP |
| Voice Codecs | G.722, G.729, G.726, G.711a-law, G.711µ-law |
| Telephony Interfaces | 2 phone (FXS) |
| IP Telephony Features | Comfort noise generation (CNG), voice activity detection (VAD), echo cancellation (G.168), call forwarding, Caller ID, call waiting, automatic fax/modem detection and pass-through, call transfer, dynamic jitter buffer, 3-way conferencing, Do-not-disturb (DND) support, RFC 3261 support, Call Hold/Retrieve, DTMF inband, DTMF out-of-band, RFC 2327 support, dial planner, RFC 1889 support, RFC 1890 support, DTMF detection, IP bandwidth management, phonebook, T.38 FAX, on hook, off hook and flash detection |
| Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ Phone line: 2 x FXS - RJ-11 ¦ 1 x DSL - RJ-11 |
| Power Device | External power adapter |
| Cables Included | 1 x network cable ¦ 1 x phone cable |
| Localisation | Europe |
| Width | 22 cm |
| Depth | 3.5 cm |
| Height | 15.3 cm |
| Weight | 387 g |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
