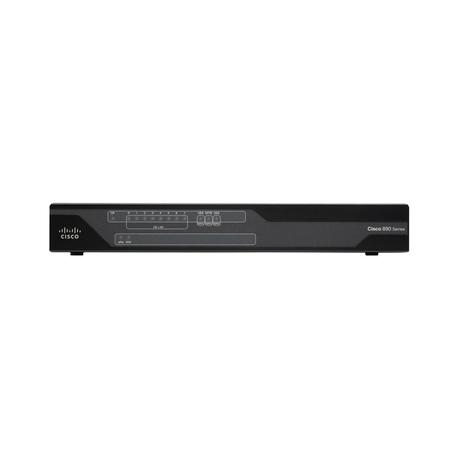

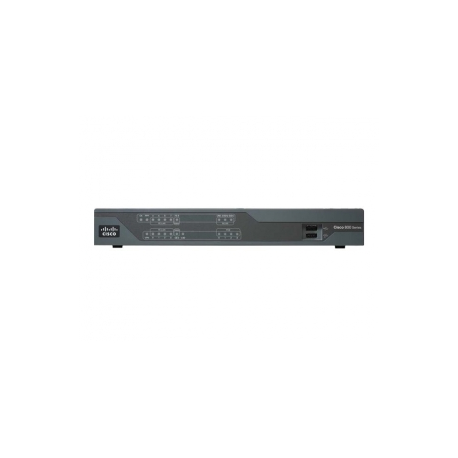

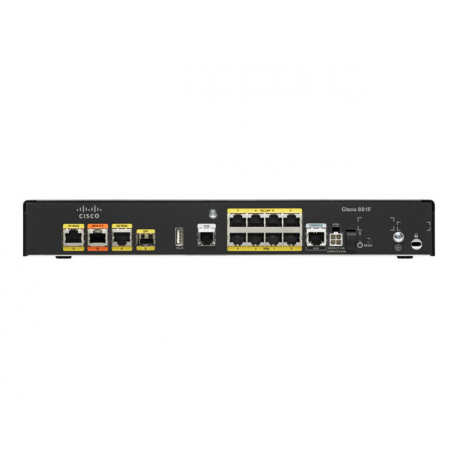

Cisco 891F - Router - ISDN / Mdm - 8-port switch - GigE - rack-mountable
images are for illustrative purposes only
New
Article: 1062560 Intrastat: 85176200 SKU: C891F-K9
Pricing and stock details are available to registered users only.
Cisco 891F - Router - ISDN/Mdm - 8-port switch - GigE - rack-mountable
| Device Type | Router - 8-port switch (integrated) |
| Enclosure Type | Desktop, rack-mountable - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | IPSec VPN tunnels: 50 |
| Network / Transport Protocol | L2TP, RSVP, ICMP/IP, IPSec, FTP, DHCP, DNS, L2TPv3, DDNS, RTP |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, GRE, OSPFv3, policy-based routing (PBR), BGP-4+, WCCP, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI |
| Encryption Algorithm | DES, Triple DES, SSL, PKI, 128-bit AES, 192-bit AES, 256-bit AES |
| Authentication Method | RADIUS, TACACS+ |
| Features | Firewall protection, NAT support, power over Ethernet (PoE), auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, dynamic DNS server, DiffServ support, MAC address filtering, IPv6 support, High Availability, Intrusion Prevention System (IPS), Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, fanless, DHCP relay, DHCP client, Class of Service (CoS), Flexible NetFlow (FNF), security lock slot (cable lock sold separately), DiffServ Code Point (DSCP) support, Storm Control |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af, IEEE 802.1x, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN 61000-6-1, KN22, EN 300386 |
| RAM | 512 MB (installed) / 1 GB (max) |
| Flash Memory | 256 MB |
| Type | ISDN / analogue modem combo |
| Protocols & Specifications | ITU V.92 |
| Interfaces | Management: 1 x console - RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x SFP (mini-GBIC) ¦ WAN: 1 x BRI ST ¦ WAN: 1 x 10Base-T/100Base-TX - RJ-45 ¦ WAN: 1 x modem - RJ-11 |
| Power Device | External power adapter - 60 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| OS Provided | Cisco IOS Advanced IP services |
| Width | 32.5 cm |
| Depth | 24.9 cm |
| Height | 4.4 cm |
| Weight | 2.5 kg |
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 85% (non-condensing) |
