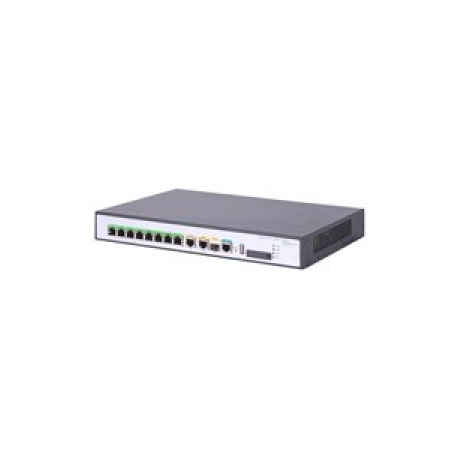

Router - 8-port switch (integrated)

Rack-mountable - 1U

Wired

Ethernet, Fast Ethernet, Gigabit Ethernet

1 Gbps

Throughput (64-byte packet size): up to 300 Kpps

VPN tunnels: 100 ¦ IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000 ¦ IPv4 forwarding table entries: 10000 ¦ IPv6 forwarding table entries: 5000

TCP/IP, UDP/IP, L2TP, RSVP, APPN, NTP, ICMP/IP, IPSec, AAL5, ARP, FTP, DHCP, PAP, SFTP

OSPF, EGP, RIP, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, IGMPv3, GRE, OSPFv3, Bidirectional PIM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, RIPng, BGP-4+, MPLS, CIDR, BGP+, URPF

SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, CLI

DES, Triple DES, MD5, AES, TLS, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES

Secure Shell (SSH), RADIUS, PAP, CHAP, TACACS+, Secure Shell v.2 (SSH2)

Layer 3 switching, Layer 2 switching, NAT support, VPN support, VLAN support, traffic shaping, port mirroring, Intrusion Prevention System (IPS), Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunnelling, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), Link Fragmentation and Interleaving (LFI), PoE+, Unicast Reverse Path Forwarding (URPF), DHCP relay, Management Information Base (MIB), port isolation, packet storm protection, Class of Service (CoS), Loopback, Dynamic Virtual Private Network (DVPN), Multicast Border Gateway Protocol (MBGP), Ethernet over IP (EtherIP), Type of Service (ToS), Group Domain Virtual Private Network (GDVPN), random early detection (RED), ICMP Router Discovery Protocol (IRDP), Management Information Base (MIB) II, Source-Specific Multicast (SSM)

IEEE 802.2, IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, ETSI, EN55022, ICES-003 Class B, FCC Part 68 / CS03 Issue 8, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FDA, FCC CFR47 Part 15 B, EN 60825-1, X.509, AS/NZS 60950, ANSI C63.4, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005, EN 61000-4-11:2004, EMC 2004/108/EC, EN 300 386 V1.3.3, AS/NZS CISPR 22 Class B, CAN/CSA-C22.2 No. 60950-1, EN 55024:1998+A1:2001+A2:2003

1 x Marvell A370 800 MHz

1 GB DDR3 SDRAM

256 MB

System, VPN

WAN: 1 x Ethernet 1000 - SFP (mini-GBIC) ¦ WAN: 1 x Ethernet 1000 - RJ-45 ¦ LAN: 8 x Ethernet 1000 - RJ-45 ¦ 2 x USB 2.0 ¦ 1 x console - RJ-45

Internal power supply

AC 120/230 V

22 Watt

1 x console cable

Comware v7

26.6 cm

16.1 cm

4.36 cm

1 kg

Limited warranty - 1 year

0 °C

45 °C

5 - 92% (non-condensing)
