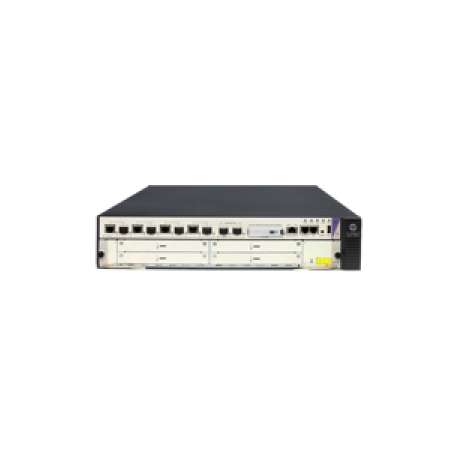

HPE HSR6602-XG - Router - 4-port switch / 2-port SFP+ switch - 10 GigE - rack-mountable
HPE HSR6602-XG - Router - 4-port switch / 2-port SFP+ switch - 10 GigE - rack-mountable
Manufacturer
•HPE
Reference
•JG354A
Article
•608532
Intrastat
•85176200
Shipping weight
•0.0121 kg
Device Type
Router - 4-port switch / 2-port SFP+ switch (integrated)
Enclosure Type
Rack-mountable - modular - 2U
Connectivity Technology
Wired
Data Link Protocol
Gigabit Ethernet, 10 Gigabit Ethernet
Performance
Switching fabric bandwidth: 80 Gbps ¦ Throughput: up to 15 Mpps
Capacity
IPv4 routing table entries: 4000000 ¦ Forwarding table entries: 1000000 ¦ IPv6 routing table entries: 2000000
Network / Transport Protocol
TCP/IP, UDP/IP, NTP, ICMP/IP, ARP, FTP, BOOTP, DHCP, DNS
Routing Protocol
OSPF, RIP, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, OSPFv3, static IPv4 routing, MLD, BGP-4+
Remote Management Protocol
SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI
Encryption Algorithm
AES, SSL, TLS
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
NAT support, MPLS support, sFlow, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Committed Access Rate (CAR), MPLS VPN, Unicast Reverse Path Forwarding (URPF), LLDP support, Loopback, Dynamic Virtual Private Network (DVPN), Network Quality Analyzer (NQA), IP Fast Reroute Framework (FRR), Multicast Source Discovery Protocol (MSDP), Multicast Border Gateway Protocol (MBGP)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1AX, FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, UL 1950, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, AS/NZS 60950-1, ICES-003 Class A, RoHS, EN 60950-1, WEEE, EN 60825, FCC CFR47 Part 15 B, GOST-R, AS/NZS 60950, GB 9254 Class A, IEC 60825, VCCI Class A, KN22, KN24, EN 300 386
Processor
1 x PowerPC 1500 MHz
RAM
4 GB SDRAM
Flash Memory
520 MB
Interfaces
LAN: 4 x 1000Base-T - RJ-45 ¦ Serial: 2 x console - RJ-45 ¦ Management: 1 x RJ-45 ¦ USB 2.0: 1 x 4 pin USB Type A ¦ LAN: 2 x 10Gb Ethernet - SFP+
Expansion Slots
1 (total) / 1 (free) x expansion slot ¦ 1 (total) / 0 (free) x CompactFlash
Voltage Required
AC 120/230 V (50/60 Hz)
Width
44 cm
Depth
48 cm
Height
8.8 cm
Weight
12.1 g
Service & Support
Limited warranty - 1 year
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 95% (non-condensing)
