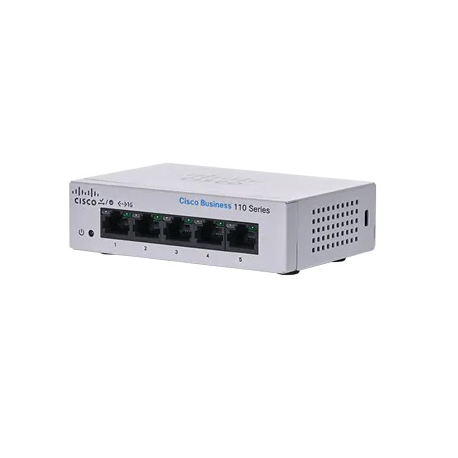

Cisco Business 110 Series 110-5T-D - Switch - unmanaged - 5 x 10 / 100 / 1000 - desktop, rack-mountable, wall-mountable - DC power

  • CBS110 Unmanaged 5-port GE, Desktop, Ext PS
  • CBS110 Unmanaged 5-port GE, Desktop, Ext PS
images are for illustrative purposes only

New

Article: 1761308 Intrastat: 85176200 SKU: CBS110-5T-D-EU
Pricing and stock details are available to registered users only.
 Add to compare
Device TypeSwitch - 5 ports - unmanaged
Enclosure TypeDesktop, rack-mountable, wall-mountable
SubtypeGigabit Ethernet
Ports5 x 10/100/1000
PerformanceForwarding performance (64-byte packet size): 7.4 Mpps ¦ Switching capacity: 10 Gbps
CapacityBuffer capacity (MB): 1
MAC Address Table Size2K entries
Jumbo Frame Support9216 bytes
FeaturesFlow control, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), Cable Diagnostics Function, fanless, Energy Efficient Ethernet, Head-of-line (HOL) blocking, Weighted Round Robin (WRR), loopback detection, security slot (Kensington security lock compatible)
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
ProcessorX ARM: 400 MHz
RAM64 MB
Flash Memory8 MB
Status IndicatorsPower, link/activity
Interfaces5 x 10/100/1000 Base-T RJ-45
Power Provided1 A
Voltage RequiredDC 12 V
Power Consumption Operational2.74 Watt
Included AccessoriesMounting kit
MTBF4,243,002 hours
Compliant StandardsFCC Class B certified, UL 60950, CSA 22.2, FCC CFR47 Part 15 A
LocalisationUnited Arab Emirates, Indonesia, Israel, South Africa, Vietnam, Ukraine, Egypt, Thailand, Philippines, Korea, Russia, Switzerland, Turkey, European Economic Area
Width11 cm
Depth7.5 cm
Height3 cm
Weight230 g
Service & SupportLimited warranty - lifetime ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Min Operating Temperature0 °C
Max Operating Temperature40 °C
Humidity Range Operating10 - 90% (non-condensing)
Min Storage Temperature-20 °C
Max Storage Temperature70 °C
Humidity Range Storage5 - 90% (non-condensing)
