Dell EMC PowerSwitch S5212F-ON - Switch - Managed - 12 x 25 Gigabit SFP28 + 3 x 100 Gigabit QSFP28 - rack-mountable - with 1 year Premier Support with Next Business Day Hardware Warranty

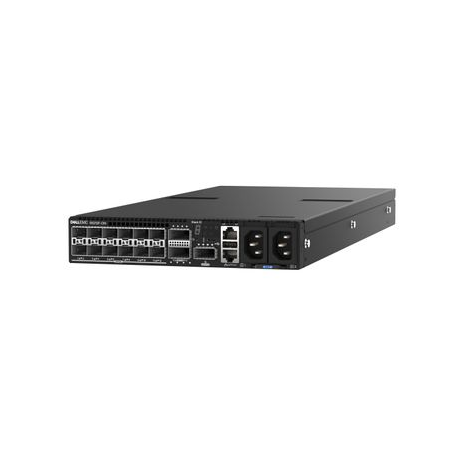

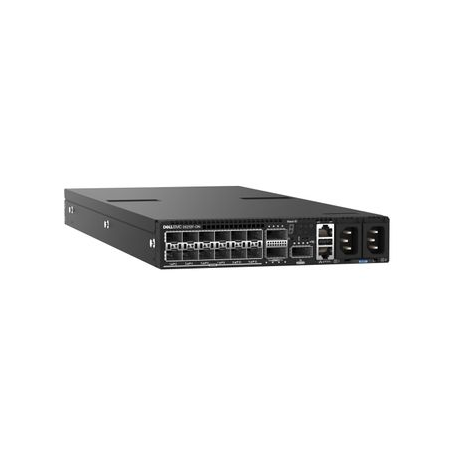

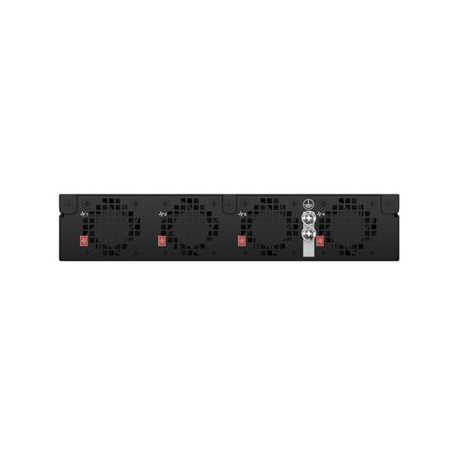

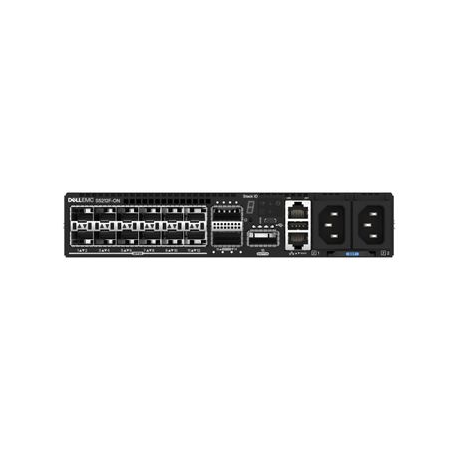

images are for illustrative purposes only
New
Article: 1680917 Intrastat: 85176200 SKU: 210-APHW
Pricing and stock details are available to registered users only.
| Device Type | Switch - 12 ports - Managed |
| Bundled Services | 1 year Premier Support with Next Business Day Hardware Warranty |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet |
| Ports | 12 x 25 Gigabit SFP28 + 3 x 100 Gigabit QSFP28 |
| Performance | Switching capacity: 2.16 Tbps |
| Capacity | MAC addresses: 160000 ¦ IPv4 routes: 128000 ¦ IPv6 routes: 64000 ¦ Link aggregation groups: 16 ¦ Layer 2 VLANs: 4000 |
| Routing Protocol | OSPF, RIP, IS-IS, BGP, IGMP, MSDP, IPv4-to-IPv6 Multicast |
| Remote Management Protocol | SNMP, CLI |
| Features | Reverse airflow support |
| Compliant Standards | IEEE 802.1D, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1AX |
| Interfaces | 12 x 25Gbit LAN SFP28 ¦ 3 x 100Gbit LAN QSFP28 ¦ 1 x serial (RS-232) RJ-45 management |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, EN 60825-1, EN 60825-2, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, ICES-003 issue 4 Class A, EN 300 386 V1.4.1, AS/NZS CISPR22:2006 Class A, FDA 21CFR1040.10, EN 55022:2006+A1:2007 Class A, FDA 21CFR1040.11, VCCI V-3/2009 Class A, UL/CSA60950-1 (2nd Edition), EN 55024:1998+A1:2001+A2:2003 |
| OS Required | Dell Networking OS 10 |
| Width | 19.98 cm |
| Depth | 40.64 cm |
| Height | 4.36 cm |
| Weight | 4.5 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
