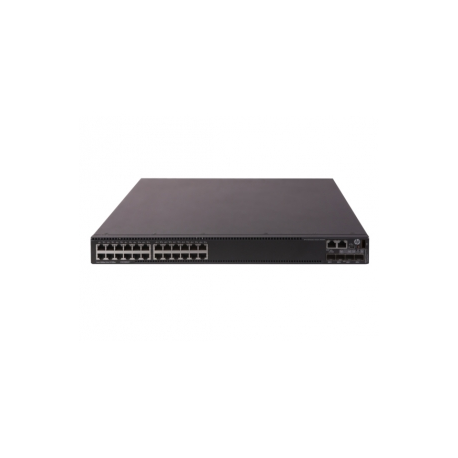

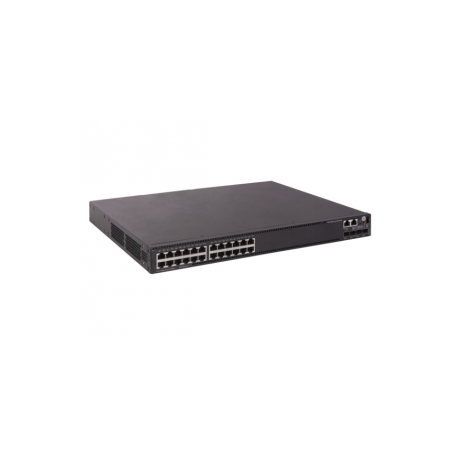

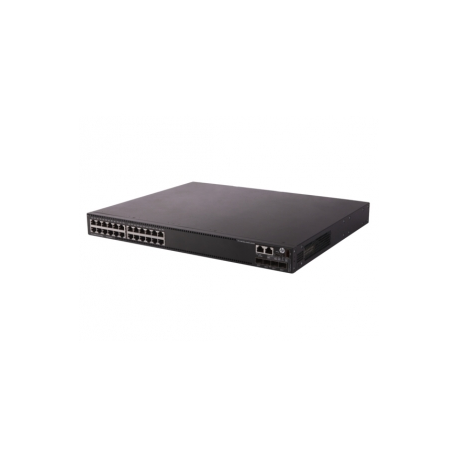

HPE 5130 24G PoE+ 4SFP+ 1-slot HI - Switch - Managed - 24 x 10 / 100 / 1000 (PoE+) + 4 x 10 Gigabit SFP+ - rack-mountable - PoE+ (740 W)
HPE 5130 24G PoE+ 4SFP+ 1-slot HI - Switch - Managed - 24 x 10 / 100 / 1000 (PoE+) + 4 x 10 Gigabit SFP+ - rack-mountable - PoE+ (740 W)
Manufacturer
•HPE
Reference
•JH325A
Article
•1295762
Intrastat
•85176200
Shipping weight
•8.94 kg
Device Type
Switch - 24 ports - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
PoE Budget
740 W
Performance
Throughput: up to 154.8 Mpps ¦ Routing/switching capacity: 208 Gbps
Capacity
Simultaneous VLANs: 4094 ¦ IPv4 routing table entries: 32768 ¦ IPv6 routing table entries: 16384
Jumbo Frame Support
9KB
Routing Protocol
RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, IGMPv3, MSDP, MLD
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH-2, CLI, SCP
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS
Features
Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, Weighted Round Robin (WRR) queuing, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), DHCP server, Device Link Detection Protocol (DLDP) support, Equal-Cost Multipath (ECMP), STP Root Guard, IPv4 support, LLDP support, Smart Link Pass-Through, dynamic ARP protection, DHCP protection, port isolation, non blocking ports, Strict Priority (SP), Generic Attribute Registration Protocol (GARP), Intelligent Resilient Framework Technology (IRF), OpenFlow support, IP source guard
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az
RAM
2 GB SDRAM
Flash Memory
512 MB
Interfaces
24 x 1000Base-T RJ-45 ¦ 4 x 10Gbit LAN SFP+ ¦ 1 x serial (console) ¦ 1 x USB 2.0 ¦ 1 x management (LAN) RJ-45
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Installed Modules Qty (Max)
1 (installed) / 1 (max)
Power Device
Internal power supply (not installed)
Max Supported Qty
2
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
650 Watt
Rack Mounting Kit
Included
Compliant Standards
VCCI, EN 61000-3-2, AS/NZS 60950-1, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, GB 4943, ANSI C63.4-2009, EN 60825-2, EN 61000-3-3:2008, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, EN 300 386 V1.6.1, VCCI V-3/2013.04 Class A, CISPR 24:2010, EN 55022:2010 Class A, FCC CFR47 Part 15 A, EN 61000-4.4:2012, CAN/CSA-C22.2 No. 60950-1
Width
43.99 cm
Depth
46 cm
Height
4.37 cm
Weight
12.5 kg
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 95% (non-condensing)
