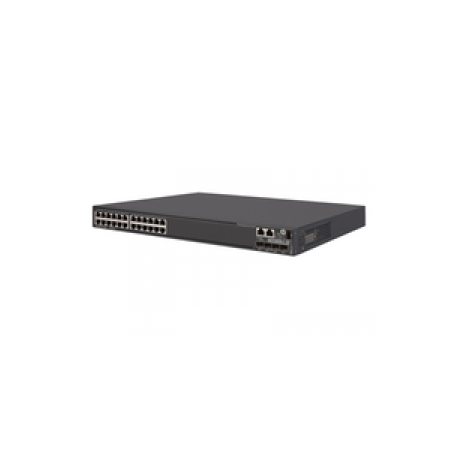

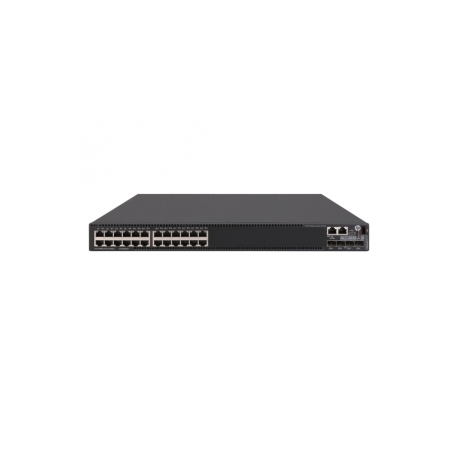

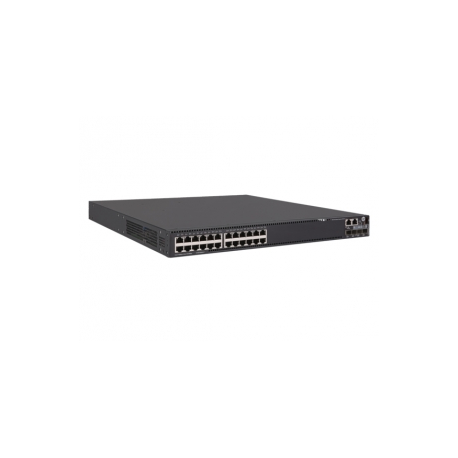

HPE 5510 24G PoE+ 4SFP+ HI 1-slot Switch - Switch - Managed - 24 x 10 / 100 / 1000 (PoE+) + 4 x 10 Gigabit SFP+ - rack-mountable - PoE+ (740 W)
HPE 5510 24G PoE+ 4SFP+ HI 1-slot Switch - Switch - Managed - 24 x 10 / 100 / 1000 (PoE+) + 4 x 10 Gigabit SFP+ - rack-mountable - PoE+ (740 W)
Manufacturer
•HPE
Reference
•JH147A
Article
•1294872
Intrastat
•85176200
Shipping weight
•8.84 kg
Device Type
Switch - 24 ports - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
PoE Budget
740 W
Performance
Routing/switching capacity: 288 Gbps ¦ Throughput: 214 Mpps
Jumbo Frame Support
Yes
Routing Protocol
OSPF, RIP, IS-IS, BGP, VRRP, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, ECMP, RIPng, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD)
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, CLI
Features
Layer 3 switching, DHCP support, ARP support, MPLS support, auto-uplink (auto MDI/MDI-X), IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Rapid Ring Protection Protocol (RRPP) support, Equal-Cost Multipath (ECMP), Bidirectional Forwarding Detection (BFD), STP Root Guard, IPv4 support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1x, IEEE 802.1ad, IEEE 802.1ab (LLDP)
RAM
2 GB SDRAM
Flash Memory
512 MB
Interfaces
24 x 1000Base-T RJ-45 ¦ 1 x console RJ-45 management ¦ 4 x 10Gbit LAN SFP+
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Installed Modules Qty (Max)
0 (installed) / 1 (max)
Power Device
Internal power supply (not installed)
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Rack Mounting Kit
Included
Compliant Standards
RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, EN 60825-2, CAN/CSA-C22.2 No. 60950-1
Width
43.99 cm
Depth
46 cm
Height
4.37 cm
Weight
12.5 kg
Service & Support
Limited warranty - lifetime
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
