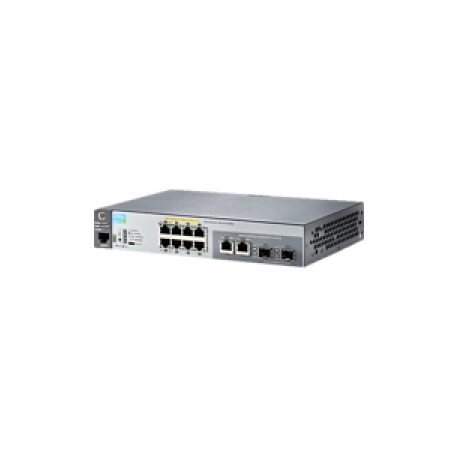

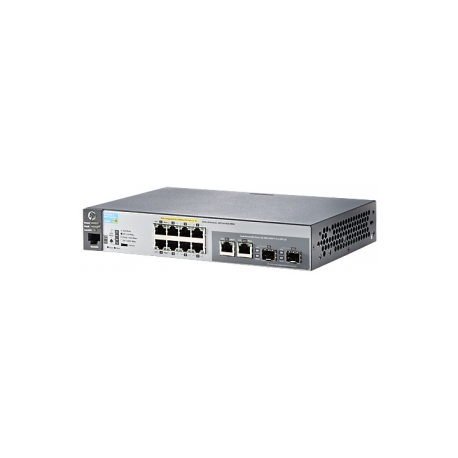

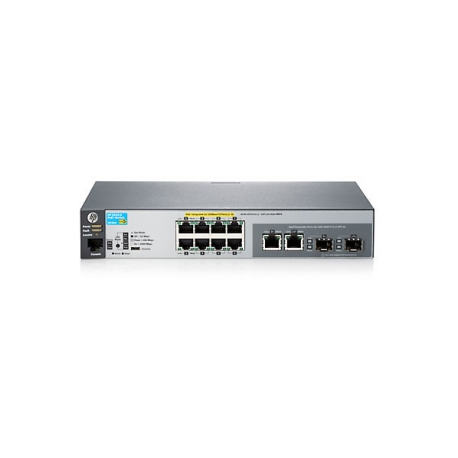

Switch - 8 ports - Managed

Desktop, rack-mountable, wall-mountable 1U

Fast Ethernet

8 x 10/100 + 2 x Gigabit SFP + 2 x 10/100/1000

PoE+

Throughput: 4.1 Mpps ¦ Switching capacity: 5.6 Gbps

MAC addresses: 16000

16000 entries

9220 bytes

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI

SSL

RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), STP Root Guard, LLDP support, Class of Service (CoS), Generic Attribute Registration Protocol (GARP)

IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az

1 x ARM: 800 MHz

256 MB DDR3 SDRAM

128 MB

2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x SFP (mini-GBIC) ¦ 1 x management RJ-45 ¦ 8 x 10Base-T/100Base-TX - RJ-45 PoE+

Internal power supply

AC 120/230 V (50/60 Hz)

FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, CSA C22.2 No. 60950-1

English / Europe

25.4 cm

15.95 cm

4.45 cm

910 g

Limited warranty - advance parts replacement - lifetime ¦ Limited warranty - lifetime - response time: next business day ¦ Limited warranty - phone consulting - lifetime ¦ Limited warranty - software application support - lifetime

0 °C

45 °C

15 - 95% (non-condensing)

-40 °C

70 °C

15 - 90% (non-condensing)
