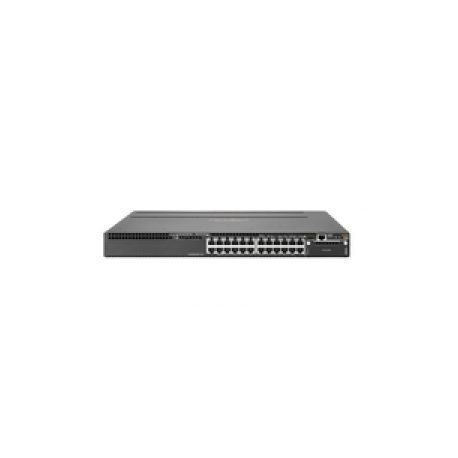

HPE Aruba 3810M 24G 1-slot Switch - Switch - L3 - Managed - 24 x 10 / 100 / 1000 - rack-mountable
HPE Aruba 3810M 24G 1-slot Switch - Switch - L3 - Managed - 24 x 10 / 100 / 1000 - rack-mountable
Manufacturer
•HPE
Reference
•JL071A
Article
•1299031
Intrastat
•85176200
Shipping weight
•8.5 kg
This Aruba 3810 switch is an excellent mobile campus access solution for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high-speed IEEE 802.11ac devices, the Aruba 3810 will prepare your network for tomorrow. Right-size deployment and back haul capacity with modular uplinks. Full PoE+ provisioning available on 24-ports. Dual, redundant, hot-swappable power supplies and advanced backplane stacking technology delivers resiliency and scalability in a convenient 1U form factor.
Device Type
Switch - 24 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000
Performance
Routing/switching capacity: 160 Gbps ¦ Switching fabric bandwidth: 169 Gbps ¦ Latency (1 Gbps): 2.8 µs ¦ Latency (10 Gbps): 1.8 µs ¦ Throughput (64-byte packet size): up to 95.2 Mpps ¦ Latency (40 Gbps): 1.5 µs
Capacity
IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000
MAC Address Table Size
64K entries
Routing Protocol
OSPF, BGP-4, RIP-1, RIP-2, BGP, OSPFv2, OSPFv3
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, SSH-2, XRMON
Encryption Algorithm
SSL
Authentication Method
RADIUS, TACACS+
Features
Flow control, DHCP support, BOOTP support, VLAN support, Syslog support, DiffServ support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), LLDP support, Link Aggregation Control Protocol (LACP)
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1AX
Processor
2
RAM
6 MB DDR3 SDRAM
Flash Memory
1 GB
Interfaces
24 x 1000Base-T RJ-45 ¦ 1 x console RJ-45 ¦ 1 x management (LAN) RJ-45 ¦ 1 x micro-USB Type B ¦ 1 x RJ-45
Expansion Slots
1 (total) / 1 (free) x Expansion Slot ¦ 1 (total) / 1 (free) x Stacking Module
Power Device
Internal power supply (not installed)
Max Supported Qty
2
Included Accessories
Fan tray
Compliant Standards
FCC Class A certified, CISPR 22 Class A, EN 60950, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-8, IEC 60950, UL 60950, UL 60950-1, EN 60825, EN 61000-3-3:2008, CAN/CSA C22.2 No. 60950, EN 61000-3-2:2006+A1:2009+A2:2009, VCCI Class A, EN55022:2010, EN 55024:2010, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2013, CAN/CSA-C22.2 No. 60950-1
Width
44.25 cm
Depth
43.13 cm
Height
4.39 cm
Weight
5.79 kg
Service & Support
Limited warranty - lifetime
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
15 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
15 - 90% (non-condensing)
