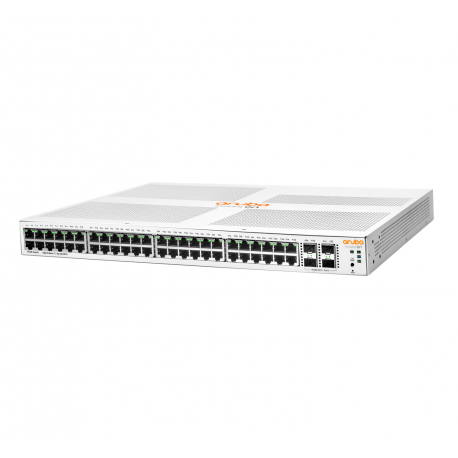

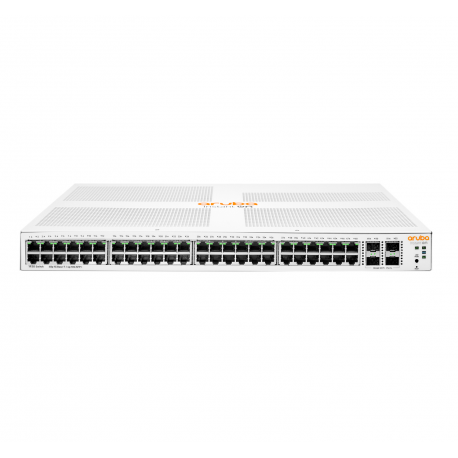

HPE Aruba Instant On 1930 48G Class4 PoE 4SFP / SFP+ 370W Switch - Switch - L3 - Managed - 48 x 10 / 100 / 1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ - rack-mountable - PoE (370 W)

  • HPE Aruba IOn 1930 48G 4SFP+ 370W IOn 1930 48G 4SFP+ 370W Switch EU en
  • HPE Aruba IOn 1930 48G 4SFP+ 370W IOn 1930 48G 4SFP+ 370W Switch EU en
  • HPE Aruba IOn 1930 48G 4SFP+ 370W IOn 1930 48G 4SFP+ 370W Switch EU en
  • HPE Aruba IOn 1930 48G 4SFP+ 370W IOn 1930 48G 4SFP+ 370W Switch EU en
images are for illustrative purposes only

New

Article: 1737047 Intrastat: 85176200 SKU: JL686A#ABB
Pricing and stock details are available to registered users only.
 Add to compare
Device TypeSwitch - 52 ports - L3 - Managed
Enclosure TypeRack-mountable 1U
SubtypeGigabit Ethernet
Ports48 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE)PoE
PoE Budget370 W
PerformanceSwitching capacity: 176 Gbps ¦ Throughput: 130.95 Mpps ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.2 µs
CapacityLink aggregation ports: 8 ¦ IPv4 routes (static): 32 ¦ VLANs supported: 256 ¦ Access Control Entries (ACEs) per ACL: 480 ¦ Packet buffer size: 1.5 MB
MAC Address Table Size16000 entries
Jumbo Frame Support9216 bytes
Routing ProtocolStatic IP routing
Remote Management ProtocolSNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS
Encryption AlgorithmSSL
Authentication MethodRADIUS
FeaturesFlow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Trusted Platform Module (TPM), LLDP support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Class of Service (CoS), BPDU Filter, PoE Class 4
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af
Processor1 x ARM Cortex-A9: 800 MHz
RAM512 MB SDRAM
Flash Memory256 MB
Status IndicatorsPort status, power, PoE
Interfaces48 x 10/100/1000 Base-T RJ-45 PoE - 370 W ¦ 4 x 1/10Gbit LAN SFP+
Power DeviceInternal power supply
Voltage RequiredAC 120/230 V (50/60 Hz)
Power Consumption Operational460 Watt
MTBF57 years
Compliant StandardsVCCI, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, EN 60825-1, CNS 13438, EN 55024:2010, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1:2014, EN 55032:2015+AC:2016, CISPR 35, SSL, IEC 62368-1: 2014 Second Edition, EN 55035:2017
LocalisationEnglish / Europe
Width44.25 cm
Depth32.26 cm
Height4.39 cm
Weight4.52 kg
Service & SupportLimited warranty - lifetime
Min Operating Temperature0 °C
Max Operating Temperature40 °C
Humidity Range Operating15 - 95% (40 °C)
Min Storage Temperature-40 °C
Max Storage Temperature70 °C
Humidity Range Storage15 - 95% (60 °C)
