HPE OfficeConnect 1850 6XGT and 2XGT/SPF+ - Switch - Managed - 6 x 1 Gigabit / 10 Gigabit Ethernet + 2 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ - desktop, rack-mountable, wall-mountable

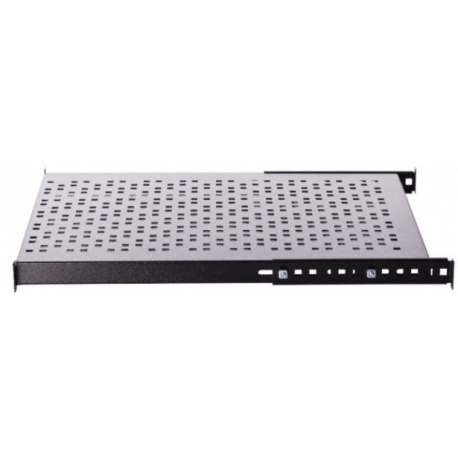

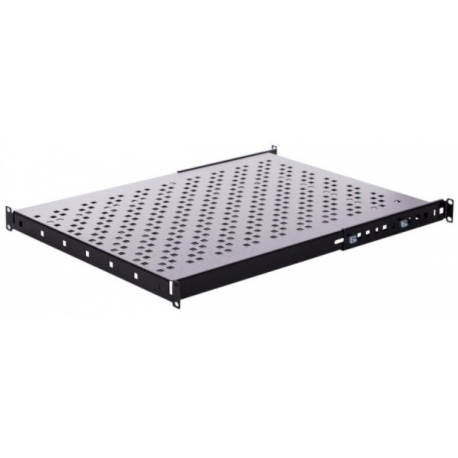

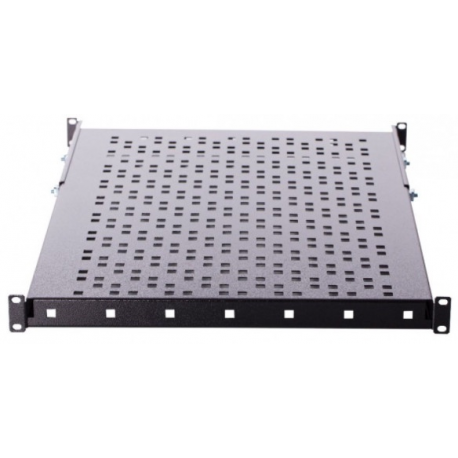

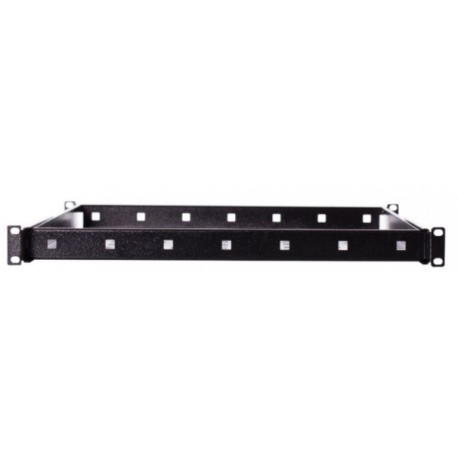

  • NETRACK 19inch 1U / 600 mm shelf reinforced black
  • NETRACK 19inch 1U / 600 mm shelf reinforced black
  • NETRACK 19inch 1U / 600 mm shelf reinforced black
  • NETRACK 19inch 1U / 600 mm shelf reinforced black
images are for illustrative purposes only

New

Article: 1814907 Intrastat: 85176200 SKU: 119-100-600-222
Pricing and stock details are available to registered users only.
 Add to compare
Device TypeSwitch - 6 ports - Managed
Enclosure TypeDesktop, rack-mountable, wall-mountable 1U
Subtype10 Gigabit Ethernet
Ports6 x 1 Gigabit / 10 Gigabit Ethernet + 2 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+
PerformanceThroughput: 119 Mpps Switching capacity: 160 Gbps Latency (100 Mbps): 6.8 µs Latency (1000Base-T): 2.9 µs Latency (10 Gbps): 6.8 µs
MAC Address Table Size16000 entries
Jumbo Frame Support9220 bytes
Remote Management ProtocolSNMP 1, SNMP 2c, HTTPS
Encryption AlgorithmSSL
FeaturesFull duplex capability, Layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), port mirroring, half duplex mode, full duplex mode, Quality of Service (QoS), DHCP client, 2MB packet buffer, Network Timing Protocol (NTP)
Compliant StandardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.3at, IEEE 802.3az
Processor1 x ARM Cortex-A9: 600 MHz
RAM128 MB DDR3 SDRAM
Interfaces6 x 1000Base-T RJ-45 2 x 10 Gigabit Ethernet / 10 Gigabit Ethernet SFP+ RJ-45/SFP+
Power DeviceInternal power supply
Voltage RequiredAC 120/230 V (50/60 Hz)
Power Consumption Operational42.8 Watt
Rack Mounting KitIncluded
MTBF64.5 years
Compliant StandardsCISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, UL 60950, RoHS, IEC 60950-1, EN 60950-1, WEEE, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, CNS 13438, ICES-003 issue 5 Class A, EN 60825-1:2007, FCC CFR47 Part 15 B Class A, EN 55032:2015
LocalisationEnglish / Europe
Width25.3 cm
Depth26.07 cm
Height4.4 cm
Weight1.74 kg
Service & SupportLimited warranty - advance parts replacement - lifetime - shipment - response time: next business day Technical support - phone consulting - lifetime - shipment
Min Operating Temperature0 °C
Max Operating Temperature40 °C
Humidity Range Operating15 - 95% (non-condensing)
Min Storage Temperature-40 °C
Max Storage Temperature70 °C
Humidity Range Storage15 - 95% (non-condensing)
