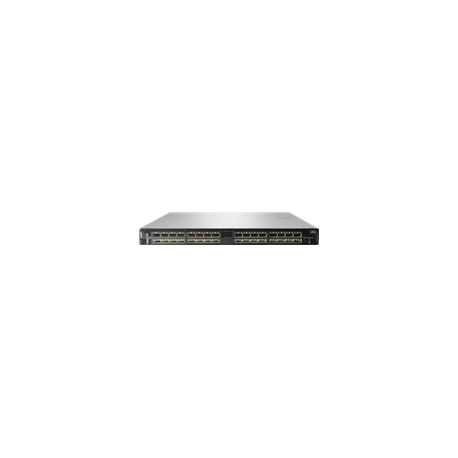

Switch - 16 ports - L3 - Managed

Rack-mountable 1U

100 Gigabit Ethernet

16 x 100 Gigabit QSFP28

Switching capacity: 6.4 Tbps ¦ Processing rate: 9.52 Bpps ¦ Cut-through latency: 300 ns

SNMP, Telnet, SSH, CLI

RADIUS, TACACS+, LDAP

IGMP snooping, port mirroring, store and forward, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, Access Control List (ACL) support, Quality of Service (QoS), Bidirectional Forwarding Detection (BFD), IPv4 support, LLDP support, DHCP relay, sFlow v5, 802.1x authentication, 16MB packet buffer, OpenFlow support, Protocol-based VLANs support, Storm Control, RDMA over Converged Ethernet (RoCE), random early detection (RED), Explicit Congestion Notification (ECN), Priority-Based Flow Control (PFC), Virtual Extensible LAN (VXLAN), Multi Chassis Link Aggregation Group (MLAG), Open Shortest Path First (OSPF), Root Guard, Loop Guard, Voice VLAN, Top-of-Rack (ToR), STP BPDU Guard, BPDU Filter, Protocol Independent Multicast (PIM), hot swap fan tray

X.509

8 GB

32 MB

System, status, fan

16 x 100Gbit LAN QSFP28 ¦ 16 x 100Gbit LAN QSFP28 additional port option ¦ 1 x USB Type A ¦ 2 x management RJ-45 ¦ 1 x console RJ-45

Internal power supply - hot-plug

2 (installed) / 2 (max)

Yes

1+1

460 Watt

AC 120/230 V (50/60 Hz)

15 Watt

Power-to-port airflow

2 power cords (C13 to C14), 4 intake fan trays, fixed rack mount kit, 2 x PSU cable retainer kit

1 x serial cable

Included

EMC, FIPS 140-2, X.509, EN 61000-4-5:2006, EN 61000-4-11:2004, UL 60950-1:2007, EN 61000-3-3:2013, EN 55024:2010, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, EN 61000-3-2:2014, IEC60950-1:2005, Second edition + Am1:2009 + Am2:2013, VCCI V-3/2015.04 Class A, EN 55032:2012 Class A, ICES-003:2016 issue 6 Class A, LV, TR CU 020/2011, TR CU 004/2011, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011+A2:2013, CAN/CSA C22.2 No. 60950-1:2007+A1:2011+A2:2014, DSTU EN 55032:2014, DSTU EN 60950-1:2014, EN 61000-4-2:2002, EN 61000-4-4:2004+A1:2010, FCC CFR47 Part 15 B 2017 Class A, AS/NZS CISPR32:2015 Class A, KN22:2009 Class A, KN24:2009

42.78 cm

68.6 cm

4.39 cm

11.1 kg

Limited warranty - parts and labour - 3 years - on-site

0 °C

40 °C

10 - 85% (non-condensing)

HPE J2000 Dual IOM 2x100GbE NVMe-oF SFF JBOF Storage, J2000 Dual IOM 6x100GbE NVMe-oF SFF JBOF Storage ¦ HPE Apollo 4200 Gen10 Qumulo Archive Node, 4200 Gen10 Qumulo Hybrid Node, 4200 Qumulo Archive Node, 4200 Qumulo Hybrid Node, 4200 Qumulo Node
