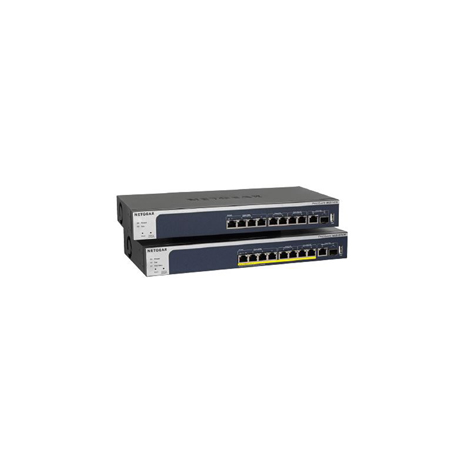

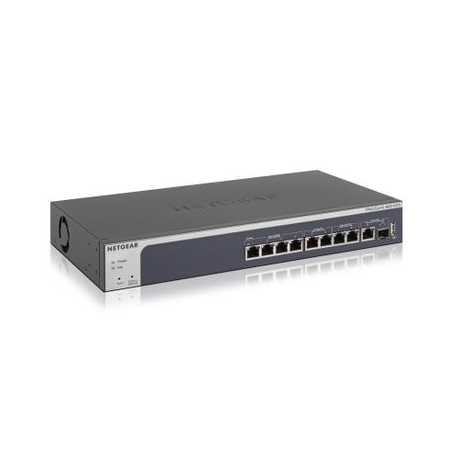

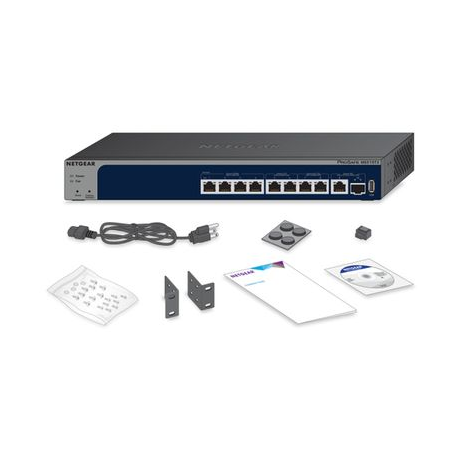

NETGEAR Smart MS510TX - Switch - L3 Lite - smart - 4 x 10 / 100 / 1000 + 2 x 100 / 1000 / 2.5G / 5G + 2 x 100 / 1000 / 2.5G - desktop, rack-mountable

  • 10-P.MULTI GB SMART SWITCH (8-Port Multi-Gigabit Smart Managed Pro Switch mit 2x 10G Kupfer/Fiber Uplinks, aufgegliedert in 2-Po
  • 10-P.MULTI GB SMART SWITCH (8-Port Multi-Gigabit Smart Managed Pro Switch mit 2x 10G Kupfer/Fiber Uplinks, aufgegliedert in 2-Po
  • 10-P.MULTI GB SMART SWITCH (8-Port Multi-Gigabit Smart Managed Pro Switch mit 2x 10G Kupfer/Fiber Uplinks, aufgegliedert in 2-Po
images are for illustrative purposes only

New

Article: 1661761 Intrastat: 85176200 SKU: MS510TX-100EUS
Pricing and stock details are available to registered users only.
 Add to compare
Device TypeSwitch - 8 ports - L3 Lite - smart
Enclosure TypeDesktop, rack-mountable
Subtype10 Gigabit Ethernet
Ports4 x 10/100/1000 + 2 x 100/1000/2.5G/5G + 2 x 100/1000/2.5G
PerformanceBandwidth: 78 Gbps ¦ Latency (10 Gbps): < 2.36 µs ¦ Latency (SFP+): < 2.6 µs ¦ Packet forwarding rate: 58 Mpps
CapacityLAG groups: 8 ¦ MAC addresses: 16000 ¦ ACL entries (ingress): 164 ¦ Virtual interfaces (VLANs): 256 ¦ RP/NDP table: 512 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32 ¦ IGMP multicast groups: 512 ¦ ARP entries: 512 ¦ VLAN routing interfaces: 32 ¦ Jumbo frame size: 10000 ¦ DHCP snooping entries: 1000 ¦ Multicast groups: 512 ¦ Priority queues: 8
MAC Address Table Size16K entries
Routing ProtocolStatic IP routing
Remote Management ProtocolSNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, TFTP
Encryption AlgorithmSSL
Authentication MethodRADIUS
FeaturesIGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI), LACP support, LLDP support, Energy Efficient Ethernet, Class of Service (CoS), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, 1.5MB packet buffer, MAC and IP-based ACLs support, 1 fan, Voice VLAN, VLAN management, Guest VLAN, Weighted Round Robin (WRR), Auto VoIP, MAC lockdown, IPv6 management
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az, ITU-T H.323, IEEE 802.3bz
Processor: 800 MHz
RAM512 MB
Flash Memory256 MB
Status IndicatorsPower, fan, link/activity/speed
Interfaces4 x 1000Base-T RJ-45 ¦ 2 x 100/1000/2.5G/5G RJ-45 ¦ 2 x 100/1000/2.5G ¦ 1 x 100/1000/2.5G/5G/10GBase-T dedicated ¦ 1 x 10GBase-X SFP+ dedicated ¦ USB
Power DeviceInternal power supply
Rack Mounting KitIncluded
MTBF1,078,683 hours
Compliant StandardsEN 60950, UL 1950, ANSI C63.4, EN 60950-1:2006, IEC 60950-1:2005, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, EN 61000-3-2:2014, FCC CFR47 Part 15 A, CNS 13438 Class A, GB 4943.1-2011, EN 55032:2012, CNS 14336-1, IEC 950, ICES-003:2016 issue 6 Class A, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A
LocalisationEurope
Width32.8 cm
Depth16.9 cm
Height4.3 cm
Weight1.42 kg
Service & SupportLimited warranty - replacement - lifetime - response time: next business day ¦ Limited warranty - phone consulting - 90 days
Min Operating Temperature0 °C
Max Operating Temperature50 °C
Humidity Range Operating90% (non-condensing)
Min Storage Temperature-20 °C
Max Storage Temperature70 °C
