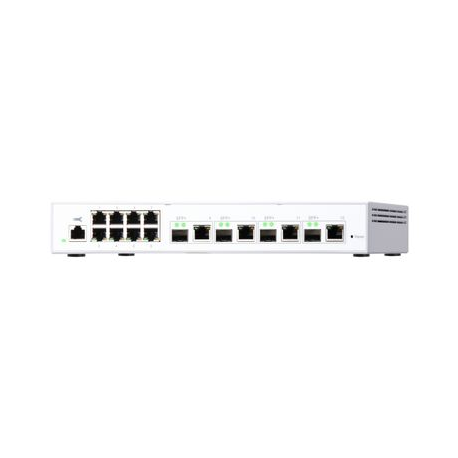

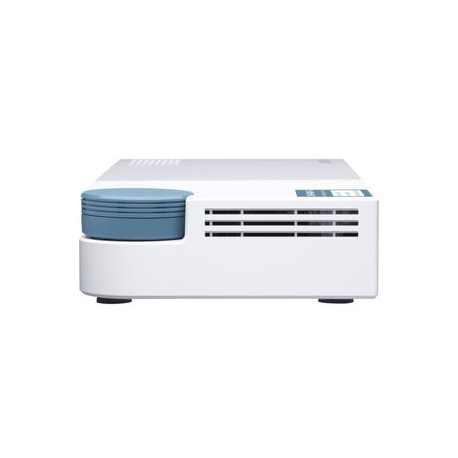

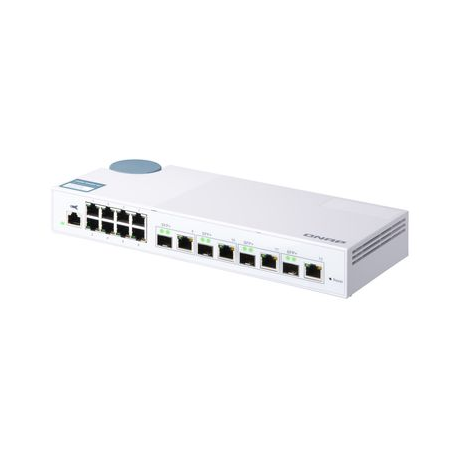

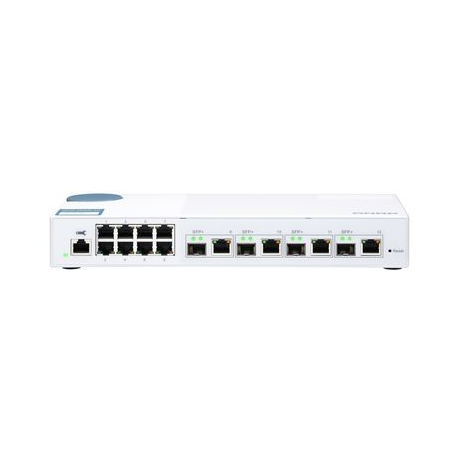

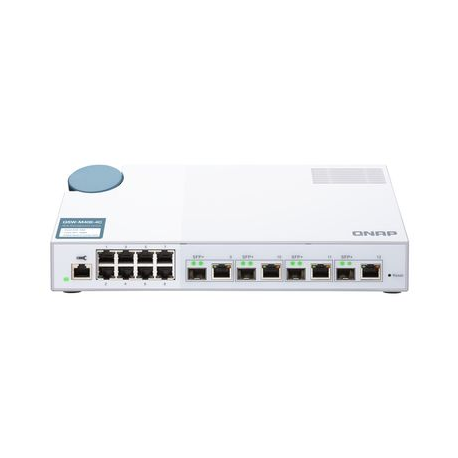

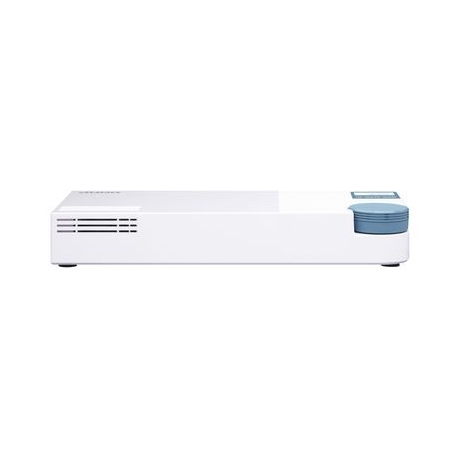

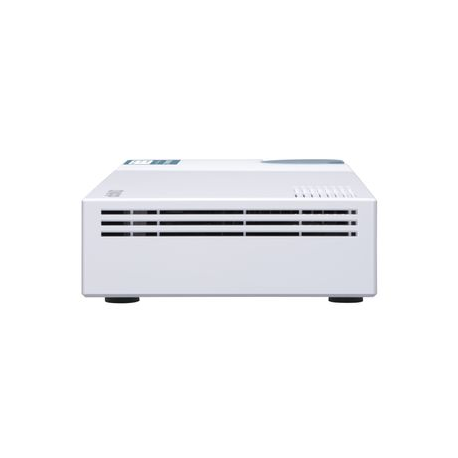

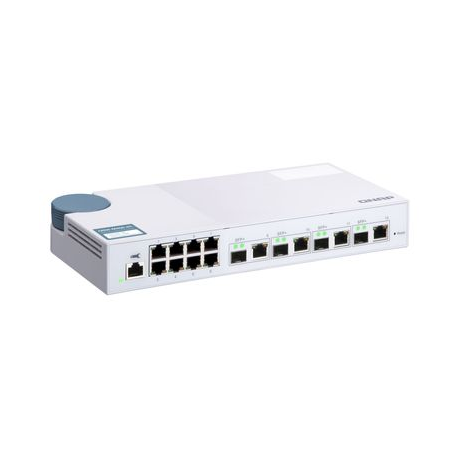

QNAP QSW-M408-4C - Switch - Managed - 8 x 10/100/1000 + 4 x combo 10 Gigabit SFP+ - desktop
images are for illustrative purposes only
New
Article: 1794420 Intrastat: 85176200 SKU: QSW-M408-4C
Pricing and stock details are available to registered users only.
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45 |
| Networking standards | IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support | Y |
| Copper ethernet cabling technology | 10BASE-T,10GBASE-T,1000BASE-LX,1000BASE-SX,1000BASE-T |
| Cable types supported | Cat5,Cat5e,Cat6 |
| Full duplex | Y |
| Flow control support | Y |
| Spanning tree protocol | Y |
| Auto-negotiation | Y |
| VLAN support | Y |
| Virtual LAN features | Port-based VLAN,Private VLAN |
| MAC address table | 16000 entries |
| Switching capacity | 96 Gbit/s |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| DHCP features | DHCP client |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| Rack mounting | N |
| Stackable | N |
| Product colour | White |
| Reset button | Y |
| LED indicators | Activity, Link, Power, Speed, Status |
| Number of fans | 1 fan(s) |
| Certification | CE, FCC, VCCI, BSMI |
| Noise level | 21 dB |
| Power supply included | Y |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 31.46 W |
| Power over Ethernet (PoE) | N |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 290 mm |
| Depth | 127 mm |
| Height | 42.5 mm |
| Weight | 1.15 kg |
| Cables included | AC |
| Quick start guide | Y |
