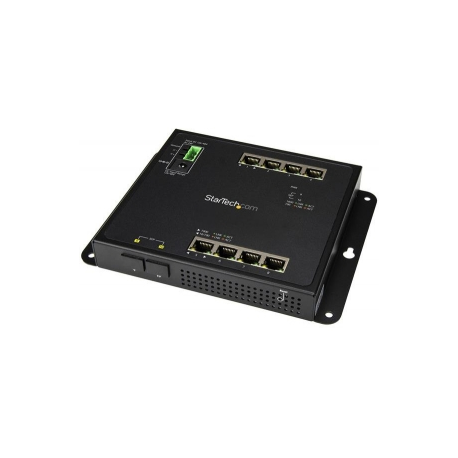

StarTech.com Industrial 8 Port Gigabit Ethernet Switch w / 2 MSA SFP Slots L2 Managed Network RJ45 LAN Layer2 Switch Din Rail Hardened IP-30 (IES101G2SFPW) - Switch - Managed - 8 x 10 / 100 / 1000 + 2 x SFP - wall-mountable - for P / N: GLCLHSMDSTTA, GLCSXMMDST, GLCSXMMDSTT, GLCTEST, MASFP1GBTXST, SFP1GELXST, SVA12M5NA
StarTech.com Industrial 8 Port Gigabit Ethernet Switch w / 2 MSA SFP Slots L2 Managed Network RJ45 LAN Layer2 Switch Din Rail Hardened IP-30 (IES101G2SFPW) - Switch - Managed - 8 x 10 / 100 / 1000 + 2 x SFP - wall-mountable - for P / N: GLCLHSMDSTTA, GLCSXMMDST, GLCSXMMDSTT, GLCTEST, MASFP1GBTXST, SFP1GELXST, SVA12M5NA
Manufacturer
•STARTECH
Reference
•IES101G2SFPW
Article
•1424540
Intrastat
•85176200
Shipping weight
•0.496 kg
Device Type
Switch - 10 ports - Managed
Enclosure Type
Wall-mountable
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 + 2 x SFP
Performance
Data transfer rate: 2 Gbps
Jumbo Frame Support
9KB
Routing Protocol
IGMP, MLD
Remote Management Protocol
HTTP
Features
Flow control, Layer 2 switching, IPv6 support, full duplex mode, wall mountable, Trivial File Transfer Protocol (TFTP) support, tagged VLAN, 6KV ESD Protector, 802.1x authentication, Internet Control Message Protocol (ICMP), 6KV EFT protector
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Status Indicators
Power
Interfaces
8 x 1000Base-TX RJ-45 ¦ 2 x 1000Base-TX SFP ¦ 1 x terminal block
Colour
Black
Included Accessories
4 magnets, DIN-rail mounting kit, 4 x screws, 2 SFP dust caps, attaching pins, locking pins, 4 washers, 8 RJ45 dust caps
MTBF
>100,000 hours
Compliant Standards
FCC, RoHS, WEEE, IP30, RCM
Localisation
Australia, Japan, New Zealand, United Kingdom, Europe
Width
14.8 cm
Depth
13.4 cm
Height
2.5 cm
Weight
496 g
Service & Support
Limited warranty - 2 years
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
5 - 95% (non-condensing)
Designed For
P/N: 3CSFP91ST, 453154B21ST, EXSFP1GELXST, EXSFP1GESXST, EXSFP1GETST, GLCEXSMDST, GLCLHSM10PST, GLCLHSMD10ST, GLCLHSMDST, GLCLHSMDSTTA, GLCLXSMRGDST, GLCSXMM10PST, GLCSXMMDST, GLCSXMMDSTT, GLCSXMMRGDST, GLCT10PKST, GLCTEST, GLCTST, GLCTSTTAA, GLCZXSMRGDST, J4858C10PKST, J4858CST, J4859C10PKST, J4859CST, J8177C10PKST, J8177CST, JD089BST, JD118BST, JD119BST, MASFP1GBLX10, MASFP1GBSXST, MASFP1GBTXST, SFP1GELXST, SFPC1110, SFPG1320C, SFPGESST, SFPGLCLHSMST, SFPGLCSXMMST, SFPSXMM, SVA12M2NEUA, SVA12M5NA
