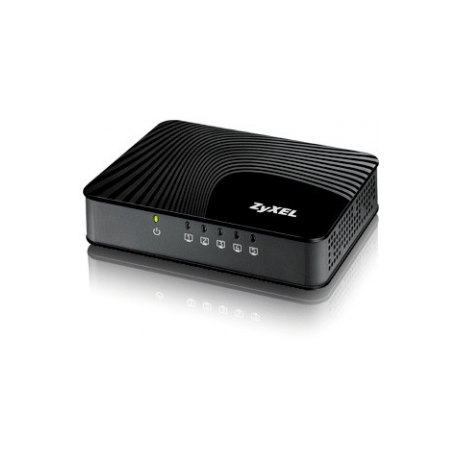

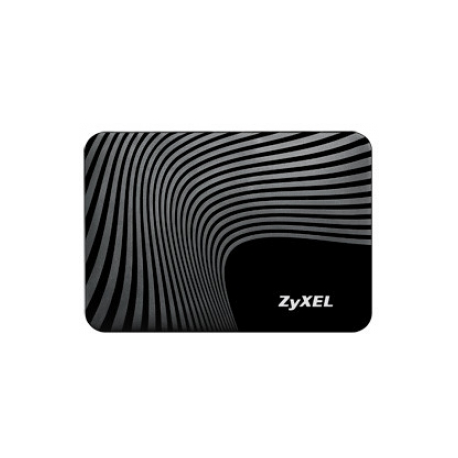

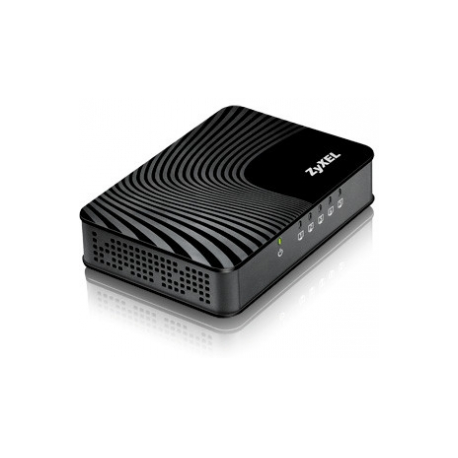

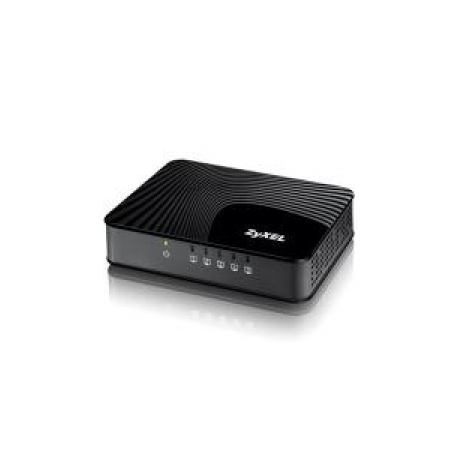

ZyXEL GS-105S v2 - Switch - unmanaged - 5 x 10 / 100 / 1000 - desktop
images are for illustrative purposes only
New
Article: 1189612 Intrastat: 85176200 SKU: GS-105SV2-EU0101F
Pricing and stock details are available to registered users only.
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 |
| Performance | Switching fabric bandwidth: 10 Gbps |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, store and forward, half duplex mode, full duplex mode, Quality of Service (QoS), 128KB packet buffer, Energy Efficient Ethernet |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az |
| Status Indicators | Power, link/activity |

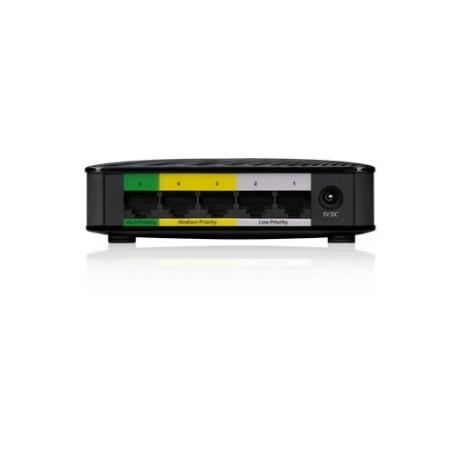

| Interfaces | 1 x 1000Base-T RJ-45 high priority ¦ 2 x 1000Base-T RJ-45 medium priority ¦ 2 x 1000Base-T RJ-45 low priority |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Electric Current Required | 1 A |
| Power Consumption Operational | 2.5 Watt |
| Compliant Standards | Plug and Play, FCC Class B certified, BSMI |
| Localisation | Europe |
| Width | 10.6 cm |
| Depth | 7.5 cm |
| Height | 3.2 cm |
| Weight | 105 g |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
