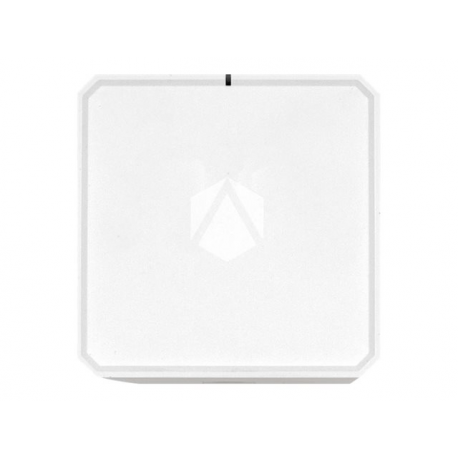

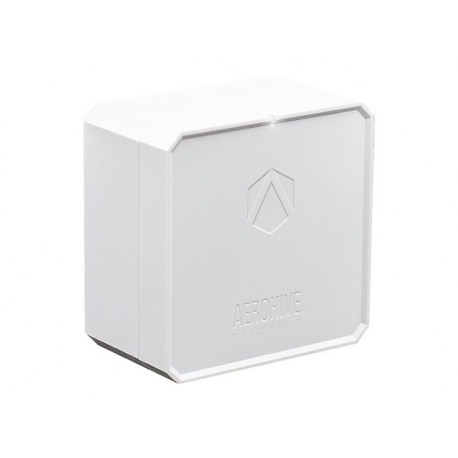

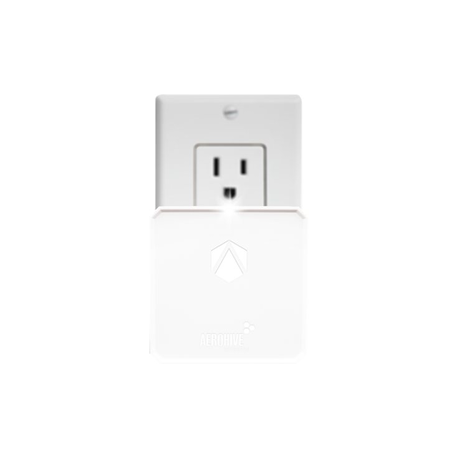

Aerohive Atom AP30 - Radio access point - with HiveCare Community Support - Bluetooth 4.0 - Bluetooth, Wi-Fi 5 - 2.4 GHz, 5 GHz

  • EXTREME ATOM AP30 ACCESS/MESH POINT, DUAL RADIO WIFI 5 WITH CLIENT MODE SUPPORT, 1GE FOR BACKHAUL/BRIDGE, BLE, INTEGRATED TYPE C
  • EXTREME ATOM AP30 ACCESS/MESH POINT, DUAL RADIO WIFI 5 WITH CLIENT MODE SUPPORT, 1GE FOR BACKHAUL/BRIDGE, BLE, INTEGRATED TYPE C
  • EXTREME ATOM AP30 ACCESS/MESH POINT, DUAL RADIO WIFI 5 WITH CLIENT MODE SUPPORT, 1GE FOR BACKHAUL/BRIDGE, BLE, INTEGRATED TYPE C
images are for illustrative purposes only

New

Article: 1734082 Intrastat: 85176930 SKU: AH-ATOM-CE-EU
Pricing and stock details are available to registered users only.
 Add to compare
Device TypeRadio access point
Bundled ServicesHiveCare Community Support
Width7.2 cm
Depth6.78 cm
Height7.2 cm
Weight230 g
LocalisationEurope
Form FactorExternal
Connectivity TechnologyWireless
Line Coding Format256 QAM, OFDM
Data Link ProtocolIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac
Spread Spectrum MethodOFDM, DSSS
Frequency Band2.4 GHz, 5 GHz
FeaturesVPN support, iBeacon technology, Wireless Mesh support, 2x2 MIMO technology
Compliant StandardsIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac
AntennaInternal
Antenna Qty5
Internet of Things (IoT) CompatibleYes
Communications TypeProduct-to-product
Communications TechnologyBluetooth Low Energy (LE)
Interfaces1 x 1000Base-T - RJ-45
MTBF662,000 hours
Compliant StandardsUL 2043
Power DeviceInternal power supply
Voltage RequiredAC 240 V
Software IncludedAerohive HiveManager Connect
Min Operating Temperature0 °C
Max Operating Temperature35 °C
Humidity Range Operating95% (non-condensing)
