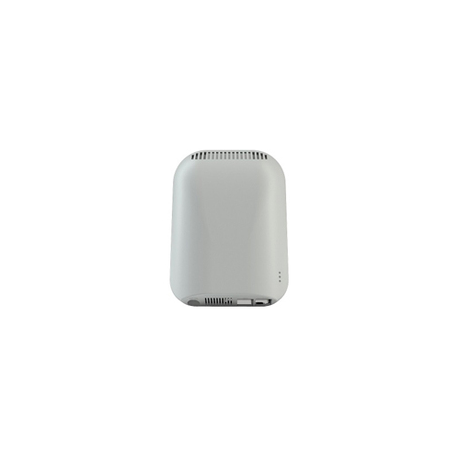

Extreme Networks ExtremeWireless WiNG 7612 Indoor Access Point - Radio access point - Bluetooth, Wi-Fi 5 - 2.4 GHz, 5 GHz - wall mountable

  • AP-7612-680B30-WR
  • AP-7612-680B30-WR
  • AP-7612-680B30-WR
  • AP-7612-680B30-WR
images are for illustrative purposes only

New

Article: 1491830 Intrastat: 85176930 SKU: 37102
Pricing and stock details are available to registered users only.
 Add to compare
Device TypeRadio access point
Width16.5 cm
Depth3 cm
Height11.2 cm
Weight450 g
LocalisationRest of World
Form FactorWall mountable
Connectivity TechnologyWireless
Data Transfer Rate866.7 Mbps
Line Coding Format256 QAM, OFDM
Data Link ProtocolBluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Spread Spectrum MethodOFDM, DSSS
Network / Transport ProtocolIPSec, PPPoE, BOOTP, DHCP, L2TPv3, DDNS
Frequency Band2.4 GHz, 5 GHz
Status IndicatorsStatus
FeaturesFirewall protection, NAT support, BOOTP support, dynamic DNS server, DiffServ support, Intrusion Detection System (IDS), IP address filtering, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), DHCP server, plastic housing, 2T2R MIMO technology, LLDP support, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), DHCP client, Space Time Blocking Code (STBC), Wireless Intrusion Prevention System (WIPS), Captive Portal, Type of Service (ToS), MU-MIMO technology, Unscheduled Automatic Power Save Delivery (U-APSD), packet aggregation A-MPDU, packet aggregation A-MSDU, VPN client, Hotspot Access Point Capability, guest access
Encryption AlgorithmWPA, WPA2
Authentication MethodRADIUS
Compliant StandardsIEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11ac Wave 2
AntennaInternal
Antenna Qty5
Interfaces1 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (PoE) - RJ-45
Included AccessoriesWall mounting kit
Compliant StandardsUL, UL 2043, FCC, RoHS, IEC 60950-1, EN 60950-1, TELEC, cUL No.60950-1
Power Over Ethernet (PoE) SupportedPoE
Power DeviceExternal power adapter
Min Operating Temperature0 °C
Max Operating Temperature40 °C
Humidity Range Operating85% (non-condensing)
