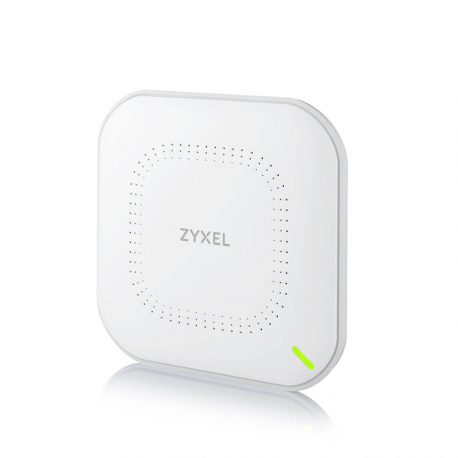

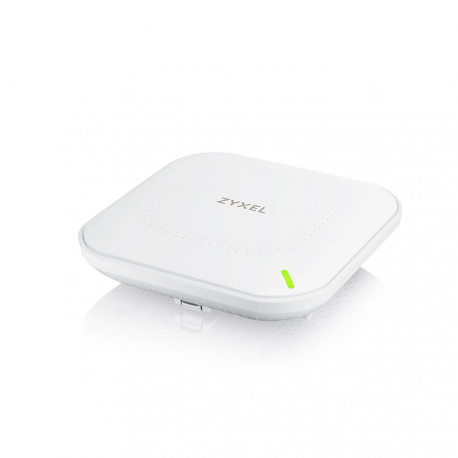

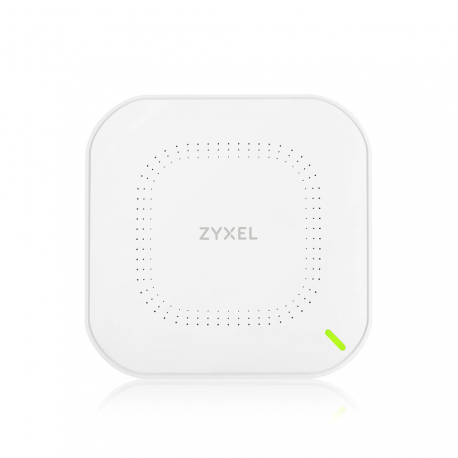

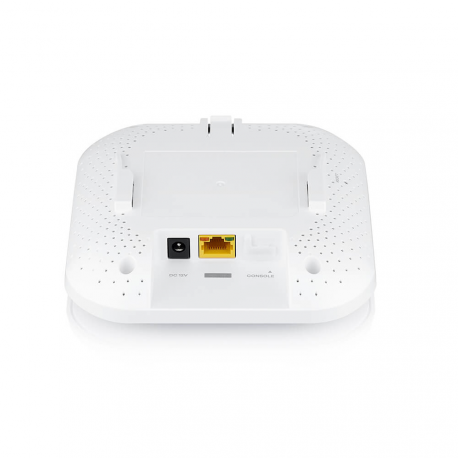

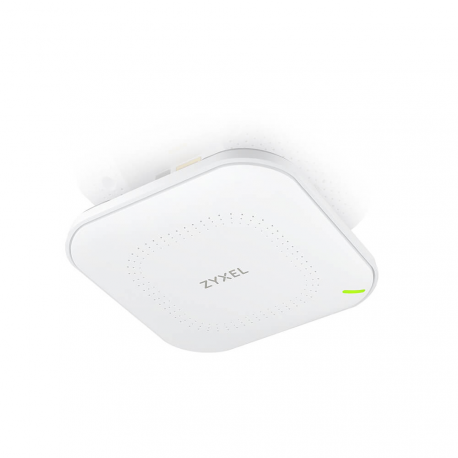

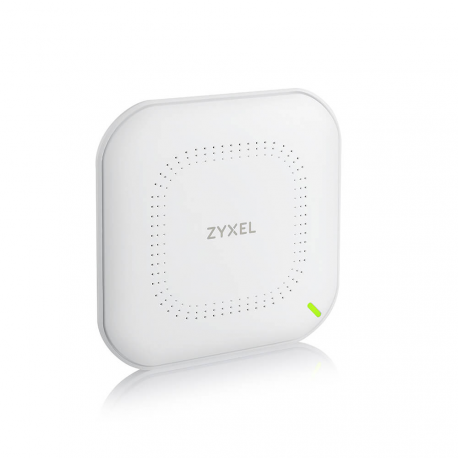

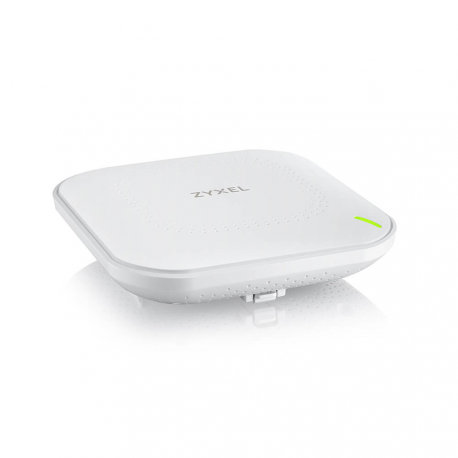

Zyxel NWA1123ACv3 - Radio access point - 802.11ac Wave 2 - Wi-Fi - 2.4 GHz, 5 GHz - AC 100 / 230 V - in-ceiling

  • ZYXEL NWA1123-ACV3 802.11AC WAVE 2 DUAL-RADIO CEILING MOUNT POE ACCESS POINT
  • ZYXEL NWA1123-ACV3 802.11AC WAVE 2 DUAL-RADIO CEILING MOUNT POE ACCESS POINT
  • ZYXEL NWA1123-ACV3 802.11AC WAVE 2 DUAL-RADIO CEILING MOUNT POE ACCESS POINT
  • ZYXEL NWA1123-ACV3 802.11AC WAVE 2 DUAL-RADIO CEILING MOUNT POE ACCESS POINT
  • ZYXEL NWA1123-ACV3 802.11AC WAVE 2 DUAL-RADIO CEILING MOUNT POE ACCESS POINT
  • ZYXEL NWA1123-ACV3 802.11AC WAVE 2 DUAL-RADIO CEILING MOUNT POE ACCESS POINT
  • ZYXEL NWA1123-ACV3 802.11AC WAVE 2 DUAL-RADIO CEILING MOUNT POE ACCESS POINT
  • ZYXEL NWA1123-ACV3 802.11AC WAVE 2 DUAL-RADIO CEILING MOUNT POE ACCESS POINT
images are for illustrative purposes only

New

Article: 1769563 Intrastat: 85176930 SKU: NWA1123ACV3-EU0102F
Pricing and stock details are available to registered users only.
 Add to compare
Device TypeRadio access point
Width14 cm
Depth14 cm
Height3.75 cm
Weight249 g
Form FactorIn-ceiling
Connectivity TechnologyWireless
Data Transfer Rate1.2 Gbps
Data Link ProtocolIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Remote Management ProtocolSNMP, CLI
Frequency Band2.4 GHz, 5 GHz
PerformanceMaximum throughput (2.4 GHz): 300 Mbps ¦ Maximum throughput (5 GHz): 866 Mbps
FeaturesLoad balancing, VLAN support, MAC address filtering, IPv6 support, Wireless Distribution System (WDS) support, Wi-Fi Multimedia (WMM) support, cloud managed, DiffServ Code Point (DSCP) support, Unscheduled Automatic Power Save Delivery (U-APSD), band steering, dual band, Fast Roaming, PMK Caching, Dynamic Channel Selection (DCS), 2x2 MU-MIMO technology, Wireless Mesh support
Encryption AlgorithmWPA, WPA2-PSK, WPA2-Enterprise, WEP, WPA3
Authentication MethodRADIUS, Extensible Authentication Protocol (EAP)
Compliant StandardsIEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ac Wave 2
AntennaInternal
Interfaces1 x 1000Base-T (PoE) - RJ-45 - 11 W
Included AccessoriesCeiling mounting plate
MTBF630,794 hours
Compliant StandardsEN 61000-3-2, EN55022, EN 61000-3-3, EN55024, FCC Part 15 B, FCC Part 15 C, IEC 60950-1, EN 60950-1, FCC Part 15 E, BSMI CNS 13438, EN 60601-1-2, BSMI CNS 14336-1, EN 301 489-1, LP0002, ETSI EN 300 328, EN 301 893, EN 301 489-17
Power Over Ethernet (PoE) SupportedPoE
Power DeviceExternal power adapter
Voltage RequiredAC 100/230 V (50/60 Hz)
Shipping Width24 cm
Shipping Depth15.5 cm
Shipping Height6 cm
Shipping Weight560 g
Min Operating Temperature0 °C
Max Operating Temperature50 °C
Humidity Range Operating10 - 90% (non-condensing)
