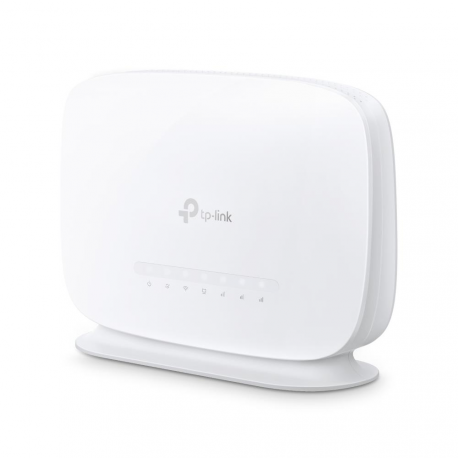

TP-Link Archer MR505 V1 - Wireless router - WWAN 3-port switch - 1GbE - Wi-Fi 5 - Dual Band - 4G, 3G
New
Article: 3460014 Intrastat: 85176930 SKU: ARCHERMR505
Pricing and stock details are available to registered users only.
| Device Type | Wireless router - 3-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 300 Mbps ¦ Maximum data rate (5 GHz): 867 Mbps |
| Capacity | Connected devices: 64 |
| Network / Transport Protocol | IPv4, IPv6, PPPoE, PPTP, L2TP, DDNS, DHCP |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | DHCP |
| Encryption Algorithm | 64-bit WEP, 128-bit WEP, WPA-Personal, WPA2-Personal, WPA3-Personal, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise |
| Wi-Fi Rating | AC1200 |
| Features | MU-MIMO technology, EasyMesh, beamforming technology, WPS button, reset button, router mode, wireless radio enable/disable, Wireless Scheduler, WMM support, WAN failover, QoS, DoS attack prevention, SPIF, IPMB, ACL support, Service Filtering, dynamic IP mode, DHCP server, DHCP client, Address Reservation, ALG support, virtual server support, port triggering, DMZ support, VPN Server, URL filtering, Guest Network, No-IP DDNS, port forwarding, firmware upgradable |
| Compliant Standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, UPnP, Plug and Play, RoHS |
| Status Indicators | Status |
| Type | Wireless cellular modem |
| Mobile Communication Protocol | LTE Advanced Cat 6, FDD LTE, TDD LTE, DC-HSPA+, HSPA, UMTS |
| Generation | 4G, 3G |
| Cellular Band | LTE B1, LTE B3, LTE B5, LTE B7, LTE B8, LTE B20, LTE B28, LTE B38, LTE B40, LTE B41, UMTS B1, UMTS B3, UMTS B5, UMTS B8, HSPA B1, HSPA B3, HSPA B5, HSPA B8, DC-HSPA+ B1, DC-HSPA+ B3, DC-HSPA+ B5, DC-HSPA+ B8 |
| Max Transfer Rate | 300 Mbps |
| Interfaces | WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Antenna: 2 x SMA |
| Expansion Slots | 1 (total) / 1 (free) x Nano-SIM |
| Aerial | External detachable and internal |
| Antenna Qty | 6 |
| Configuration Details | 2 external detachable LTE aerials, 2 internal LTE aerials, 2 internal WiFi aerials |
| Power Device | External power adapter |
| Cables Included | 1 x network cable |
| OS Required | Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Novell NetWare, UNIX, Linux |
| Width | 21.2 cm |
| Depth | 5.7 cm |
| Height | 15.75 cm |
| Service & Support | Limited warranty - 2 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
