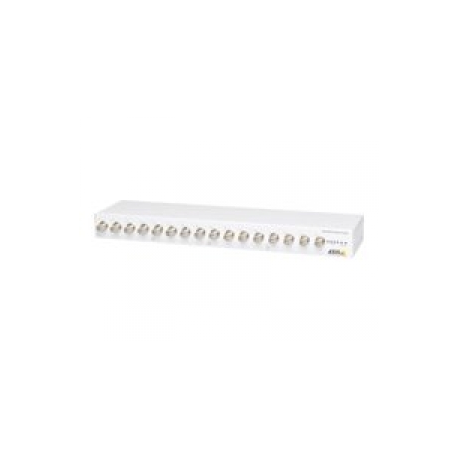

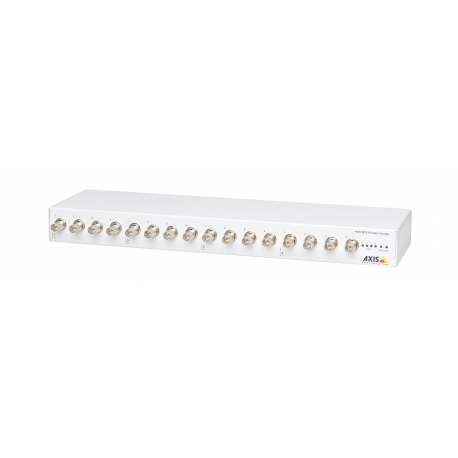

AXIS M7016 Video Encoder - Video server - 16 channels - rack-mountable

  • Axis M7016 VIDEO ENCODER
  • Axis M7016 VIDEO ENCODER
  • Axis M7016 VIDEO ENCODER
images are for illustrative purposes only

New

Article: 1021348 Intrastat: 84716070 SKU: 0541-002
Pricing and stock details are available to registered users only.
 Add to compare
AXIS M7016 Video Encoder - Video server - 16 channels - rack-mountable
Device TypeVideo server - rack-mountable
Video Channels16
TV SystemNTSC/PAL
Image Resolution176x120 (NTSC), 720x480 (NTSC), 720x576 (PAL), 176x144 (PAL)
Compression FormatMJPEG, H.264
Package ContentManual, external power adapter, software, video server, mounting kit
Software Included (Y)Drivers & Utilities
Country KitsEurope
Compliant StandardsC-Tick, EN 61000-3-2, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC Part 15 B, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, KCC Class B, VCCI Class B, KN24
Warranty1 year
Frame Rate25 fps (PAL), 30 fps (NTSC)
RAM2 GB
Flash Memory512 MB
FeaturesVideo motion detector, Pan/Tilt/Zoom support, 4 x microSDXC memory card slot
DDNS SupportYes
Web ServerYes
Network InterfacesEthernet 10Base-T/100Base-TX
Supported ProtocolsDDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, QOS, CIFS
FeaturesWall mountable, ONVIF support
Video Input PortsBNC x 16
Camera Control Interface (PTZ)RS-422/485 x4
Network Port10/100/1000Base-T
Width44 cm
Depth11.4 cm
Height4.4 cm
Weight1.85 kg
Min Operating Temperature0 °C
Max Operating Temperature50 °C
Humidity Range Operating20 - 80% (non-condensing)
